SSF-RG
Service Multi-Deck

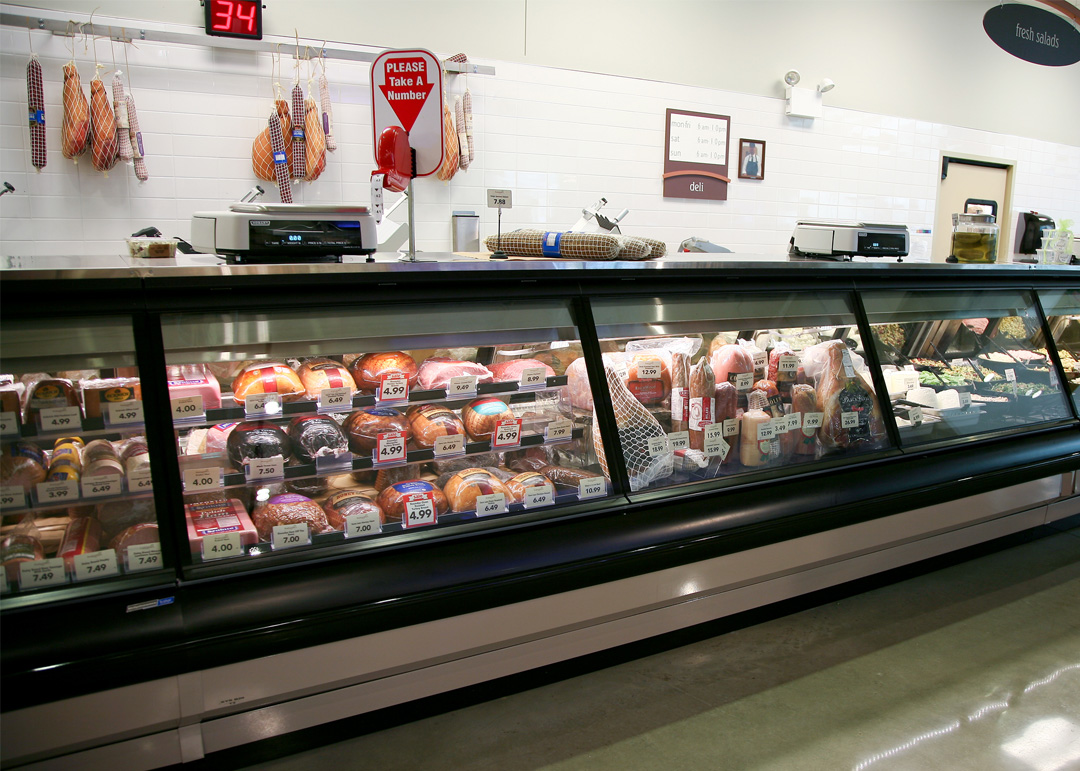

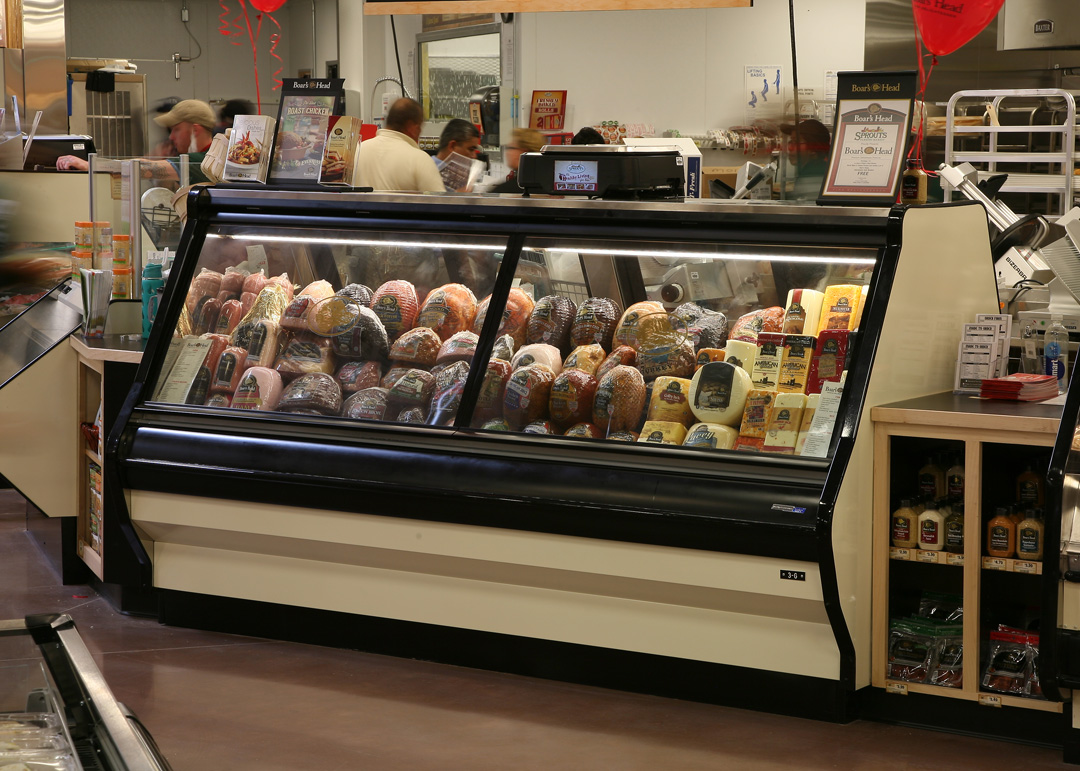

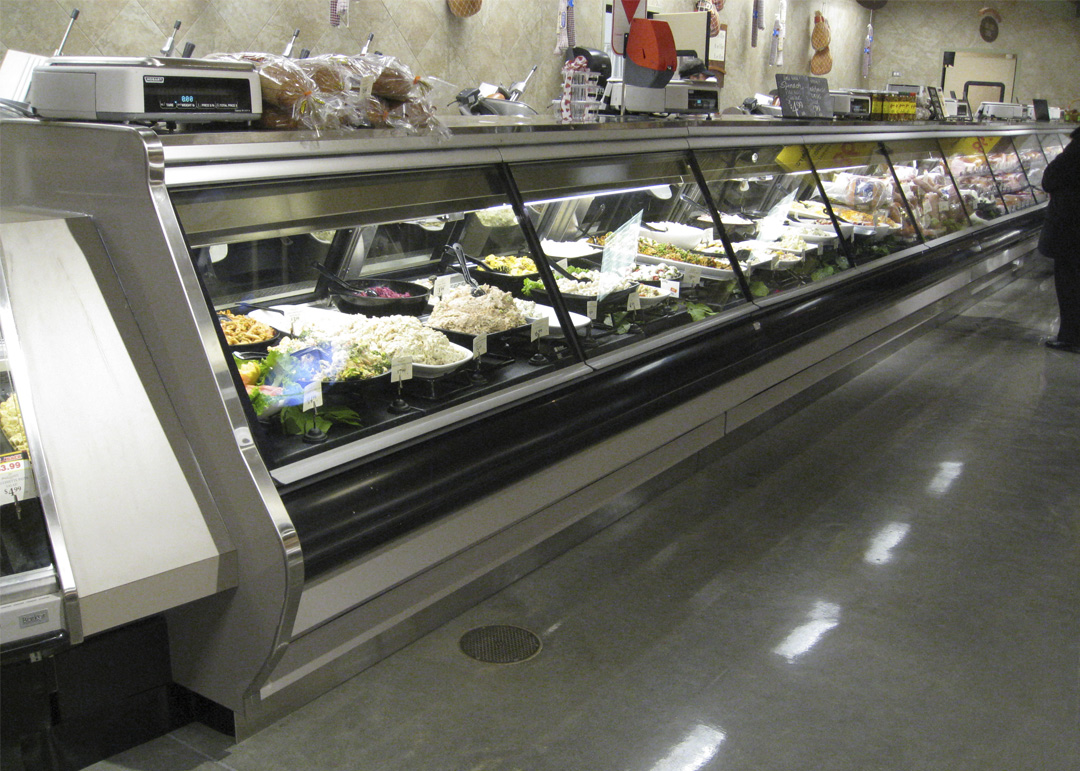

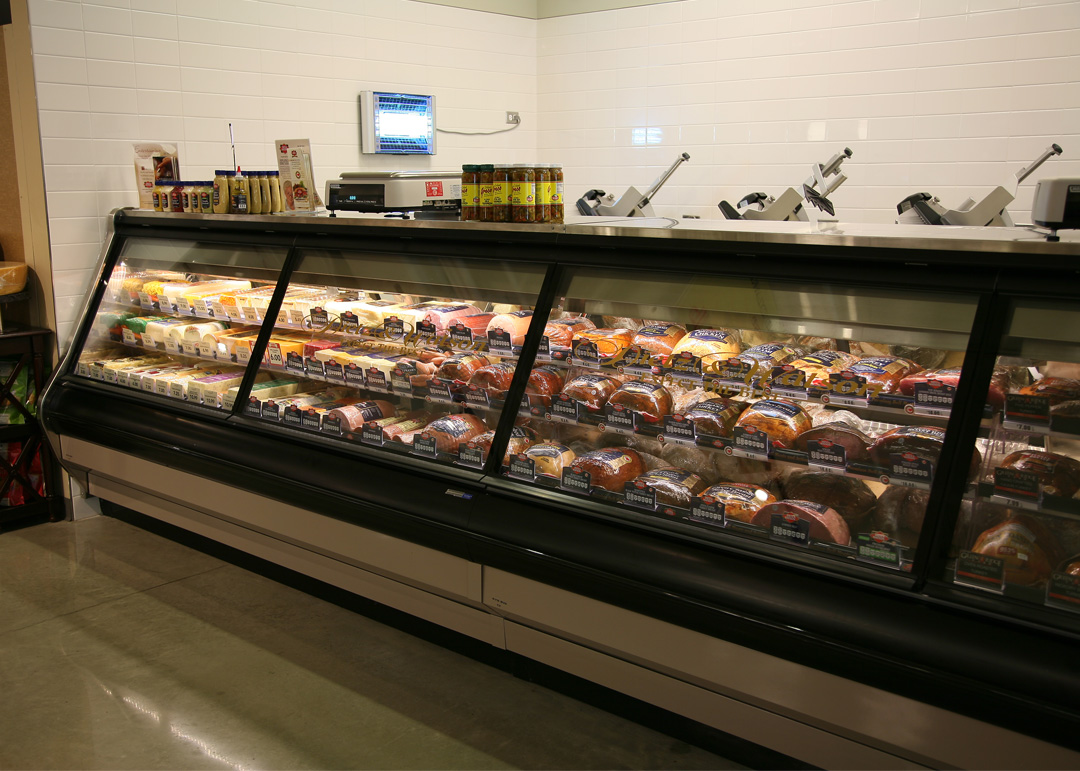

Hillphoenix SSF-RG Multi-Deck, Refrigerated, Gravity Coil Display. Designed for deli applications. Flat glass profile with one row of shelves available. Front of case lines up with the SSF-R, SSFM-RG, SSFS-RG for a continuous department look. Available in several case lengths and heights.
Hillphoenix SSF-RG Multi-Deck, Refrigerated, Gravity Coil Display. Designed for deli applications. Flat glass profile with one row of shelves available. Front of case lines up with the SSF-R, SSFM-RG, SSFS-RG for a continuous department look. Available in several case lengths and heights.
Please consult Hillphoenix Engineering Reference Manual for dimensions, plan views and technical specifications. Specifications subject to change without notice. Designed for optimal performance in store environments where temperature and humidity do not exceed 75°F and 55% R.H. Certified to UL 471, ANSI/NSF Standard 2,7,51 and CAN/CSA C22.2.
Service Multi-Deck
Hillphoenix SSF-RG Multi-Deck, Refrigerated, Gravity Coil Display. Designed for deli applications. Flat glass profile with one row of shelves available. Front of case lines up with the SSF-R, SSFM-RG, SSFS-RG for a continuous department look. Available in several case lengths and heights.
Hillphoenix SSF-RG Multi-Deck, Refrigerated, Gravity Coil Display. Designed for deli applications. Flat glass profile with one row of shelves available. Front of case lines up with the SSF-R, SSFM-RG, SSFS-RG for a continuous department look. Available in several case lengths and heights.
Features & Benefits
- C-frame with bullet leg construction.
- Standard 50-1/2”H with 7”H base frame height.
- Exterior: Painted metal, including lower front panel above base.
- Stainless steel base trim, front and sides.
- Stainless steel exterior trim.
- Painted metal outside back and rear base trim.
- Stainless steel top sill.
- Clear rear load doors with black frames.
- 5/8” thermopane, insulated regular-glare flat lift front glass.
- Gray glass gasket, wipe and glass handle.
- Strainless steel interior and trim.
- Black plastic coil covers with fixed black wire rack.
- LED canopy lighting.
- Rear electrical box mounted behind the lower panel.
- Gravity with blower assist deli or meat model.
- Solar digital thermometer.
- Energy efficient fans.
- Remote DX refrigeration package.
Available Options
- Available lengths: 4’, 6’, 8’ and 12’.
- Case heights available: 52-1/2” and 54-1/2”.
- Alternate flexible base heights include: 9” and 11”H.
- Extruded polymer base trim.
- Painted metal base trim.
- Master with nose bumper.
- Cart bumper (for flat front profile).
- Exterior stainless steel finish.
- Solid surface or stone case top.
- Integrated case top scale stand.
- Adjustable scale stand with ISO outlet.
- (1)row each 10” and 12” stainless metal shelving with PTM.
- LED undershelf Lighting
- White plastic coil covers.
- Adjustable wire racks.
- Heavy-duty stainless steel deck.
- Reflective rear load doors.
- Black glass gasket, wipe and glass handle.
- Rear flip-up work boards.
- CON outlets.
- Solid interior mirror polish stainless steel, thermal glass divider or glass ends.
- Remote glycol or CO2 refrigeration packages.
Attributes
- Alternate Heights: 52-1/2" and 54-1/2"
- Case Depth / Footprint: 45-3/8"
- Case Height Standard: 50-1/2"
- Case Length: 4’, 6’, 8’, 10', and 12
- Case Temp: Medium-Temp
- Case Type: Multi-Deck, Rear-Load, Remote
- Department: Deli
- Door Type: -
- Interior Depth: 31-7/16"
- Interior Height: 19-9/16"
- Other Models: Deli-meat, cheese and salads. Also consider the SSF-R, SSA-R, SSAW-R, SSA-RG, SSM-R, and S2SG-R, SMD-RG and GMD-RG.
- Product Type: Specialty Cases
- Refrigerated Volume: -
- Remote / Self-Contained: Remote
- Retail Types: Food Service, Mass Merchandise, Membership & Warehouse, Supermarket
