SSF-R
Service Multi-Deck

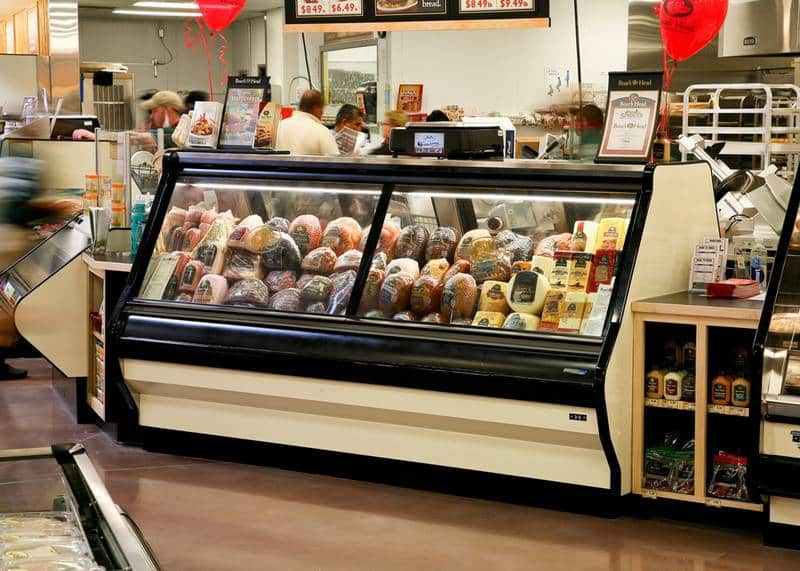

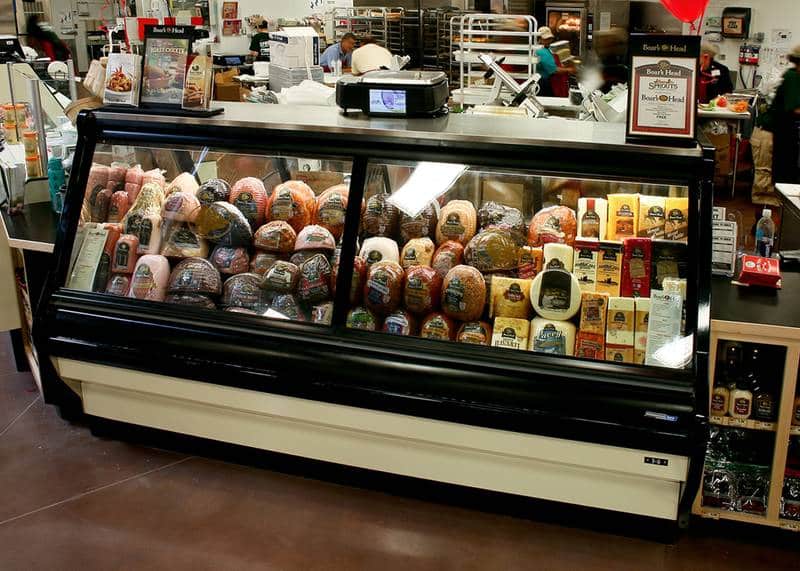

Hillphoenix SSF-R Multi-Deck, Refrigerated Display. Designed for deli applications. Flat glass profile with up to two rows of shelves. The front of the case lines up with the SSF-RG, SSFS-RG, and SSFM-RG for a continuous department look. Available in several case lengths and heights.
Hillphoenix SSF-R Multi-Deck, Refrigerated Display. Designed for deli applications. Flat glass profile with up to two rows of shelves. The front of the case lines up with the SSF-RG, SSFS-RG, and SSFM-RG for a continuous department look. Available in several case lengths and heights.
Please consult Hillphoenix Engineering Reference Manual for dimensions, plan views and technical specifications. Specifications subject to change without notice. Designed for optimal performance in store environments where temperature and humidity do not exceed 75°F and 55% R.H. Certified to UL 471, ANSI/NSF Standard 2,7,51 and CAN/CSA C22.2.
Service Multi-Deck
Hillphoenix SSF-R Multi-Deck, Refrigerated Display. Designed for deli applications. Flat glass profile with up to two rows of shelves. The front of the case lines up with the SSF-RG, SSFS-RG, and SSFM-RG for a continuous department look. Available in several case lengths and heights.
Hillphoenix SSF-R Multi-Deck, Refrigerated Display. Designed for deli applications. Flat glass profile with up to two rows of shelves. The front of the case lines up with the SSF-RG, SSFS-RG, and SSFM-RG for a continuous department look. Available in several case lengths and heights.
Features & Benefits
- C-frame with bullet leg construction.

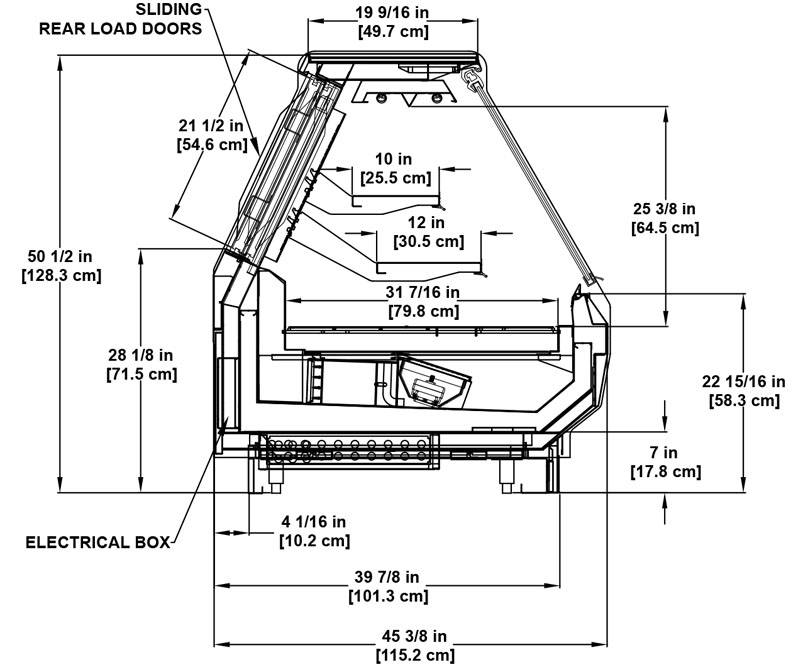

- Case dimensions: 50-1/2” H & 45-3/8” D.
- 7” H stainless steel toekick, front and sides.
- Painted metal exterior.
- Stainless steel base trim, front, & sides.
- Stainless steel exterior trim.
- Painted metal outside back and rear trim.
- Stainless steel case top.
- Clear rear load doors with black frames.
- Thermopane, insulated (5/8” T) regular glare flat glass with lift-up glass hardware.
- Gray glass gasket, wipe, and glass handle.
- Painted black metal interior and trim.
- Black plastic coil covers with a fixed black wire rack.
- Clearvoyant® LED dual top lighting.
- Energy efficient fans.
- Solar digital thermometer.
- Rear electrical raceway location.
Available Options
- Available lengths: 4’, 6’, 8’, 10’, and 12’.
- Case heights available: 52-1/2” and 54-1/2”.
- Alternate toekick heights: 9” and 11”.
- Profile options: Flat front or master with nose bumper.
- Pedestal base or false pedestal base.
- Exterior finishes: exterior grade laminate or stainless steel.
- Interior finishes: painted white or stainless steel.
- Solid surface or stone case top.
- Front glass masking.
- Black glass gasket, wipe, and glass handle.
- (1) row of 10” D and 12” D painted metal shelves with PTM.
- LED undershelf lighting.
- Adjustable wire rack.
- Heavy-duty stainless steel deck – no coil cover.
- White plastic coil covers.
- Slant riser or Z step.
- Integrated case top scale stand or adjustable scale stand.
- Rear flip-up work boards (fixed or flip-up) in poly, stainless steel, or solid surface.
- Paper cutters.
- ISO outlet/CON outlets (specify vertical or horizontal placement on rear).
- Reflective rear load doors.
- Gray rear load door frames.
- Solid or full-view end panels with mirror-polished, stainless steel interior.
- Thermal divider.
- Cart bumper mounted on the front panel of the case.
- Cart bumper added to end panels.
- Remote glycol or CO2 refrigeration packages.
Attributes
- Alternate Heights: 52-1/2" and 54-1/2"
- Case Depth / Footprint: 45-3/8"
- Case Height Standard: 50-1/2"
- Case Length: 4’, 6’, 8’, 10', and 12
- Case Temp: Medium-Temp
- Case Type: Multi-Deck, Rear-Load, Remote, Service
- Department: Deli
- Door Type: -
- Interior Depth: 31-7/16"
- Interior Height: 25-3/8"
- Other Models: Deli-meat, cheese and salads. Also consider the SSF-RG, SSA-R, SSAW-R, SSA-RG, SSM-R, and S2SG-R, SMD-RG and GMD-RG.
- Product Type: Specialty Cases
- Refrigerated Volume: -
- Remote / Self-Contained: Remote
- Retail Types: Food Service, Mass Merchandise, Membership & Warehouse, Supermarket
