SSD-R-LT GELATO

SSD-R-LT GELATO

Service Single-Deck

Hillphoenix SSD-R-LT Gelato, Single-Deck, Service, Low-Temp Display. Designed for frozen gelato applications. Curved glass profile. Available in several lengths. Lines up with the SSD-R in the 48-1/2" optional height.

Hillphoenix SSD-R-LT Gelato, Single-Deck, Service, Low-Temp Display. Designed for frozen gelato applications. Curved glass profile. Available in several lengths. Lines up with the SSD-R in the 48-1/2" optional height.

Less

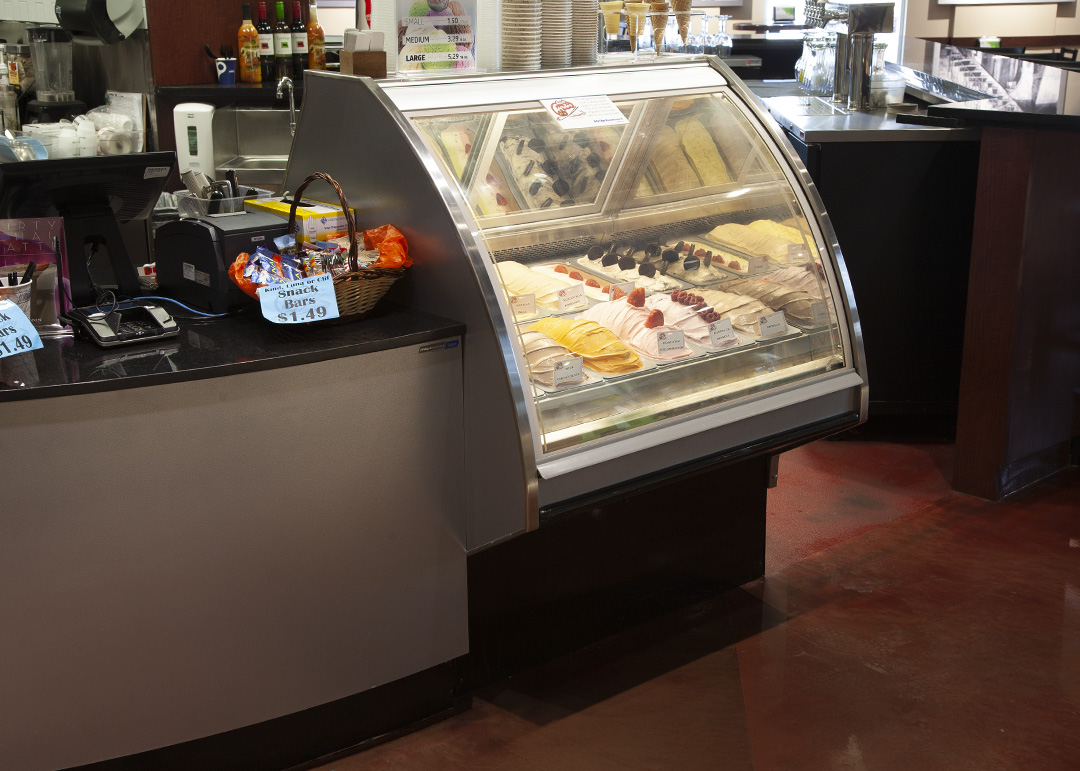

  • SSD-R-LT-Gelato-display-case-photo-3914.jpg

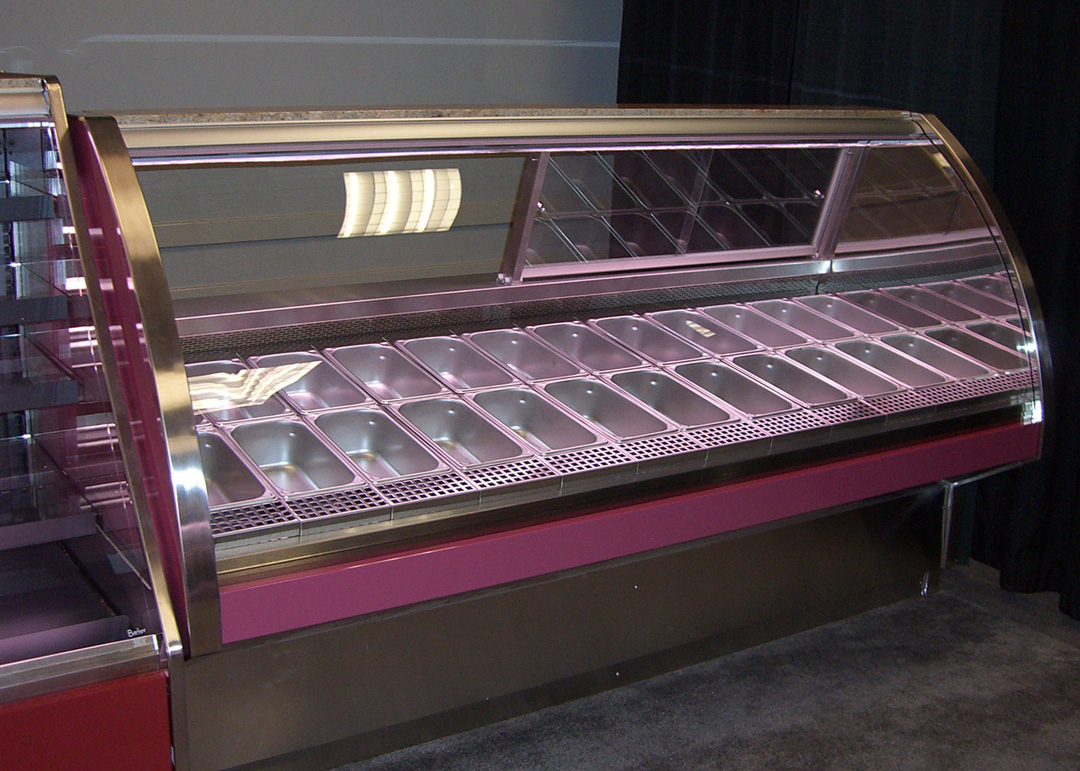

  • SSD-R-LT-Gelato-display-case-photo-0006.jpg

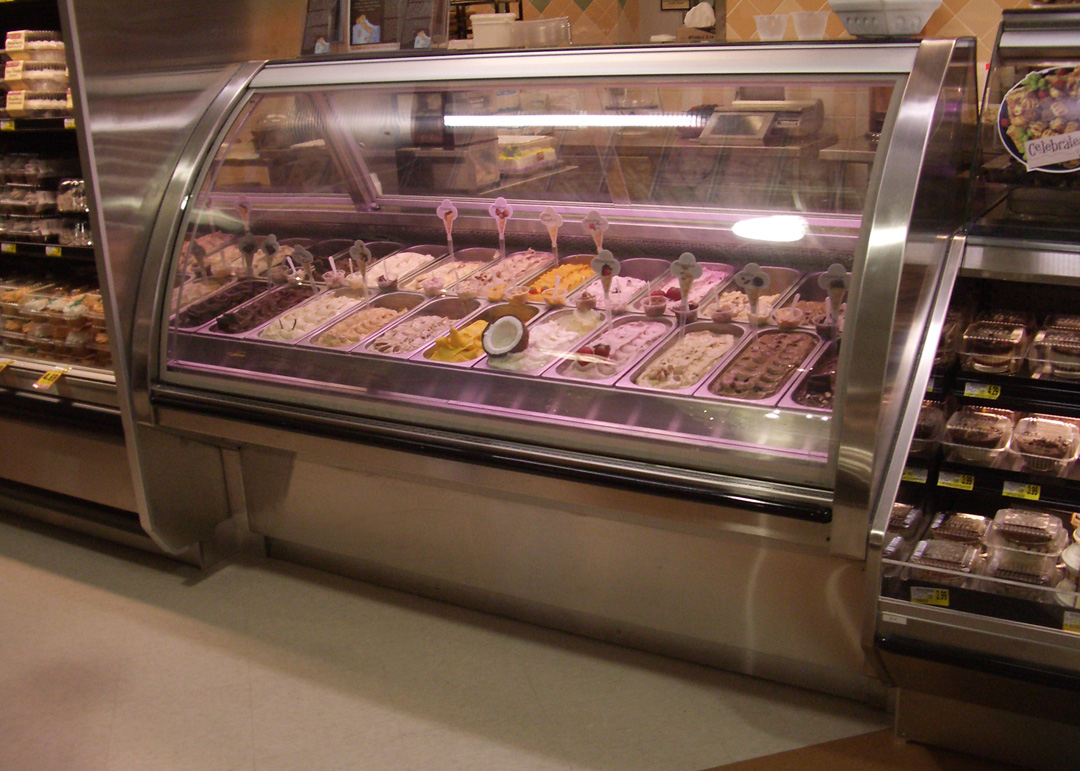

  • SSD-R-LT-Gelato-display-case-photo-0006-2.jpg

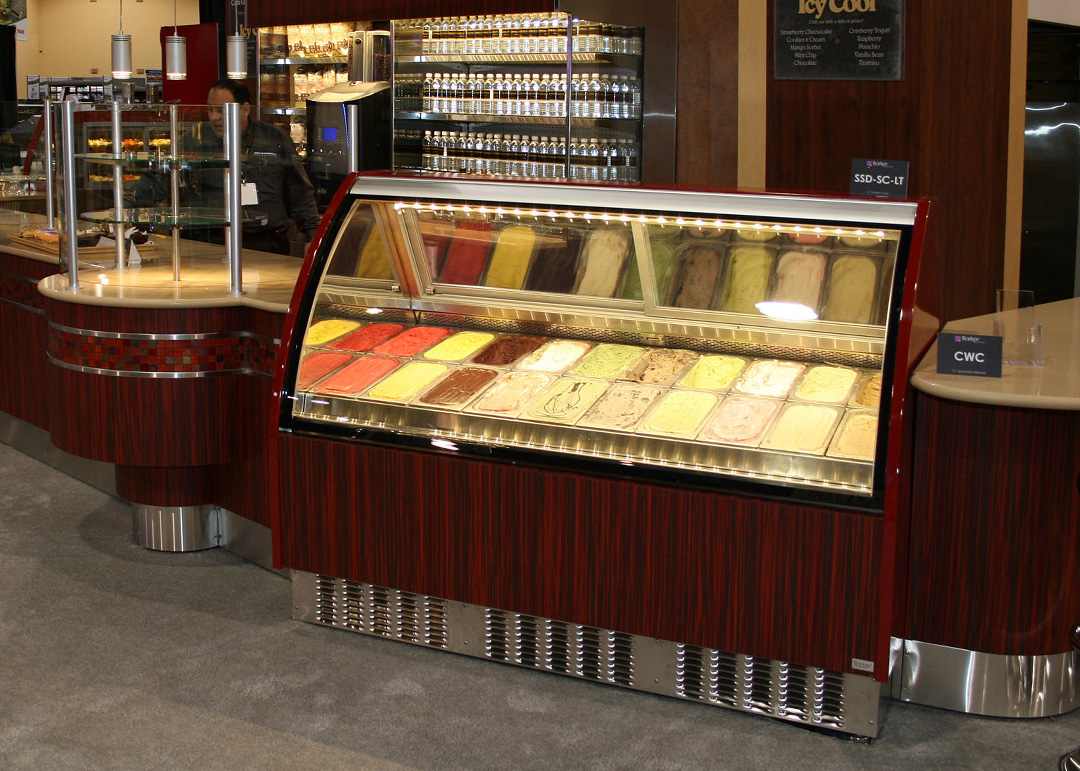

  • SSD-R-LT-Gelato-display-case-photo-0005.jpg

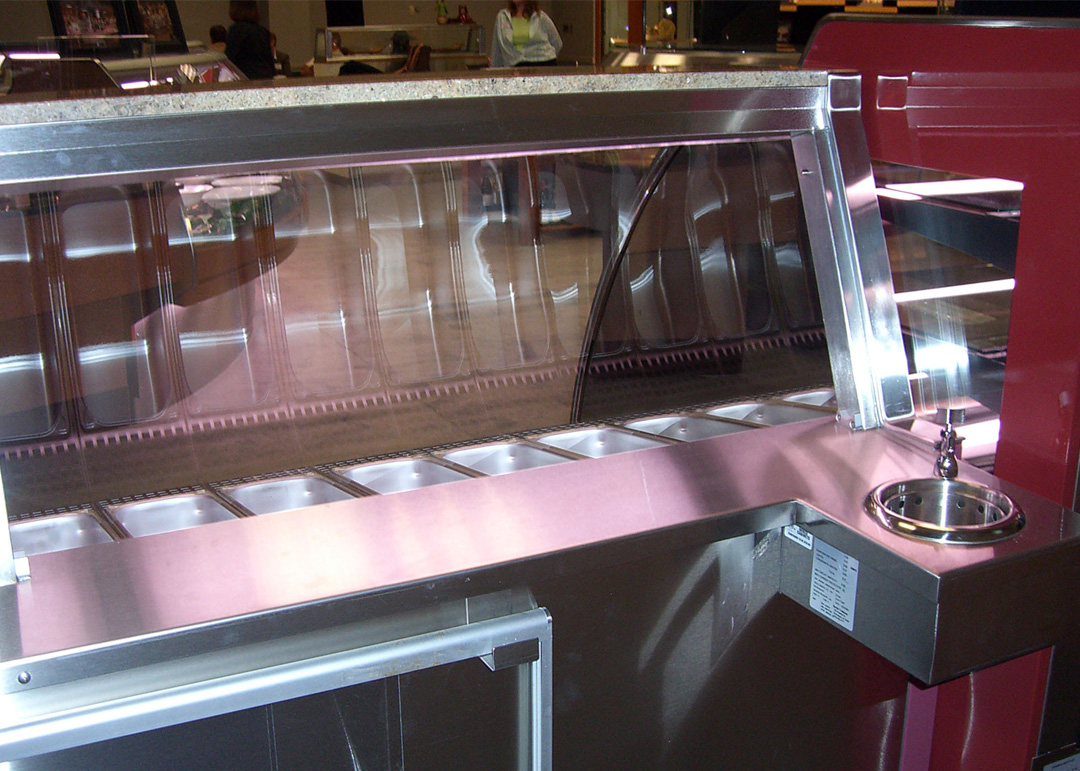

  • SSD-R-LT-Gelato-display-case-photo-0004.jpg

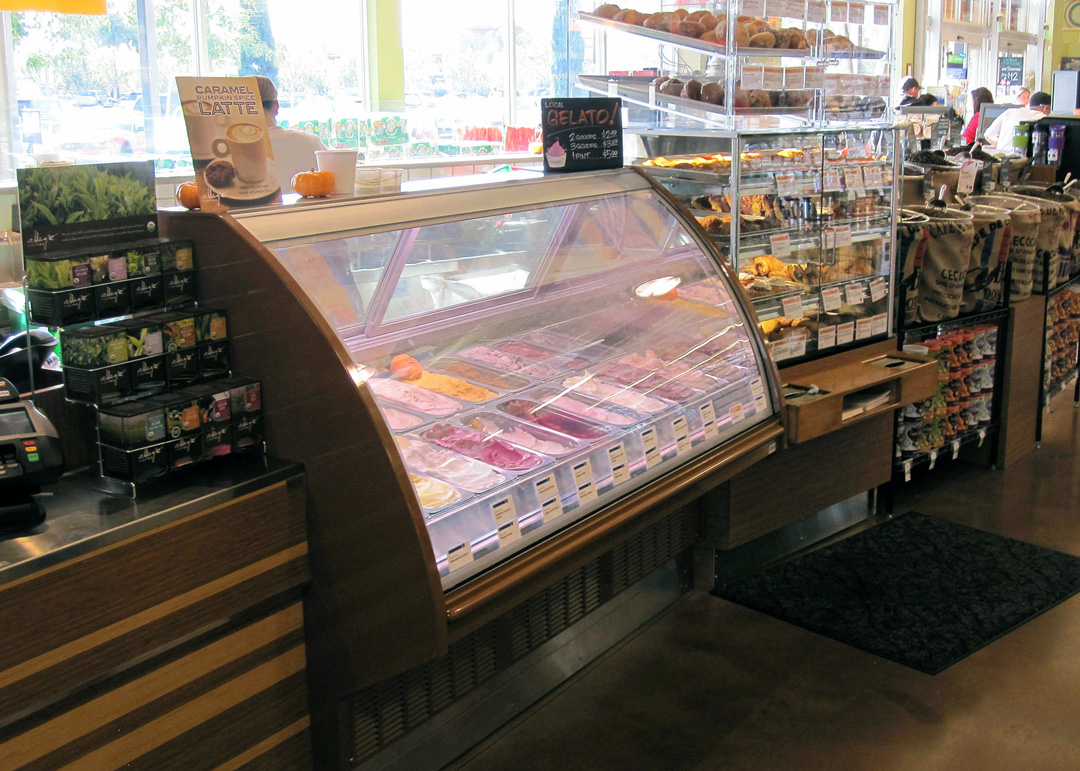

  • SSD-R-LT-Gelato-display-case-photo-0003.jpg

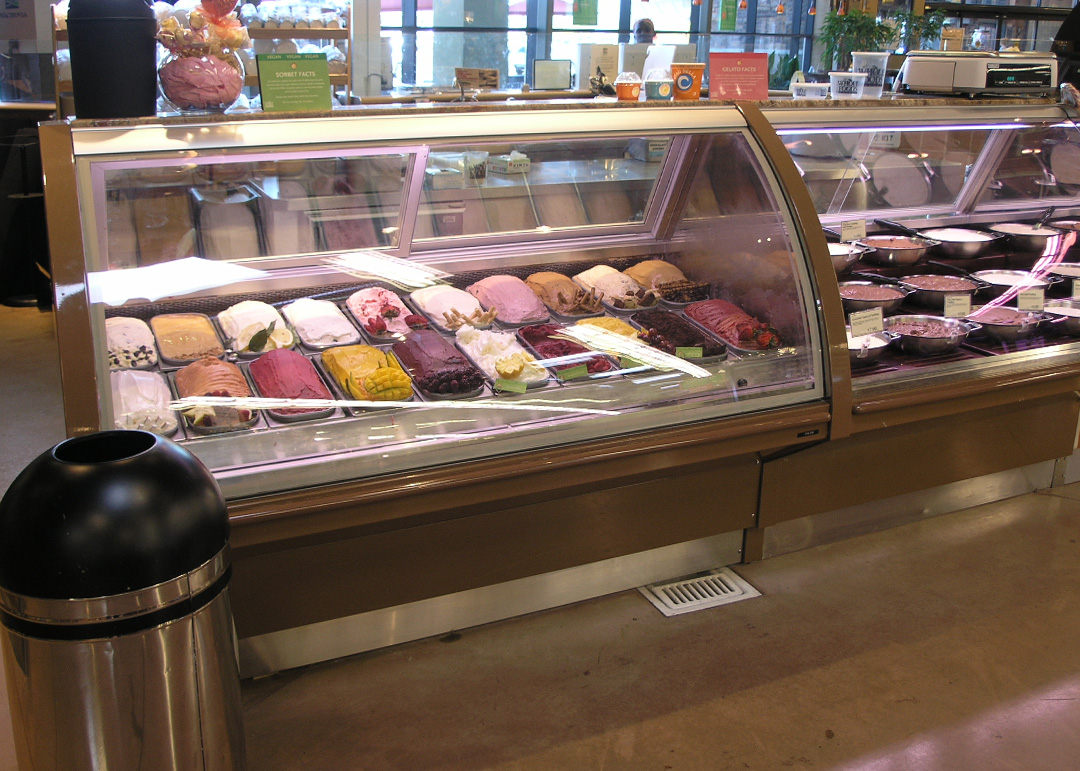

  • SSD-R-LT-Gelato-display-case-photo-0002.jpg

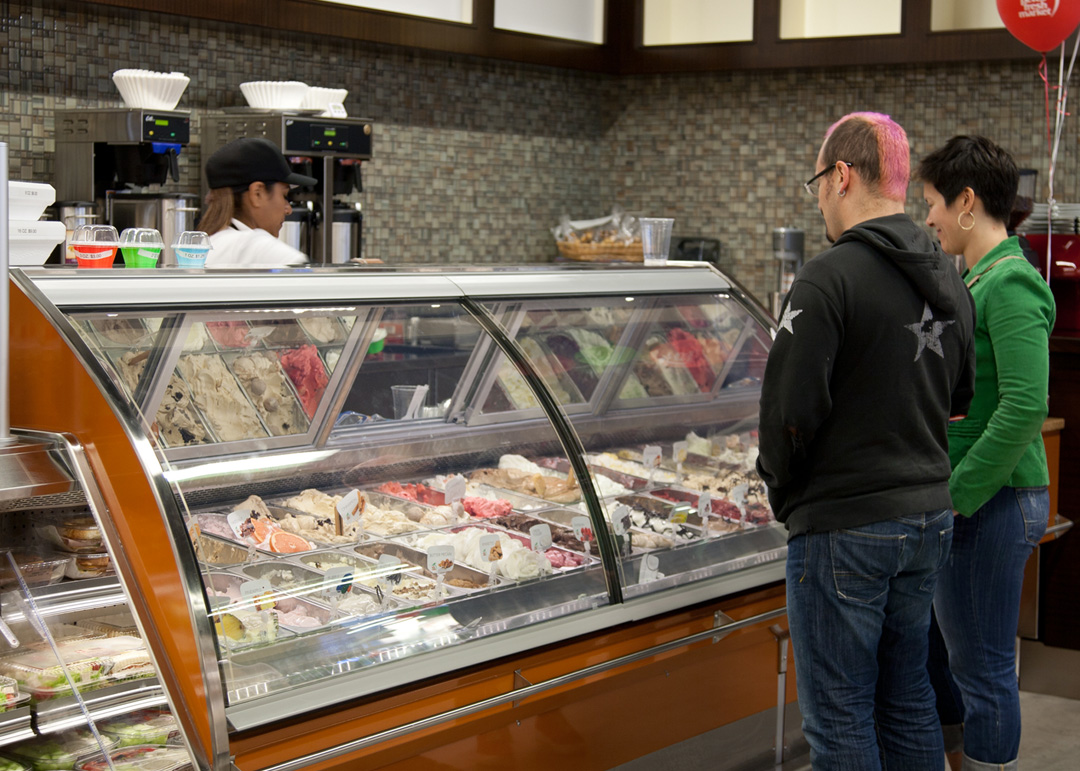

  • SSD-R-LT-Gelato-display-case-photo-8231.jpg
  • SSD-R-LT_GELATO-display-case-CAD-drawing-rv1.dwg

Installation Manuals

  • SSD-R-LT_GELATO-dispaly-case-manual.pdf

Accessories

  • Standard-Bumper-Color-Chart-Brochure.pdf
  • Standard-Paint-Color-Chart-Brochure-082823-v2.pdf

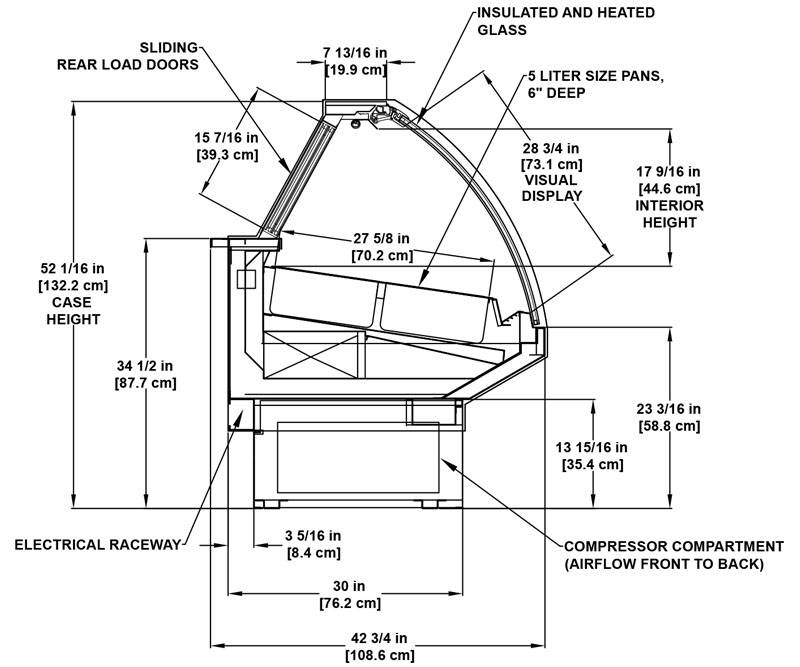

Cross Section

  • SSD-R-LT-Gelato-page-profile-rv1.jpg

Sales Literature

  • Bakery-case-category-sales-sheet.pdf
  • SSD-R-LT-gelato-display-case-sales-sheet-v2.pdf

Technical Reference

  • SSD-R-LT-gelato-display-case-tech-reference-sheet-rv5.pdf

Please consult Hillphoenix Engineering Reference Manual for dimensions, plan views and technical specifications. Specifications subject to change without notice. Designed for optimal performance in store environments where temperature and humidity do not exceed 75°F and 55% R.H. Certified to UL 471, ANSI/NSF Standard 2,7,51 and CAN/CSA C22.2.



Service Single-Deck

Hillphoenix SSD-R-LT Gelato, Single-Deck, Service, Low-Temp Display. Designed for frozen gelato applications. Curved glass profile. Available in several lengths. Lines up with the SSD-R in the 48-1/2" optional height.

Hillphoenix SSD-R-LT Gelato, Single-Deck, Service, Low-Temp Display. Designed for frozen gelato applications. Curved glass profile. Available in several lengths. Lines up with the SSD-R in the 48-1/2" optional height.

Less


Download OPEN FULL SCREEN
ADD TO DOWNLOAD LIST

Features & Benefits

  • Sled runner base construction.
  • Case dimensions: 52-1/16” H & 42-3/4” D.
  • 13-15/16” H stainless steel toekick, front and sides.
  • 60-degree front dieboard.
  • Painted metal exterior.
  • Stainless steel base trim, front, & sides.
  • Stainless steel exterior trim.
  • Stainless steel outside back and rear trim.
  • Stainless steel case top.
  • Insulated reflective rear load doors with black frames.
  • Thermopane, insulated (7/8” T) regular glare curved lift glass.
  • Insulated and heated front glass.
  • Stainless steel interior and trim.
  • Fixed, angled stainless steel deck to accommodate up to 6" D standard U.S. hotel pans (pans are not included).
  • Clearvoyant® LED top lighting.
  • Energy efficient fans.
  • Electric defrost.
  • 2” dial thermometer.
  • Rear electrical location.
  • Remote DX refrigeration package.

Available Options

  • Available lengths: 4’ & 6’.
  • Case heights available: 54-9/16”
  • Alternate toekick heights: 13-15/16”.
  • Flat front profile.
  • Pedestal base or false pedestal base.
  • Recess in front toekick.
  • Exterior finishes: exterior grade laminate or stainless steel.
  • Solid surface or stone case top.
  • Extended rear ledge.
  • Rear ledge options:  poly, solid surface, or stone.
  • Side-mounted dipper well with faucet.
  • Integrated case top scale stand or adjustable scale stand.
  • Rear flip-up work boards (fixed or flip-up) in poly, stainless steel, or solid surface.
  • ISO outlet/CON outlets (specify vertical or horizontal placement on rear).
  • Clear rear load doors.
  • Gray rear load door frames.
  • Solid or full-view end panels with mirror-polished, stainless steel interior.
  • Thermal divider.
  • Cart bumper mounted on the front panel of the case.
  • Cart bumper added to end panels.
  • Front electrical raceway.
  • Remote glycol or CO2 refrigeration packages.

Attributes

  • Alternate Heights: 54-9/16"
  • Case Depth / Footprint: 42-3/4"
  • Case Height Standard: 52 1/16"
  • Case Length: 4’ and 6’
  • Case Temp: Low-Temp
  • Case Type: Remote, Service, Single-Deck
  • Department: Frozen Food, Ice Cream & Gelato
  • Door Type: -
  • Interior Depth: 27-5/8"
  • Interior Height: 17-9/16"
  • Other Models: Frozen gelato.
  • Product Type: Specialty Cases
  • Refrigerated Volume: -
  • Remote / Self-Contained: Remote
  • Retail Types: Food Service, Mass Merchandise, Membership & Warehouse, Supermarket
