SSD-R
Service Single-Deck

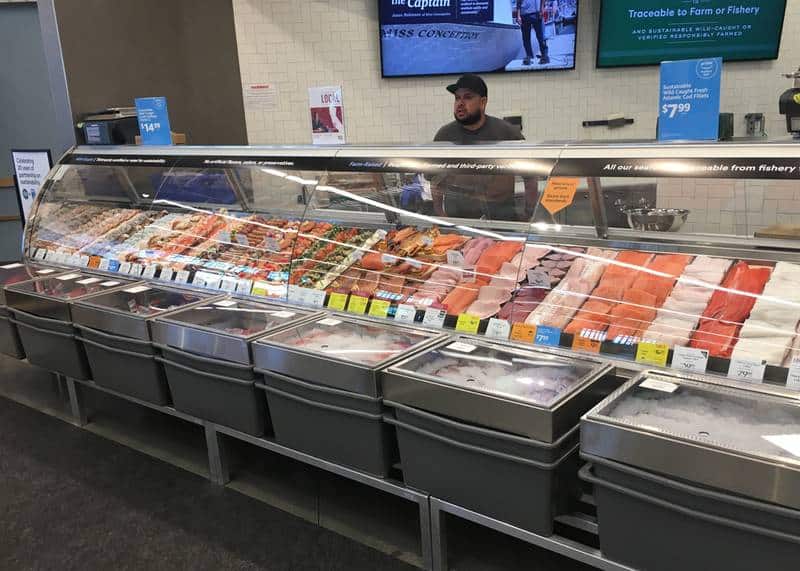

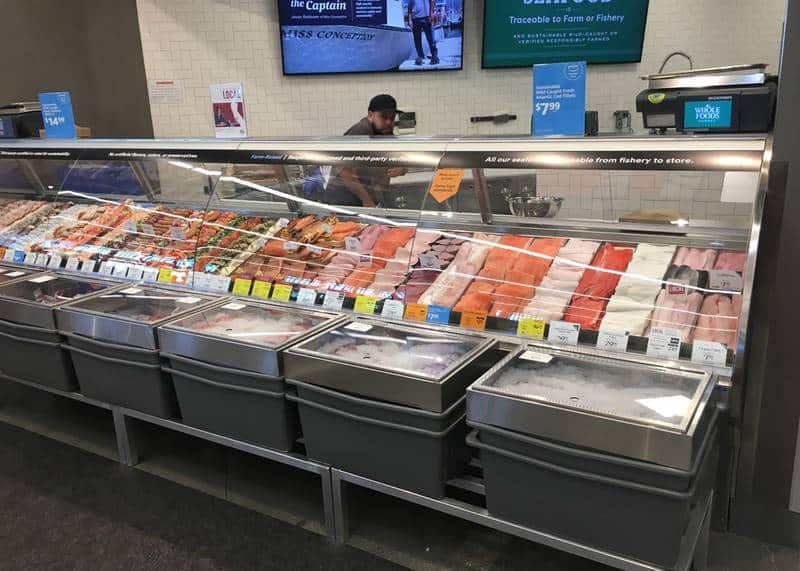

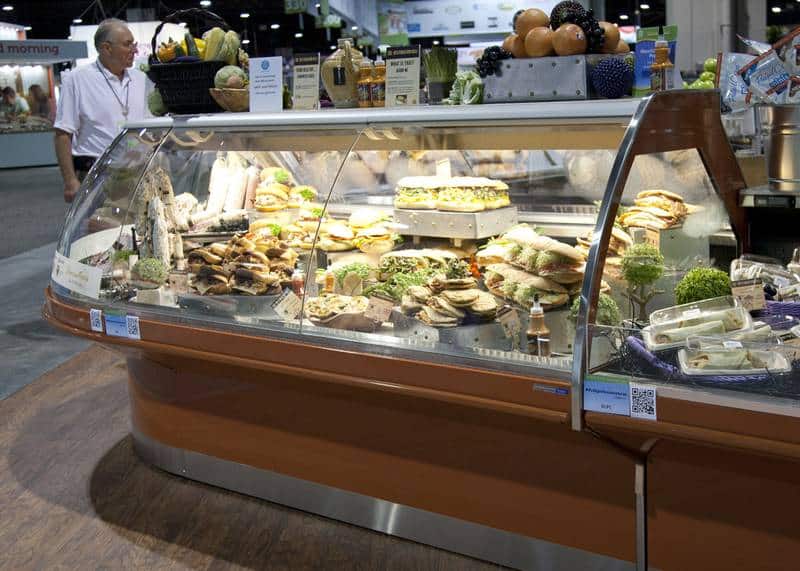

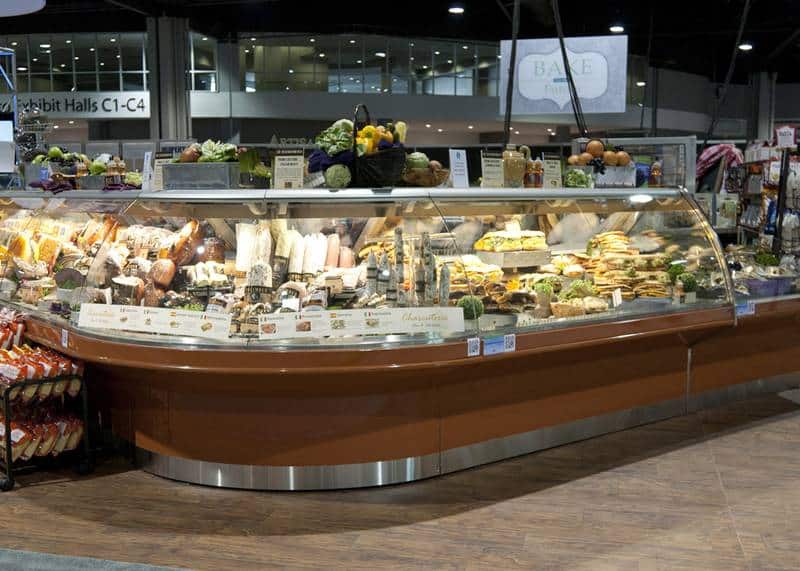

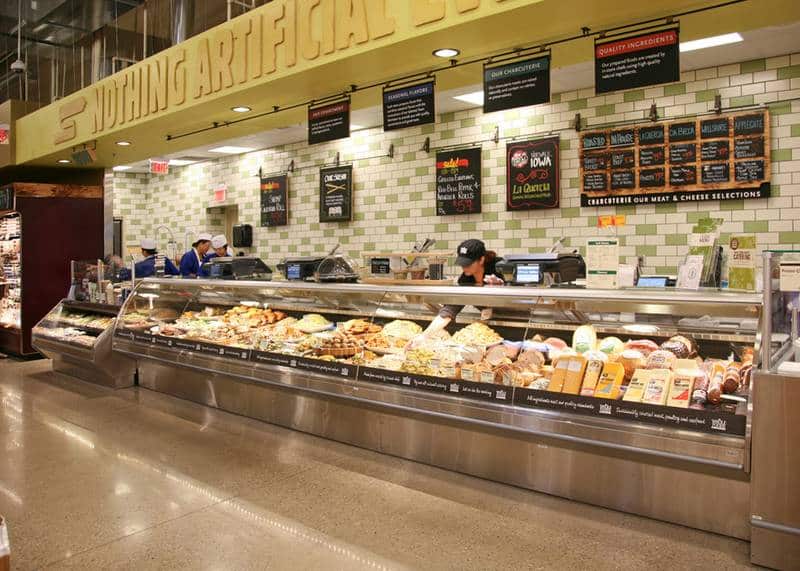

Hillphoenix SSD-R Single-Deck, Service, Refrigerated Display. Designed for deli and bakery applications. Curved glass profile. Available in several lengths. Standard height lines up with the self-service DLPC and DLPF merchandisers. Optional 48-1/2" case height lines up with the SSD-LT Gelato display.
Hillphoenix SSD-R Single-Deck, Service, Refrigerated Display. Designed for deli and bakery applications. Curved glass profile. Available in several lengths. Standard height lines up with the self-service DLPC and DLPF merchandisers. Optional 48-1/2" case height lines up with the SSD-LT Gelato display.
Please consult Hillphoenix Engineering Reference Manual for dimensions, plan views and technical specifications. Specifications subject to change without notice. Designed for optimal performance in store environments where temperature and humidity do not exceed 75°F and 55% R.H. Certified to UL 471, ANSI/NSF Standard 2,7,51 and CAN/CSA C22.2.
Service Single-Deck
Hillphoenix SSD-R Single-Deck, Service, Refrigerated Display. Designed for deli and bakery applications. Curved glass profile. Available in several lengths. Standard height lines up with the self-service DLPC and DLPF merchandisers. Optional 48-1/2" case height lines up with the SSD-LT Gelato display.
Hillphoenix SSD-R Single-Deck, Service, Refrigerated Display. Designed for deli and bakery applications. Curved glass profile. Available in several lengths. Standard height lines up with the self-service DLPC and DLPF merchandisers. Optional 48-1/2" case height lines up with the SSD-LT Gelato display.
Features & Benefits
- Sled runner base construction.

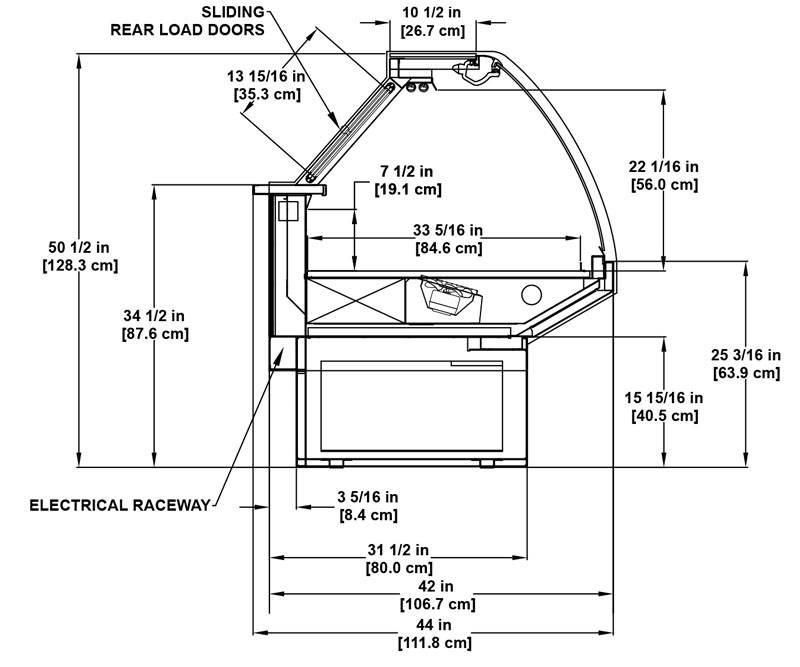

- Case dimensions: 50-1/2” H & 44” D.
- 15-15/16” H stainless steel toekick, front and sides.
- 60-degree front dieboard.
- Painted metal exterior.
- Stainless steel base trim, front, & sides.
- Stainless steel exterior trim.
- Stainless steel outside back and rear trim.
- 3/8” T glass case top.
- Removable clear plexi rear load doors with rear mount hangers for storage.
- Single-pane, regular glare curved glass with lift-up glass hardware.
- Painted black metal interior and trim.
- Black painted metal flat bottom merchandising deck with 1” product stop.
- Clearvoyant® LED dual top lighting.
- Energy efficient fans.
- Solar digital thermometer.
- Rear electrical location.
- Remote DX refrigeration package.
Available Options
- Available lengths: 4’, 6’, 8’, 10’, and 12’.
- Case heights available: 48-1/2”
- Alternate toekick heights: 13-15/16”.
- Flat front profile.
- Pedestal base or false pedestal base.
- Recess in front toekick.
- Exterior finishes: exterior grade laminate or stainless steel.
- Solid surface or stone case top.
- Non-glare front glass (not available on wedges or spherical lineups).
- Front glass masking.
- Extended rear ledge.
- Rear ledge options: poly, solid surface, or stone.
- 2” H bottom merchandising deck product stop.
- Perforated step riser (2 or 3 tier).
- Slant riser or Z step.
- Integrated case top scale stand or adjustable scale stand.
- Rear flip-up work boards (fixed or flip-up) in poly, stainless steel, or solid surface.
- Paper cutters.
- ISO outlet/CON outlets (specify vertical or horizontal placement on rear).
- Removable smoked plexi rear load doors
- Plexi swing doors on miter and wedge sections.
- Solid or full-view end panels with mirror-polished, stainless steel interior.
- Thermal divider.
- Cart bumper mounted on the front panel of the case.
- Cart bumper added to end panels.
- Front electrical raceway.
- Remote glycol or CO2 refrigeration packages.
Attributes
- Alternate Heights: 48-1/2"
- Case Depth / Footprint: 44"
- Case Height Standard: 50-1/2"
- Case Length: 4’, 6’, 8’, 10', and 12
- Case Temp: Medium-Temp
- Case Type: Rear-Load, Remote, Service, Single-Deck
- Department: Deli
- Door Type: -
- Interior Depth: 33-5/16"
- Interior Height: 22-1/16"
- Other Models: Bakery and deli. Also consider the GSD-R.
- Product Type: Specialty Cases
- Refrigerated Volume: -
- Remote / Self-Contained: Remote
- Retail Types: Food Service, Mass Merchandise, Membership & Warehouse, Supermarket
Related Products
SSD-R-LT GELATO
Hillphoenix SSD-R-LT Gelato, Single-Deck, Service, Low-Temp Display. Designed for frozen gelato applications. Curved glass profile. Available in several lengths. Lines…
SSA-R
Hillphoenix SSA-R Multi-Deck, Refrigerated Display. Designed for deli applications. Curved glass profile with up to two rows of shelves. Available…
GSD-R

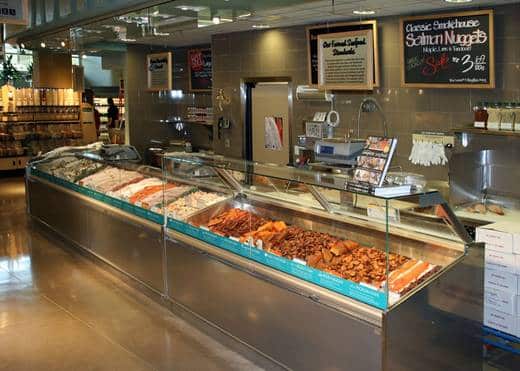

Hillphoenix GSD-R Single-Deck, Service, Refrigerated Display Case. Available in various lengths with vertical slide glass hardware. Front profile lines up…
