SSAS-RG
Service Single-Deck

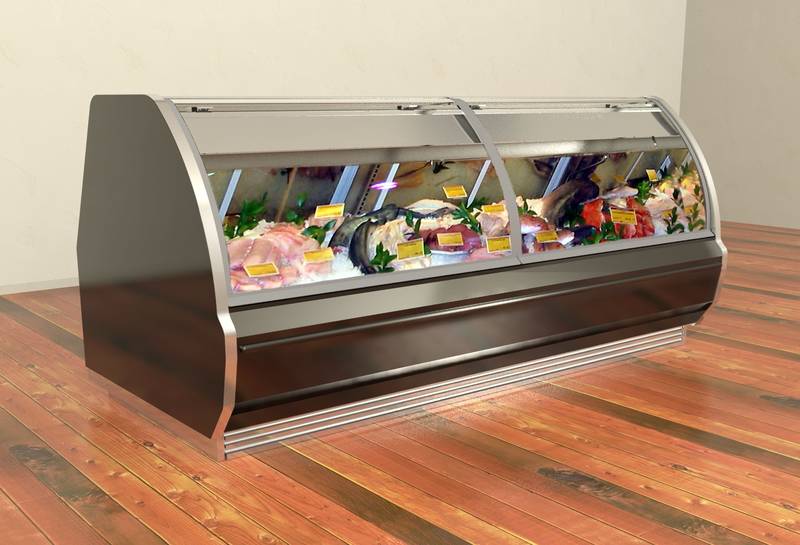

Hillphoenix SSAS-RG Single-Deck, Refrigerated, Gravity Coil and Serpentine-Assist Display. Designed for iced seafood applications. Curved glass profile. Available in several case lengths and heights. The front of the case lines up with the SSA-R, SSAW-R, SSAM-RG, and SSA-RG for a continuous department look.
Hillphoenix SSAS-RG Single-Deck, Refrigerated, Gravity Coil and Serpentine-Assist Display. Designed for iced seafood applications. Curved glass profile. Available in several case lengths and heights. The front of the case lines up with the SSA-R, SSAW-R, SSAM-RG, and SSA-RG for a continuous department look.
Please consult Hillphoenix Engineering Reference Manual for dimensions, plan views and technical specifications. Specifications subject to change without notice. Designed for optimal performance in store environments where temperature and humidity do not exceed 75°F and 55% R.H. Certified to UL 471, ANSI/NSF Standard 2,7,51 and CAN/CSA C22.2.
Service Single-Deck
Hillphoenix SSAS-RG Single-Deck, Refrigerated, Gravity Coil and Serpentine-Assist Display. Designed for iced seafood applications. Curved glass profile. Available in several case lengths and heights. The front of the case lines up with the SSA-R, SSAW-R, SSAM-RG, and SSA-RG for a continuous department look.
Hillphoenix SSAS-RG Single-Deck, Refrigerated, Gravity Coil and Serpentine-Assist Display. Designed for iced seafood applications. Curved glass profile. Available in several case lengths and heights. The front of the case lines up with the SSA-R, SSAW-R, SSAM-RG, and SSA-RG for a continuous department look.
Features & Benefits
- C-frame bullet leg construction.

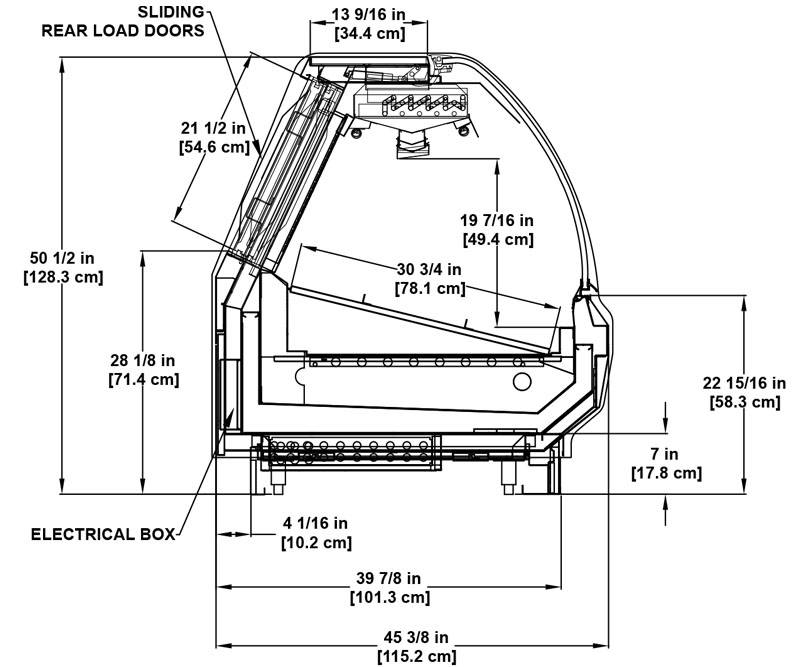

- Case dimensions: 50-1/2” H & 45-3/8” D.
- 7” H stainless steel toekick, front and sides.
- Painted metal exterior.
- Stainless steel base trim, front, & sides.
- Stainless steel exterior trim.
- Painted metal outside back and rear trim.
- Stainless steel case top.
- Clear rear load doors with black frames.
- Thermopane, insulated (5/8” T) regular glare curved glass with lift-up glass hardware.
- Gray glass gasket, wipe, and glass handle.
- Stainless steel interior and trim.
- Black plastic coil covers with a fixed black wire rack.
- Clearvoyant® LED dual top lighting.
- Solar digital thermometer.
- Rear electrical raceway location.
- Remote DX gravity coil refrigeration package.
- Serpentine coil assist with ice application.
Available Options
- Available lengths: 4’, 6’, 8’, 10’, and 12’.
- Case heights available: 52-1/2” and 54-1/2”.
- Alternate toekick heights: 9” and 11”.
- Profile options: Flat front, master with nose bumper, or prestige bumper (silver anodized or painted).
- Pedestal base or false pedestal base.
- Exterior finishes: exterior grade laminate or stainless steel.
- Solid surface or stone case top.
- Front glass masking.
- Black glass gasket, wipe, and glass handle.
- Adjustable wire rack.
- Heavy-duty stainless steel deck – no coil cover.
- White plastic coil covers.
- Slant riser or Z step.
- Ice pans for ice application.
- Integrated case top scale stand or adjustable scale stand.
- Rear flip-up work boards (fixed or flip-up) in poly, stainless steel, or solid surface.
- Paper cutters.
- ISO outlet/CON outlets (specify vertical or horizontal placement on rear).
- Reflective rear load doors.
- Gray rear load door frames.
- Solid or full-view end panels with mirror-polished, stainless steel interior.
- Thermal divider.
- Cart bumper mounted on the front panel of the case.
- Cart bumper added to end panels.
- Remote glycol or CO2 refrigeration packages.
Attributes
- Alternate Heights: 52-1/2" and 54-1/2"
- Case Depth / Footprint: 45-3/8"
- Case Height Standard: 50-1/2"
- Case Length: 4’, 6’, 8’, 10' and 12’
- Case Temp: Medium-Temp
- Case Type: Rear-Load, Remote, Service, Single-Deck
- Department: Deli, Meat & Seafood
- Door Type: -
- Interior Depth: 30-3/4"
- Interior Height: 19-7/16"
- Other Models: Also consider the SMD-RG, SMD-RGC, GMD-RG, GMD-RGC, S2SGC, SSFS-RG
- Product Type: Specialty Cases
- Refrigerated Volume: -
- Remote / Self-Contained: Remote
- Retail Types: Food Service, Mass Merchandise, Membership & Warehouse, Supermarket
