SMD-RGC
Multi-Deck Service Refrigerated Display
Hillphoenix SMD-RGC Multi-Deck, Service, Refrigerated Display. Designed with Coolgenix conductive cooling for meat and seafood applications with a curved lift-up front glass showcasing the product with an option for flat or vertical (CUBE) style front glass. Available with an option for one row of Coolgenix shelving. Several case lengths are available. The front profile lines up with the SMD-RG service merchandiser as well as the DLPC-R and DLPF-R self-service merchandisers.
Hillphoenix SMD-RGC Multi-Deck, Service, Refrigerated Display. Designed with Coolgenix conductive cooling for meat and seafood applications with a curved lift-up front glass showcasing the product with an option for flat or vertical (CUBE) style front glass. Available with an option for one row of Coolgenix shelving. Several case lengths are available. The front profile lines up with the SMD-RG service merchandiser as well as the DLPC-R and DLPF-R self-service merchandisers.
Please consult Hillphoenix Engineering Reference Manual for dimensions, plan views and technical specifications. Specifications subject to change without notice. Designed for optimal performance in store environments where temperature and humidity do not exceed 75°F and 55% R.H. Certified to UL 471, ANSI/NSF Standard 2,7,51 and CAN/CSA C22.2.
Multi-Deck Service Refrigerated Display
Hillphoenix SMD-RGC Multi-Deck, Service, Refrigerated Display. Designed with Coolgenix conductive cooling for meat and seafood applications with a curved lift-up front glass showcasing the product with an option for flat or vertical (CUBE) style front glass. Available with an option for one row of Coolgenix shelving. Several case lengths are available. The front profile lines up with the SMD-RG service merchandiser as well as the DLPC-R and DLPF-R self-service merchandisers.
Hillphoenix SMD-RGC Multi-Deck, Service, Refrigerated Display. Designed with Coolgenix conductive cooling for meat and seafood applications with a curved lift-up front glass showcasing the product with an option for flat or vertical (CUBE) style front glass. Available with an option for one row of Coolgenix shelving. Several case lengths are available. The front profile lines up with the SMD-RG service merchandiser as well as the DLPC-R and DLPF-R self-service merchandisers.
Features & Benefits
- Sled runner base construction.
- Case dimensions: 52-1/8” H & 42” D.
- 13-15/16” H stainless steel toekick, front and sides.
- 60-degree front dieboard.
- Painted metal exterior.
- Stainless steel base trim, front, sides, & rear.
- Stainless steel exterior trim.
- Stainless steel outside back and case top.
- Reflective rear load doors with black frames.

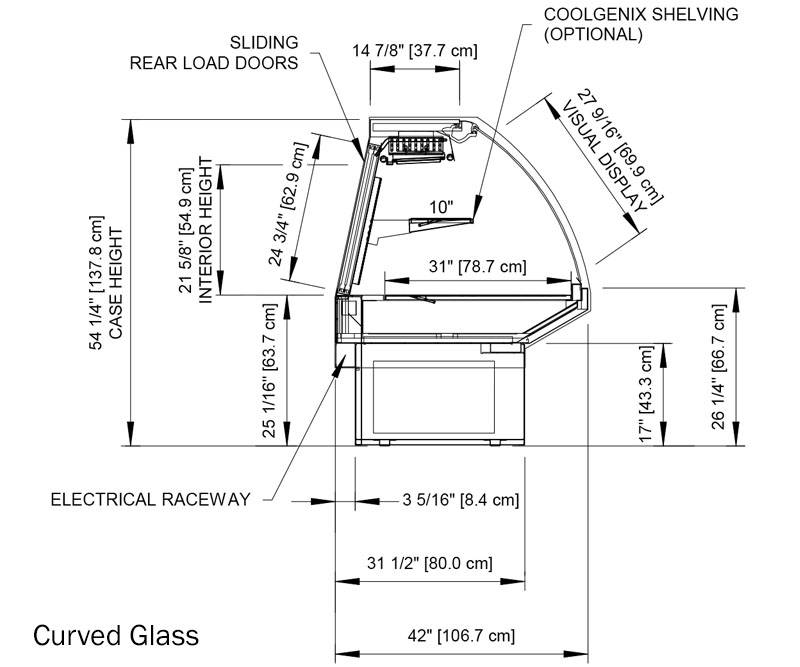

- Single-pane, regular glare curved glass with lift-up glass hardware.
- Painted matte black metal interior and trim.
- Clearvoyant® LED dual top lighting.
- Top gravity coil.
- Black Coolgenix® deck pans with standard length hoses with quick disconnect fittings and vertical pan supports.
- Solar digital thermometer.
- Rear electrical raceway location.
- Remote glycol refrigeration.
Available Options
- Available lengths: 4’, 6’, 8’, 10’, and 12’.
- Case heights available: 54-1/8”.
- Alternate 15-15/16” H toekick height.

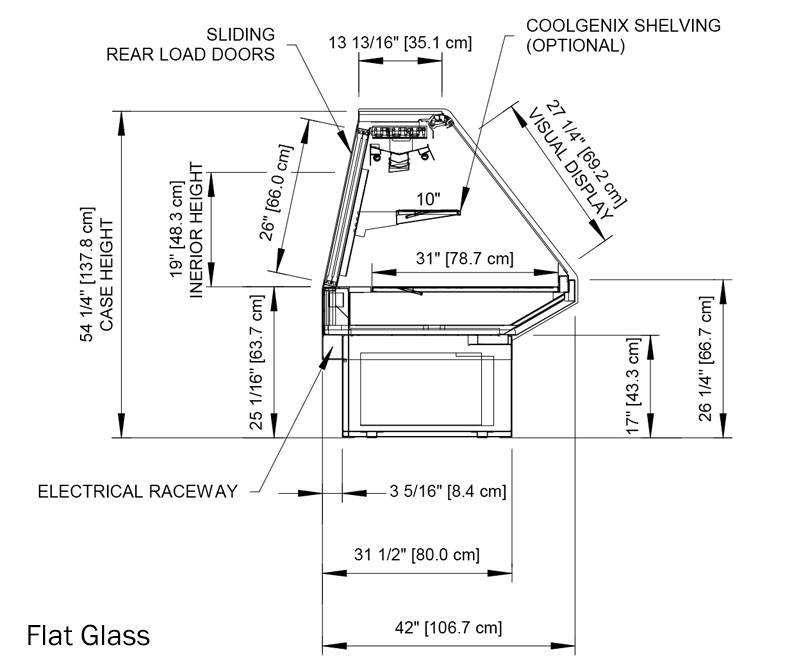

- Flat front profile.
- Bullet leg base with adjustable height toekick.
- Pedestal base or false pedestal base.
- Exterior finishes: exterior grade laminate or stainless steel.
- Interior finishes: painted white or stainless steel.
- Solid surface or stone case top.
- Non-glare front glass.
- Front glass masking.
- Single-pane, regular glare flat glass with lift-up glass hardware.
- Single-pane, regular glare vertical glass with the option of swing or lift-up hardware.
- (1) row 10” D black painted Coolgenix shelf with PTM on 52-1/8” H case.
- (2) rows 10” D black painted Coolgenix shelf with PTM on 54-1/8” H case.
- LED undershelf lighting.
- Coolgenix pan colors: white or silver.
- Longer hoses for Coolgenix deck pans.
- Decorative plex ice trough for case front.
- Deck product stops: plex or stainless steel.
- 90-minute time delay-push button cleaning switch.
- Integrated case top scale stand or adjustable scale stand.
- Rear flip-up work boards (fixed or flip-up) in poly, stainless steel, or solid surface.
- Paper cutters.
- ISO outlet/CON outlets (specify vertical or horizontal placement on rear).
- Clear rear load doors.
- Gray rear load door frames.
- Solid or full-view end panels with mirror-polished, stainless steel interior.
- Thermal divider.
- Cart bumper mounted on the front panel of the case.
- Cart bumper added to end panels.
- Front electrical raceway.
- Remote semi-self-contained glycol refrigeration.
Attributes
- Alternate Heights: -
- Case Depth / Footprint: 42"
- Case Height Standard: 54-1/4"
- Case Length: 4’, 6’, 8’, 10' and 12’
- Case Temp: Medium-Temp
- Case Type: Multi-Deck, Service
- Department: Meat & Seafood
- Door Type: -
- Interior Depth: 31"
- Interior Height: 19"
- Other Models: Meat and seafood. Also consider the GMD-RGC, S2SGC and SSGC.
- Product Type: Specialty Cases
- Refrigerated Volume: -
- Remote / Self-Contained: Remote
- Retail Types: Food Service, Mass Merchandise, Membership & Warehouse, Supermarket
