SD-RG
Oversize Dome Single-Deck

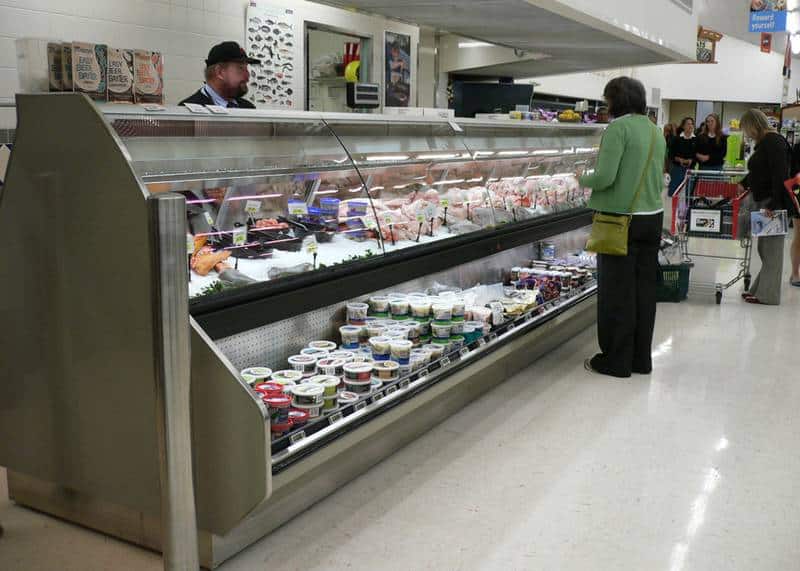

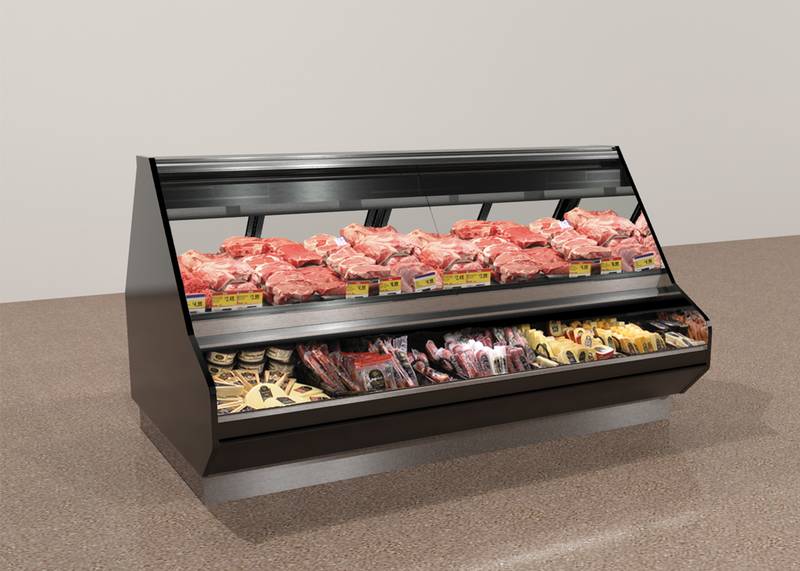

Hillphoenix SD-RG Combination Service, Refrigerated, Gravity Coil Dome and Self-Service, Refrigerated Display. Designed for meat and seafood applications with a flat glass service dome profile or with the optional curved glass dome. Available in several case lengths. Front profile lines up with the SD-H and SD-R for a continuous department look.
Hillphoenix SD-RG Combination Service, Refrigerated, Gravity Coil Dome and Self-Service, Refrigerated Display. Designed for meat and seafood applications with a flat glass service dome profile or with the optional curved glass dome. Available in several case lengths. Front profile lines up with the SD-H and SD-R for a continuous department look.
Please consult Hillphoenix Engineering Reference Manual for dimensions, plan views and technical specifications. Specifications subject to change without notice. Designed for optimal performance in store environments where temperature and humidity do not exceed 75°F and 55% R.H. Certified to UL 471, ANSI/NSF Standard 2,7,51 and CAN/CSA C22.2.
Oversize Dome Single-Deck
Hillphoenix SD-RG Combination Service, Refrigerated, Gravity Coil Dome and Self-Service, Refrigerated Display. Designed for meat and seafood applications with a flat glass service dome profile or with the optional curved glass dome. Available in several case lengths. Front profile lines up with the SD-H and SD-R for a continuous department look.
Hillphoenix SD-RG Combination Service, Refrigerated, Gravity Coil Dome and Self-Service, Refrigerated Display. Designed for meat and seafood applications with a flat glass service dome profile or with the optional curved glass dome. Available in several case lengths. Front profile lines up with the SD-H and SD-R for a continuous department look.
Features & Benefits
Refrigerated Dome:
- Dome height: 26” H.
- Stainless steel outside back and dome top.
- Reflective rear load doors with black frames.
- Single-pane, regular glare flat glass with lift-up glass hardware.
- Stainless steel interior and trim.
- Stainless steel flat bottom merchandising deck.
- Clearvoyant® LED dual top lighting.
- Energy efficient fans.
- Solar digital thermometer.
- Remote DX gravity coil refrigeration package.
- Serpentine coil assist.
Refrigerated Base:
- Sled runner base construction.

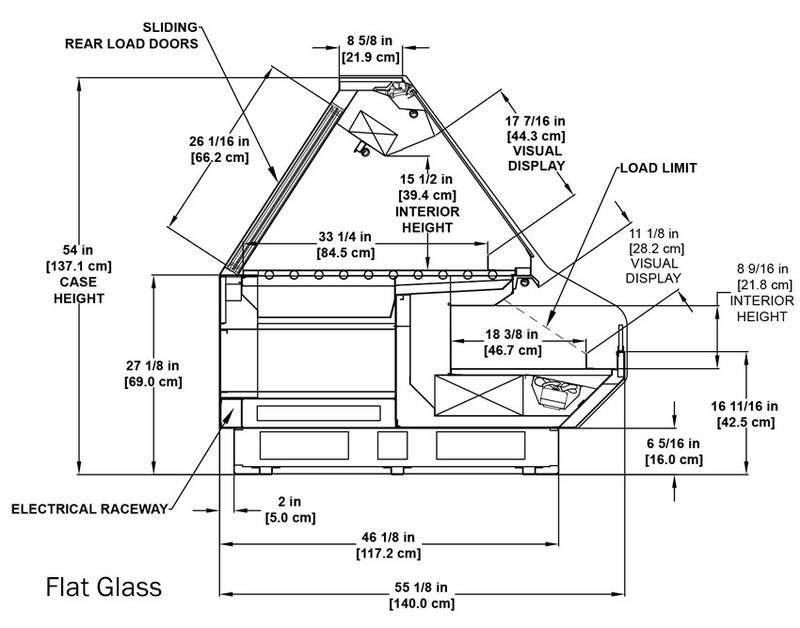

- Overall case dimensions: 54” H & 55-1/8” D.
- 6-5/16” H stainless steel toekick, front and sides.
- 45-degree front dieboard.
- Painted metal exterior.
- Stainless steel base trim, front, sides, & rear.
- Stainless steel exterior trim.
- Stainless steel outside back.
- Painted black metal interior and trim.
- 3-1/2” H x ½” T polished straight dieboard plex.
- Black painted metal flat bottom merchandising deck with 2” metal product stop.
- 23-3/4” D open dry rear storage.
- Clearvoyant® LED top lighting.
- Energy efficient fans.
- Solar digital thermometer.
- Rear electrical raceway location.
- Remote DX refrigeration package.
Available Options
- Available lengths: 4’, 6’, 8’, 10’, and 12’.
- Alternate 7-13/16” H toekick height (no change in overall height).
- Flat front profile.
- Bullet leg base with adjustable height toekick.
- Pedestal base or false pedestal base.
- Exterior finishes: exterior grade laminate or stainless steel.
- Interior finishes: painted white or stainless steel.
- Solid surface, poly, or stone case top.
- Non-glare front glass.
- Front glass masking.
- Single-pane, regular glare curved glass with lift-up glass hardware.
- Integrated case top scale stand or adjustable scale stand.
- Rear flip-up work boards (fixed or flip-up) in poly, stainless steel, or solid surface.
- Paper cutters.
- ISO outlet/CON outlets (specify vertical or horizontal placement on rear).
- Ice pans in the dome (required for seafood application).
- Clear rear load doors on dome.
- Gray rear load door frames on dome.
- Sliding doors on dry lower storage.
- Solid or full-view end panels with mirror-polished, stainless steel interior.
- Thermal divider.
- Cart bumper mounted on the front panel of the case.
- Cart bumper added to end panels.
- Front electrical raceway.
- Remote glycol or CO2 refrigeration packages.
Attributes
- Alternate Heights: -
- Case Depth / Footprint: 55-1/8"
- Case Height Standard: 54"
- Case Length: 4’, 6’, 8’, 10' and 12’
- Case Temp: Medium-Temp
- Case Type: Multi-Deck, Rear-Load, Remote, Service, Single-Deck
- Department: Deli
- Door Type: -
- Interior Depth: top: 33-1/4" bottom: 18-3/8"
- Interior Height: top: 15-1/2" bottom: 8-9/16"
- Other Models: Meat and seafood. Also consider the PTD-RGC, PTD-GSD-R and PTD-RG.
- Product Type: Specialty Cases
- Refrigerated Volume: -
- Remote / Self-Contained: Remote
- Retail Types: Drug Store, Food Service, Mass Merchandise, Supermarket
