SD-R-Spherical
Oversized Single-Deck

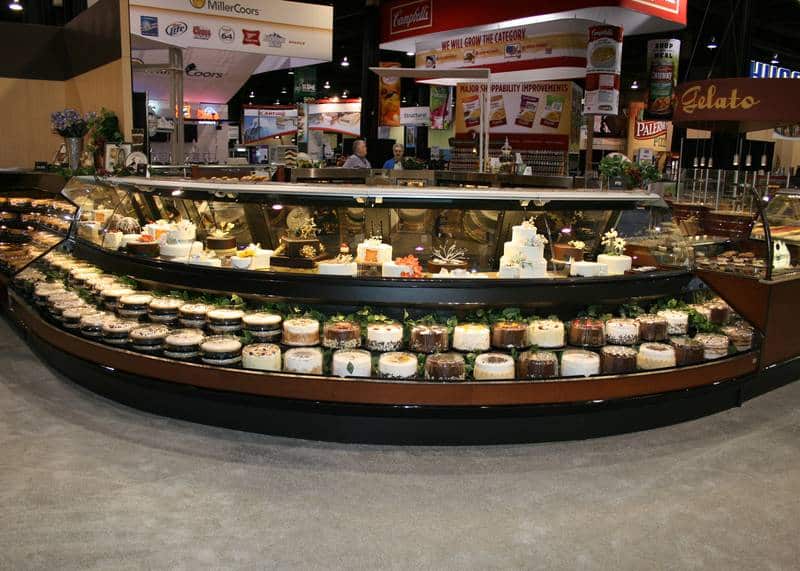

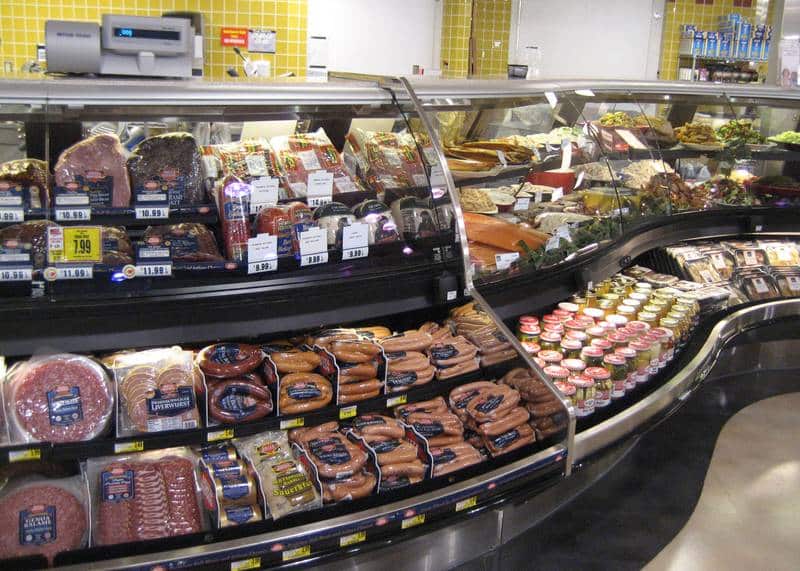

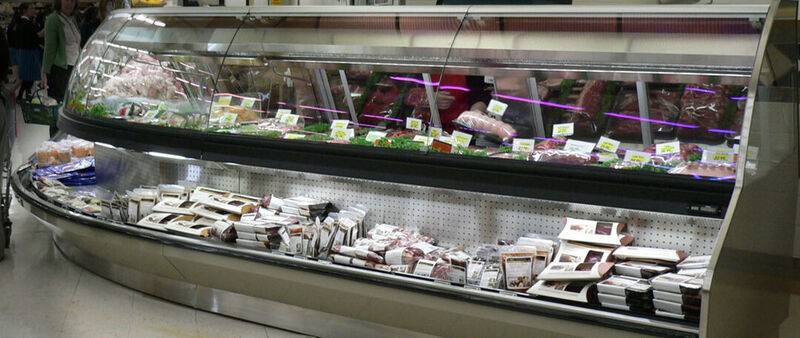

Hillphoenix SD-R Spherical Combination Service, Refrigerated Dome and Self-Service, Refrigerated Display. Designed for bakery and deli applications with a spherical glass service dome profile. Available in several case lengths. Front profile lines up with the SD-H, SD-RG, and SD-R for a continuous department look.
Hillphoenix SD-R Spherical Combination Service, Refrigerated Dome and Self-Service, Refrigerated Display. Designed for bakery and deli applications with a spherical glass service dome profile. Available in several case lengths. Front profile lines up with the SD-H, SD-RG, and SD-R for a continuous department look.

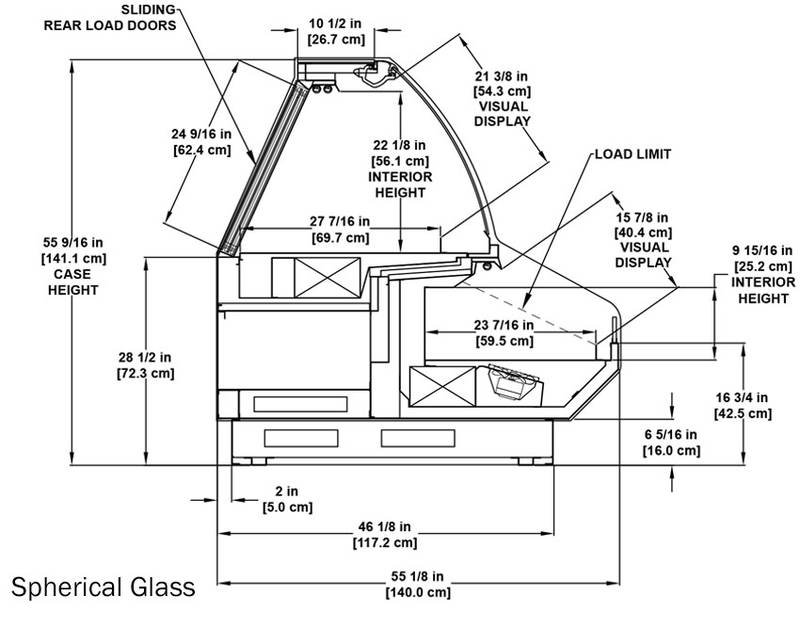

Please consult Hillphoenix Engineering Reference Manual for dimensions, plan views and technical specifications. Specifications subject to change without notice. Designed for optimal performance in store environments where temperature and humidity do not exceed 75°F and 55% R.H. Certified to UL 471, ANSI/NSF Standard 2,7,51 and CAN/CSA C22.2.
Oversized Single-Deck
Hillphoenix SD-R Spherical Combination Service, Refrigerated Dome and Self-Service, Refrigerated Display. Designed for bakery and deli applications with a spherical glass service dome profile. Available in several case lengths. Front profile lines up with the SD-H, SD-RG, and SD-R for a continuous department look.
Hillphoenix SD-R Spherical Combination Service, Refrigerated Dome and Self-Service, Refrigerated Display. Designed for bakery and deli applications with a spherical glass service dome profile. Available in several case lengths. Front profile lines up with the SD-H, SD-RG, and SD-R for a continuous department look.
Oversized Single-Deck
Features & Benefits
Refrigerated Dome:
- Dome height: 27-1/16” H.
- Stainless steel outside back.
- 3/8” T glass dome top.
- Reflective rear load doors with black frames.
- Single-pane, regular glare spherical curved glass with lift-up glass hardware.
- Painted black metal interior and trim.
- Black painted metal flat bottom merchandising deck.
- Clearvoyant® LED dual top lighting.
- Energy efficient fans.
- Solar digital thermometer.
- Remote DX refrigeration package.
Refrigerated Base:
- Sled runner base construction.
- Overall case dimensions: 55-9/16” H & 55-1/8” D.
- 6-5/16” H stainless steel toekick, front and sides.
- 45-degree front dieboard.
- Painted metal exterior.
- Stainless steel base trim, front, sides, & rear.
- Stainless steel exterior trim.
- Stainless steel outside back.
- Painted black metal interior and trim.
- 3-1/2” H x ½” T polished straight dieboard plex.
- Black painted metal flat bottom merchandising deck with 2” metal product stop.
- Clearvoyant® LED top lighting.
- Energy efficient fans.
- Solar digital thermometer.
- Rear electrical raceway location.
- Remote DX refrigeration package.
Available Options
- Available lengths: 4’, 6’, 8’, 10’, and 12’.
- Interior or exterior miters and wedges.
- Alternate 7-13/16” H toekick height (no change in overall height).
- Flat front profile.
- Bullet leg base with adjustable height toekick.
- Pedestal base or false pedestal base.
- Exterior finishes: exterior grade laminate or stainless steel.
- Interior finishes: painted white or stainless steel.
- Solid surface, poly, or stone case top.
- Non-glare front glass (not available on wedges).
- Front glass masking.
- row 10 shelf in the dome.
- Shelf type: glass, painted metal, or stainless steel.
- Shelf options: lighted, product stops, and price tag molding.
- 2” H bottom merchandising deck product stop.
- Dome: step, slant, or Z riser.
- Integrated case top scale stand or adjustable scale stand.
- Rear flip-up work boards (fixed or flip-up) in poly, stainless steel, or solid surface.
- Paper cutters.
- ISO outlet/CON outlets (specify vertical or horizontal placement on rear).
- Clear rear load doors.
- Gray rear load door frames.
- 20-7/8” D dry rear storage: closed or open.
- Solid or full-view end panels with mirror-polished, stainless steel interior.
- Thermal divider.
- Cart bumper mounted on the front panel of the case.
- Cart bumper added to end panels.
- Front electrical raceway.
- Remote glycol or CO2 refrigeration packages.
Attributes
- Alternate Heights: -
- Case Depth / Footprint: 55-1/8"
- Case Height Standard: 55-9/16"
- Case Length: 4’, 6’, 8’, 10' and 12’
- Case Temp: Medium-Temp
- Case Type: Multi-Deck, Rear-Load, Remote, Service
- Department: Deli
- Door Type: -
- Interior Depth: top: 27-7/16" bottom: 23-3/8"
- Interior Height: top: 22-1/8" bottom: 9-15/16"
- Other Models: Bakery and deli. Also consider the PTD-GSD-R, PTD-RG, PTD-R-R, SD-R and SD-RG.
- Refrigerated Volume: -
- Remote / Self-Contained: Remote
- Retail Types: Food Service, Mass Merchandise, Membership & Warehouse
