S2SGC
Service Multi-Deck

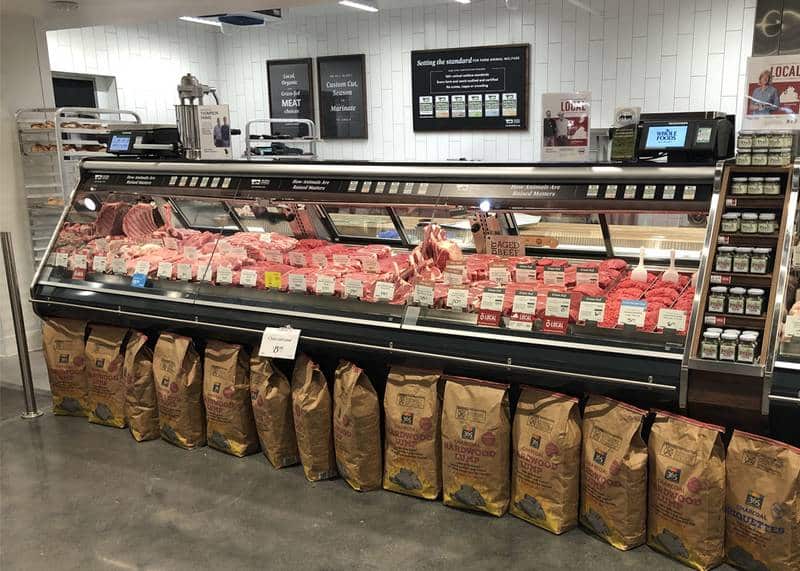

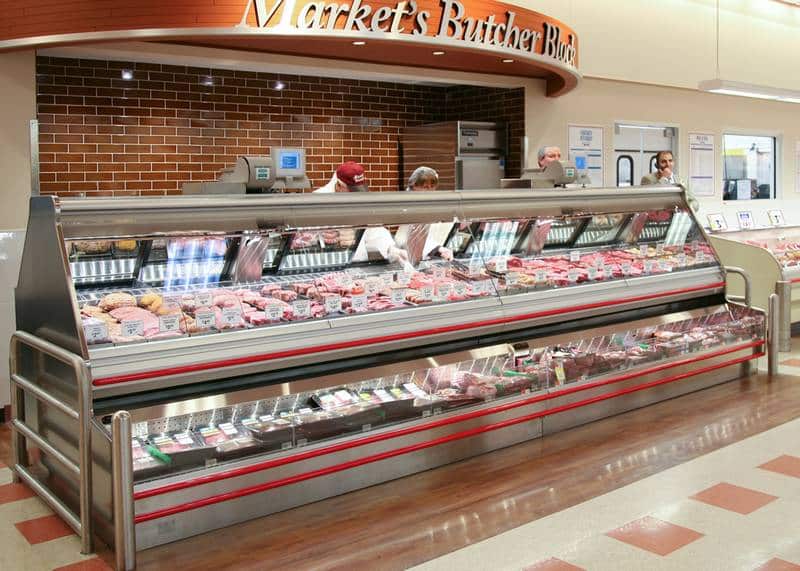

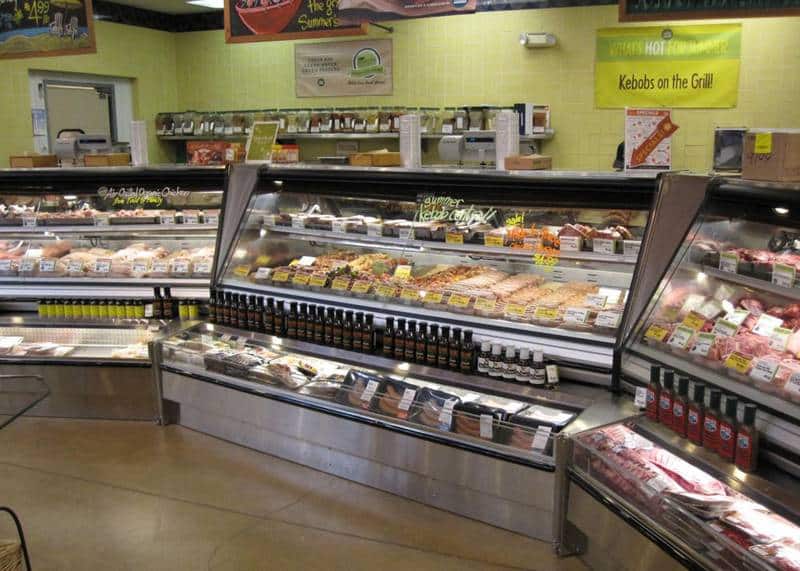

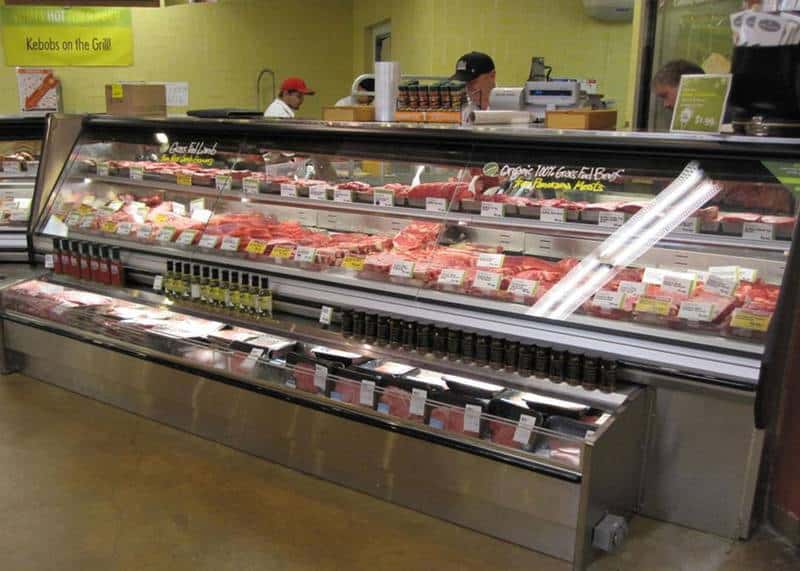

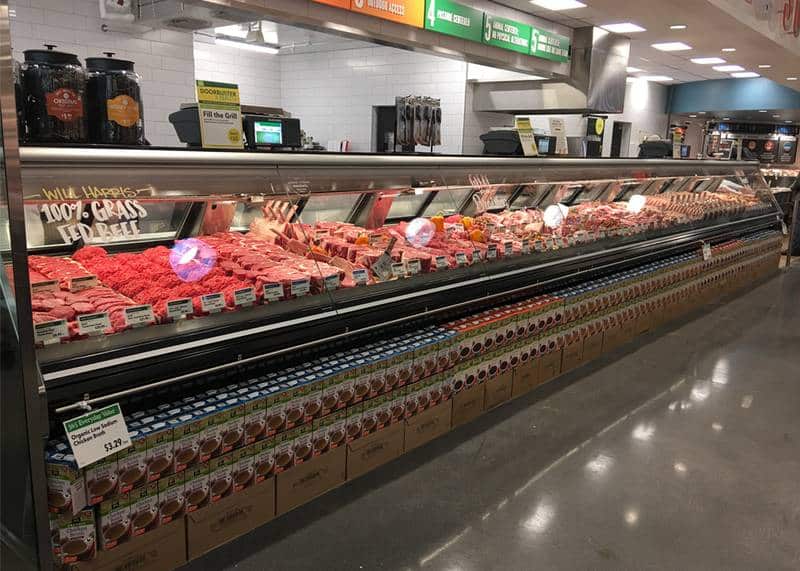

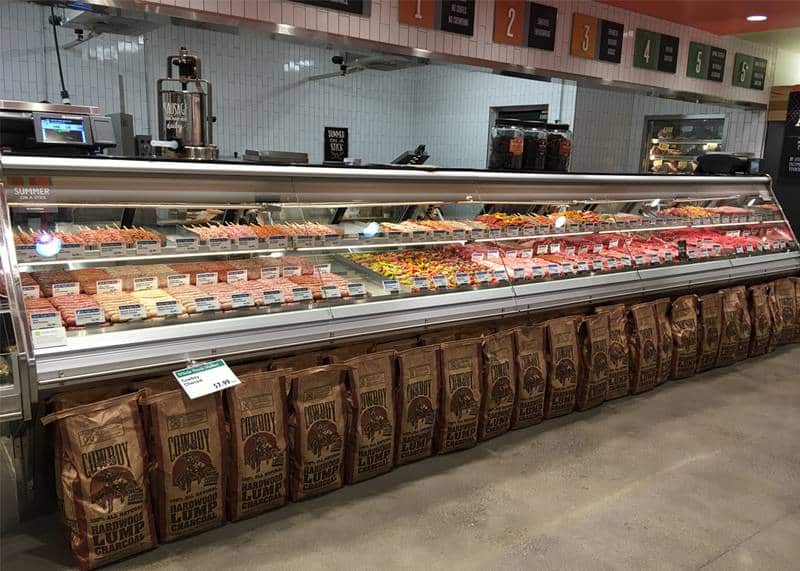

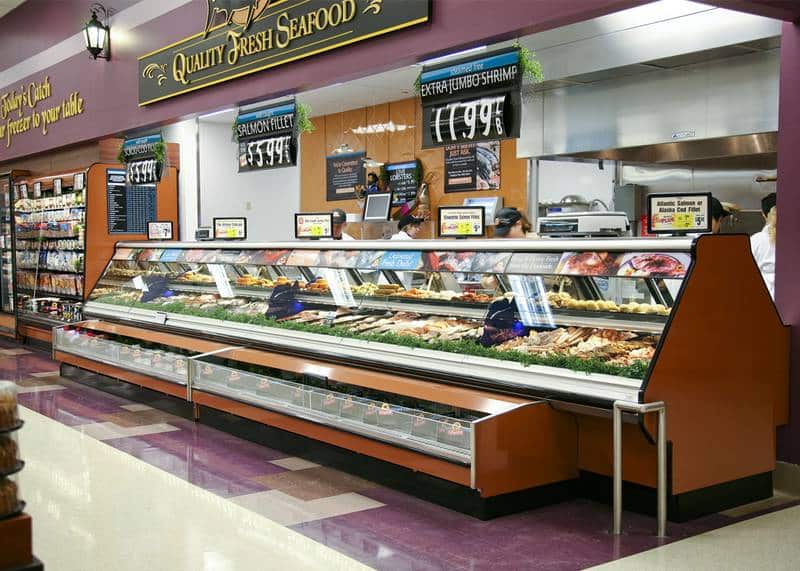

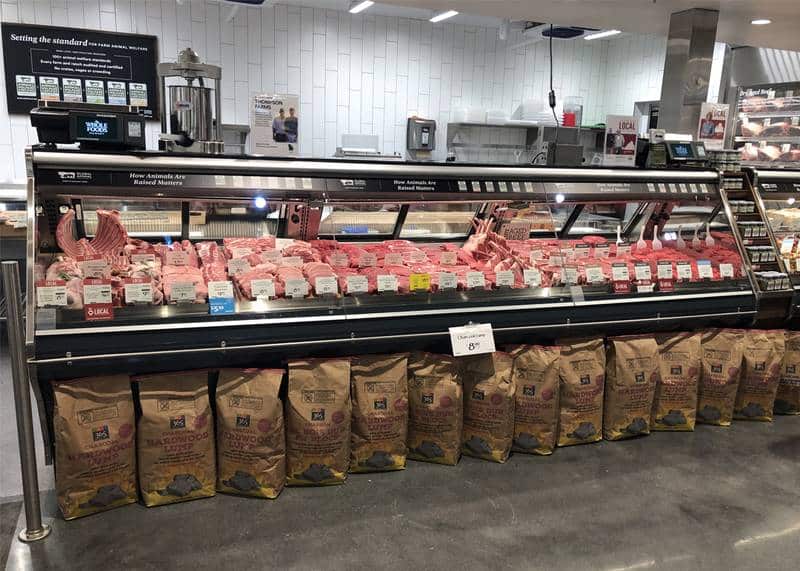

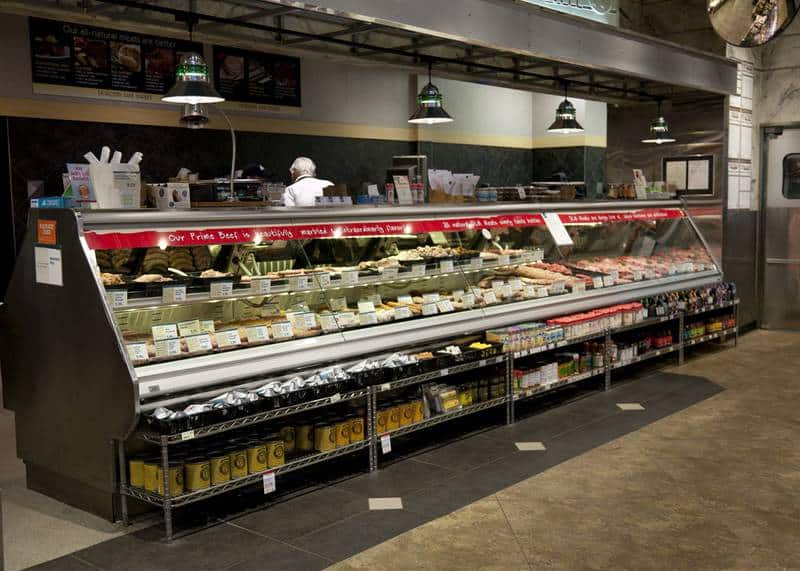

Hillphoenix S2SGC Multi-Deck, Service, Refrigerated, Coolgenix® Display. Designed for meat and seafood applications with flat front glass or with the optional curved glass. Several case lengths are available with the option of one Coolgenix shelf. The front profile lines up with the SSGC, S2SG-R, and S2SB for a continuous department look.
Hillphoenix S2SGC Multi-Deck, Service, Refrigerated, Coolgenix® Display. Designed for meat and seafood applications with flat front glass or with the optional curved glass. Several case lengths are available with the option of one Coolgenix shelf. The front profile lines up with the SSGC, S2SG-R, and S2SB for a continuous department look.
Please consult Hillphoenix Engineering Reference Manual for dimensions, plan views and technical specifications. Specifications subject to change without notice. Designed for optimal performance in store environments where temperature and humidity do not exceed 75°F and 55% R.H. Certified to UL 471, ANSI/NSF Standard 2,7,51 and CAN/CSA C22.2.
Service Multi-Deck
Hillphoenix S2SGC Multi-Deck, Service, Refrigerated, Coolgenix® Display. Designed for meat and seafood applications with flat front glass or with the optional curved glass. Several case lengths are available with the option of one Coolgenix shelf. The front profile lines up with the SSGC, S2SG-R, and S2SB for a continuous department look.
Hillphoenix S2SGC Multi-Deck, Service, Refrigerated, Coolgenix® Display. Designed for meat and seafood applications with flat front glass or with the optional curved glass. Several case lengths are available with the option of one Coolgenix shelf. The front profile lines up with the SSGC, S2SG-R, and S2SB for a continuous department look.
Features & Benefits
- C-frame with bullet leg base construction.

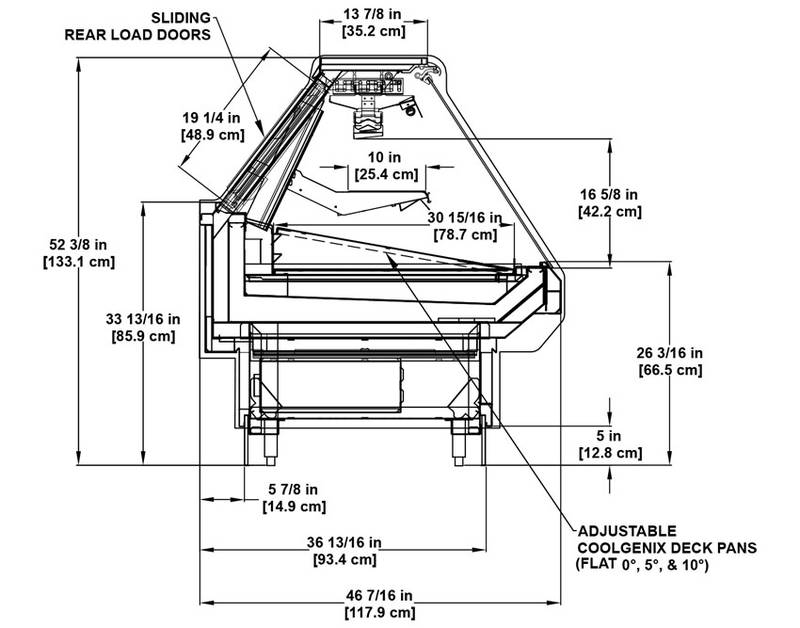

- Case dimensions: 52-3/8” H & 46-7/16” D.
- 16” H stainless steel toekick, front and sides.
- Painted metal exterior.
- Stainless steel base trim, front, sides, & rear.
- Stainless steel exterior trim.
- Stainless steel outside back and case top.
- Reflective rear load doors with black frames.
- Single-pane, regular glare flat glass with lift-up glass hardware.
- Painted matte black metal interior and trim.
- Clearvoyant® LED dual top lighting.
- Top gravity coil.
- Black Coolgenix® deck pans with standard length hoses with quick disconnect fittings and vertical pan supports.
- Solar digital thermometer.
- Rear electrical raceway location.
- Remote glycol refrigeration.
Available Options
- Available lengths: 4’, 6’, 8’, and 12’.
- Case heights available: 48” (remote only) and 56”.
- Sled runner base construction.
- Profile options: Flat front, master with nose bumper, or prestige bumper (silver anodized or painted)

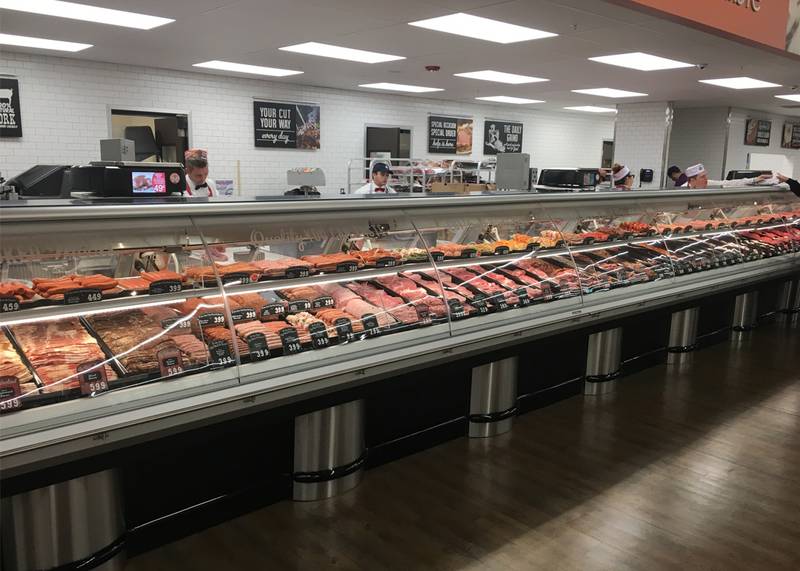

- Pedestal base or false pedestal base.
- Exterior finishes: exterior grade laminate or stainless steel.
- Interior finishes: painted white or stainless steel.
- Solid surface or stone case top.
- Non-glare front glass.

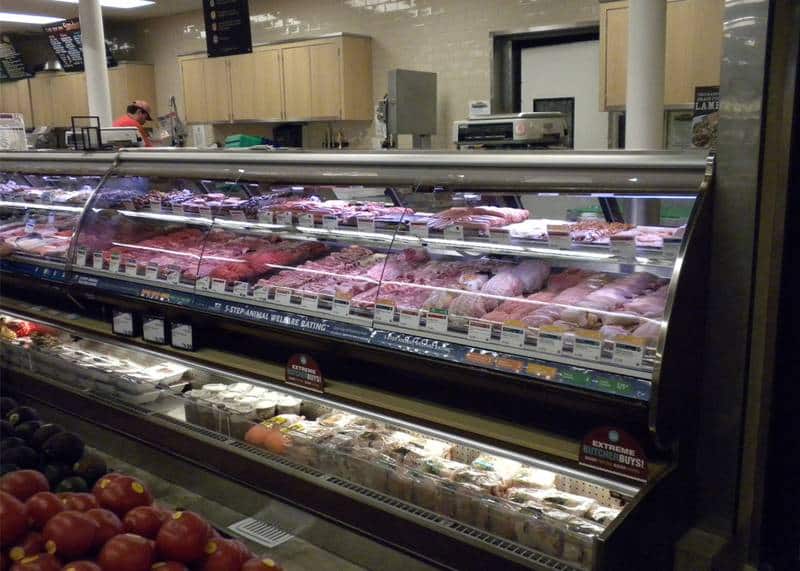

- Single-pane, regular glare curved glass with lift-up glass hardware.
- Front glass masking.
- (1) row 10” D black painted Coolgenix shelf with PTM.
- LED undershelf lighting.
- Second row of LED canopy lighting.
- Coolgenix pan colors: white or silver.
- Longer hoses for Coolgenix deck pans.
- Decorative plex ice trough for case front.
- Deck product stops: plex or stainless steel.
- 90-minute time delay-push button cleaning switch.
Attributes
- Alternate Heights: 48" and 56"
- Case Depth / Footprint: 46-7/16"
- Case Height Standard: 52-3/8"
- Case Length: 4’, 6’, 8’, 10' and 12’
- Case Temp: Medium-Temp
- Case Type: Multi-Deck, Rear-Load, Remote, Service
- Department: Meat & Seafood
- Door Type: -
- Interior Depth: 30-15/16"
- Interior Height: 16-5/8"
- Other Models: Meat and seafood. Also consider the SMD-RGC, GMD-RGC and SSGC
- Product Type: Specialty Cases
- Refrigerated Volume: -
- Remote / Self-Contained: Remote
- Retail Types: Food Service, Mass Merchandise, Membership & Warehouse, Supermarket
Related Products
SSGC
Hillphoenix SSGC Single-Deck, Refrigerated, Coolgenix® Display. Designed for meat and seafood applications with flat front glass or with the optional…
GMD-RGC
Hillphoenix GMD-RGC Multi-Deck, Service, Refrigerated Display. Designed with Coolgenix® conductive cooling for meat and seafood applications. Optional shelf is available.…

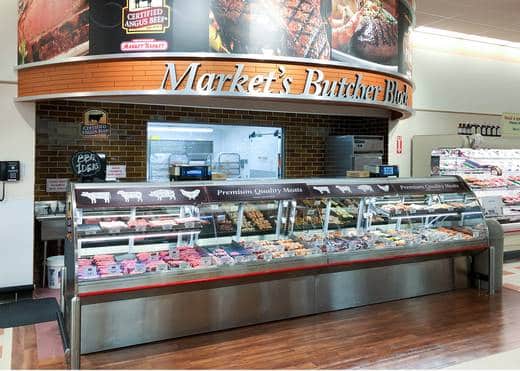

SMD-RGC
Hillphoenix SMD-RGC Multi-Deck, Service, Refrigerated Display. Designed with Coolgenix conductive cooling for meat and seafood applications with a curved lift-up…

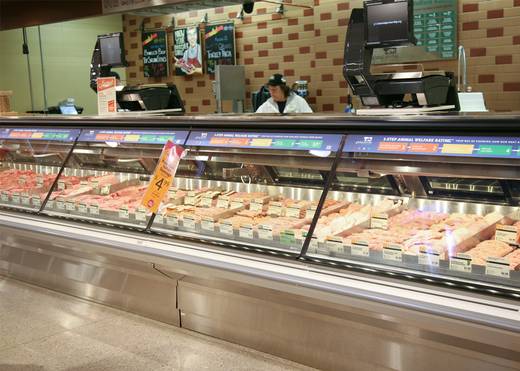

S2SG-R
