S2SG-R
Service Single-Deck
Hillphoenix S2SG-R Single-Deck, Service, Refrigerated, Gravity Coil Display. Designed for deli, meat, and seafood applications with a flat glass profile. Available in several lengths. The front profile lines up with the SSGC, S2SGC, and S2SB for a continuous department look.
Hillphoenix S2SG-R Single-Deck, Service, Refrigerated, Gravity Coil Display. Designed for deli, meat, and seafood applications with a flat glass profile. Available in several lengths. The front profile lines up with the SSGC, S2SGC, and S2SB for a continuous department look.
Please consult Hillphoenix Engineering Reference Manual for dimensions, plan views and technical specifications. Specifications subject to change without notice. Designed for optimal performance in store environments where temperature and humidity do not exceed 75°F and 55% R.H. Certified to UL 471, ANSI/NSF Standard 2,7,51 and CAN/CSA C22.2.
Service Single-Deck
Hillphoenix S2SG-R Single-Deck, Service, Refrigerated, Gravity Coil Display. Designed for deli, meat, and seafood applications with a flat glass profile. Available in several lengths. The front profile lines up with the SSGC, S2SGC, and S2SB for a continuous department look.
Hillphoenix S2SG-R Single-Deck, Service, Refrigerated, Gravity Coil Display. Designed for deli, meat, and seafood applications with a flat glass profile. Available in several lengths. The front profile lines up with the SSGC, S2SGC, and S2SB for a continuous department look.
Features & Benefits
- C-frame with bullet leg construction.

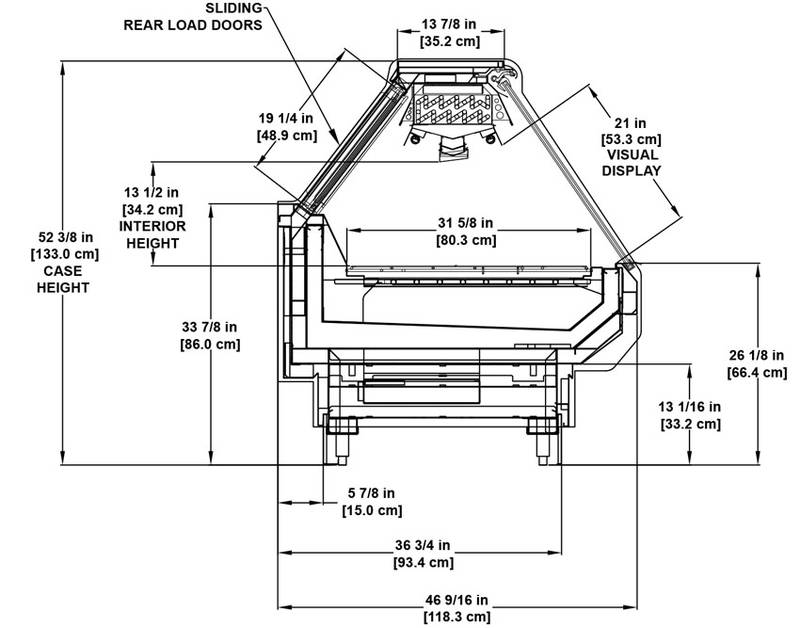

- Case dimensions: 52-3/8” H & 46-9/16” D.
- 15” H stainless steel toekick, front and sides.
- Angled front profile.
- Painted metal exterior.
- Stainless steel base trim, front, & sides.
- Stainless steel exterior trim.
- Painted metal outside back and rear trim.
- Stainless steel case top and rear sill.
- Clear rear load doors with black frames.
- Thermopane, insulated (5/8” T) regular glare flat glass with lift-up glass hardware.
- Gray glass gasket, wipe, and glass handle.
- Stainless steel interior and trim.
- Black plastic coil covers with a fixed black wire rack.
- Clearvoyant® LED dual top lighting.
- Solar digital thermometer.
- Rear electrical location.
- Remote DX gravity coil refrigeration package.
- Serpentine coil assist.
Available Options
- Available lengths: 4’, 6’, 8’, 10’, and 12’.
- Case heights available: 48” and 56”.
- Alternate toekick heights: 11” and 19”.
- Profile options: Flat front, master with nose bumper, or prestige bumper (silver anodized or painted).
- Pedestal base or false pedestal base.
- Exterior finishes: exterior grade laminate or stainless steel.
- Solid surface or stone case top.
- Front glass masking.
- Thermopane, insulated (5/8” T) regular glare curved glass with lift-up glass hardware.
- Black glass gasket, wipe, and glass handle.
- Adjustable wire rack.
- Heavy-duty stainless steel deck – no coil cover.
- White plastic coil covers.
- Slant riser or Z step.
- Ice pans for ice application.
- Integrated case top scale stand or adjustable scale stand.
- Rear flip-up work boards (fixed or flip-up) in poly, stainless steel, or solid surface.
- Paper cutters.
- ISO outlet/CON outlets (specify vertical or horizontal placement on rear).
- Reflective rear load doors.
- Gray rear load door frames.
- Solid or full-view end panels with mirror-polished, stainless steel interior.
- Thermal divider.
- Cart bumper mounted on the front panel of the case.
- Cart bumper added to end panels.
- Remote glycol or CO2 refrigeration packages.
Attributes
- Alternate Heights: 48" and 56"
- Case Depth / Footprint: 46-9/16"
- Case Height Standard: 52-3/8"
- Case Length: 4’, 6’, 8’, 10' and 12’
- Case Temp: Medium-Temp
- Case Type: Multi-Deck, Rear-Load, Remote, Service
- Department: Deli
- Door Type: -
- Interior Depth: 31-5/8"
- Interior Height: 13-1/2"
- Other Models: Deli-meat, cheese, sandwiches and salads. Meat and seafood. Also consider BMD-RG, SGM, SGMO, SSFM-RG, GMD-RG and SMD-RG
- Product Type: Specialty Cases
- Refrigerated Volume: -
- Remote / Self-Contained: Remote
- Retail Types: Food Service, Mass Merchandise, Membership & Warehouse, Supermarket
