S2SB-R
Service Multi-Deck
Hillphoenix S2SB-R Multi-Deck, Service, Refrigerated Display. Designed for deli applications with flat front glass or with the optional curved glass. Several case lengths are available with the option of up to two rows of shelves. The front profile lines up with the SSGC, S2SG-R and S2SGC for a continuous department look.
Hillphoenix S2SB-R Multi-Deck, Service, Refrigerated Display. Designed for deli applications with flat front glass or with the optional curved glass. Several case lengths are available with the option of up to two rows of shelves. The front profile lines up with the SSGC, S2SG-R and S2SGC for a continuous department look.
Please consult Hillphoenix Engineering Reference Manual for dimensions, plan views and technical specifications. Specifications subject to change without notice. Designed for optimal performance in store environments where temperature and humidity do not exceed 75°F and 55% R.H. Certified to UL 471, ANSI/NSF Standard 2,7,51 and CAN/CSA C22.2.
Service Multi-Deck
Hillphoenix S2SB-R Multi-Deck, Service, Refrigerated Display. Designed for deli applications with flat front glass or with the optional curved glass. Several case lengths are available with the option of up to two rows of shelves. The front profile lines up with the SSGC, S2SG-R and S2SGC for a continuous department look.
Hillphoenix S2SB-R Multi-Deck, Service, Refrigerated Display. Designed for deli applications with flat front glass or with the optional curved glass. Several case lengths are available with the option of up to two rows of shelves. The front profile lines up with the SSGC, S2SG-R and S2SGC for a continuous department look.
Features & Benefits
- C-frame with bullet leg construction.

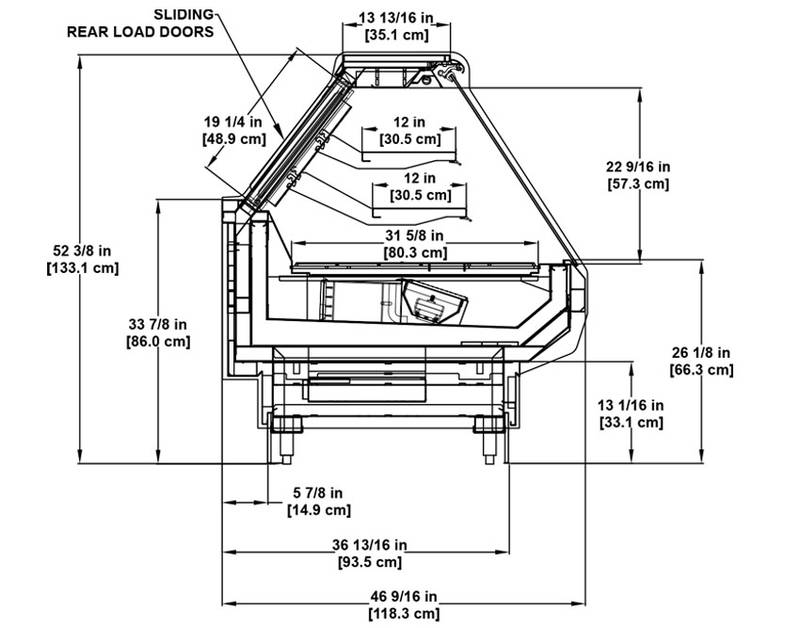

- Case dimensions: 52-3/8” H & 46-9/16” D.
- 15” H stainless steel toekick, front and sides.
- Angled front profile.
- Painted metal exterior.
- Stainless steel base trim, front, & sides.
- Stainless steel exterior trim.
- Painted metal outside back and rear trim.
- Stainless steel case top and rear sill.
- Clear rear load doors with black frames.
- Thermopane, insulated (5/8” T) regular glare flat glass with lift-up glass hardware.
- Gray glass gasket, wipe, and glass handle.
- Painted black metal interior and trim.
- Black plastic coil covers with a fixed black wire rack.
- Clearvoyant® LED top lighting.
- Energy efficient fans.
- Solar digital thermometer.
- Rear electrical location.
- Remote DX refrigeration package.
Available Options
- Available lengths: 4’, 6’, 8’, 10’, and 12’.
- Case heights available: 48” and 56”.
- Alternate toekick heights: 11” and 19”.
- Profile options: Flat front, master with nose bumper, or prestige bumper (silver anodized or painted).
- Pedestal base or false pedestal base.
- Exterior finishes: exterior grade laminate or stainless steel.
- Interior finishes: painted white or stainless steel.
- Solid surface or stone case top.
- Front glass masking.
- Thermopane, insulated (5/8” T) regular glare curved glass with lift-up glass hardware.
- Black glass gasket, wipe, and glass handle.
- Second row of LED canopy lighting.
- (2) rows of 12” D painted metal shelves with PTM.
- LED undershelf lighting.
- Adjustable wire rack.
- Heavy-duty stainless steel deck – no coil cover.
- White plastic coil covers.
- Slant riser or Z step.
- Ice pans for ice application.
- Integrated case top scale stand or adjustable scale stand.
- Rear flip-up work boards (fixed or flip-up) in poly, stainless steel, or solid surface.
- Paper cutters.
- ISO outlet/CON outlets (specify vertical or horizontal placement on rear).
- Reflective rear load doors.
- Gray rear load door frames.
- Solid or full-view end panels with mirror-polished, stainless steel interior.
- Thermal divider.
- Cart bumper mounted on the front panel of the case.
- Cart bumper added to end panels.
- Remote glycol or CO2 refrigeration packages.
Attributes
- Alternate Heights: 48" and 56"
- Case Depth / Footprint: 46-9/16"
- Case Height Standard: 52-3/8"
- Case Length: 4’, 6’, 8’, 10' and 12’
- Case Temp: Medium-Temp
- Case Type: Multi-Deck, Rear-Load, Remote, Service
- Department: Deli
- Door Type: -
- Interior Depth: 31-5/8"
- Interior Height: 22-9/16"
- Other Models: Deli-meat, cheese, sandwiches, salads. ALSO consider the SMD-R, GMD-R, BMD-R, SSA-R and SSF-R
- Product Type: Specialty Cases
- Refrigerated Volume: -
- Remote / Self-Contained: Remote
- Retail Types: Food Service, Mass Merchandise, Membership & Warehouse, Supermarket
