QTM
Self-Service Multi-Deck

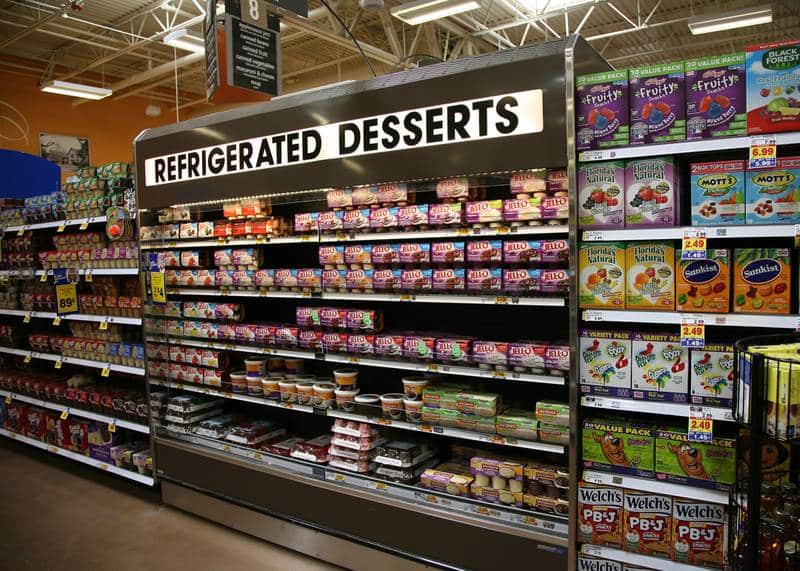

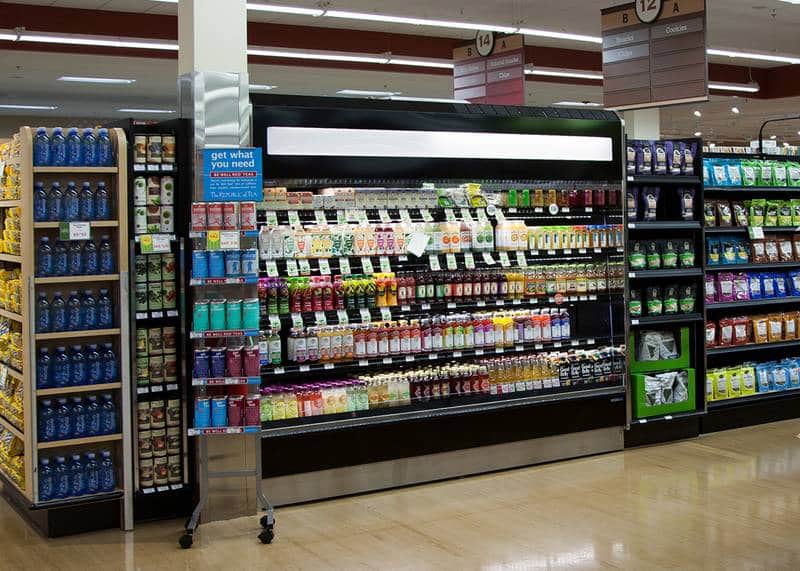

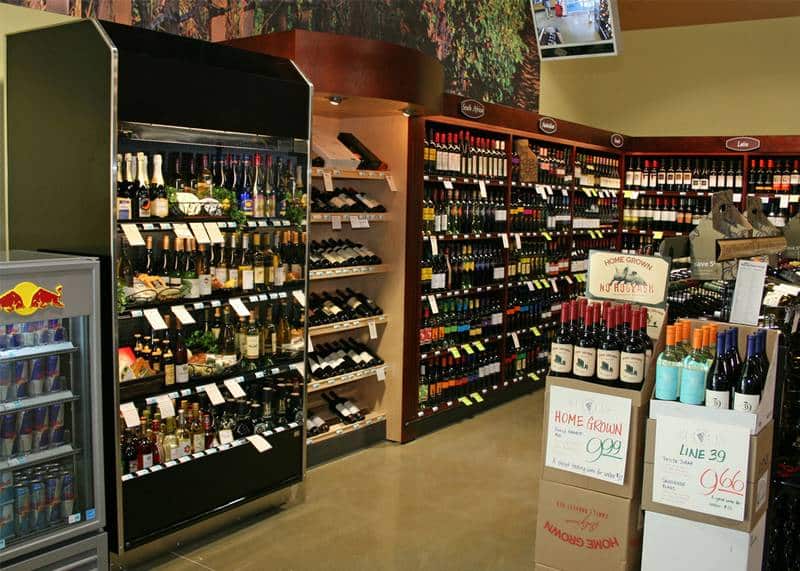

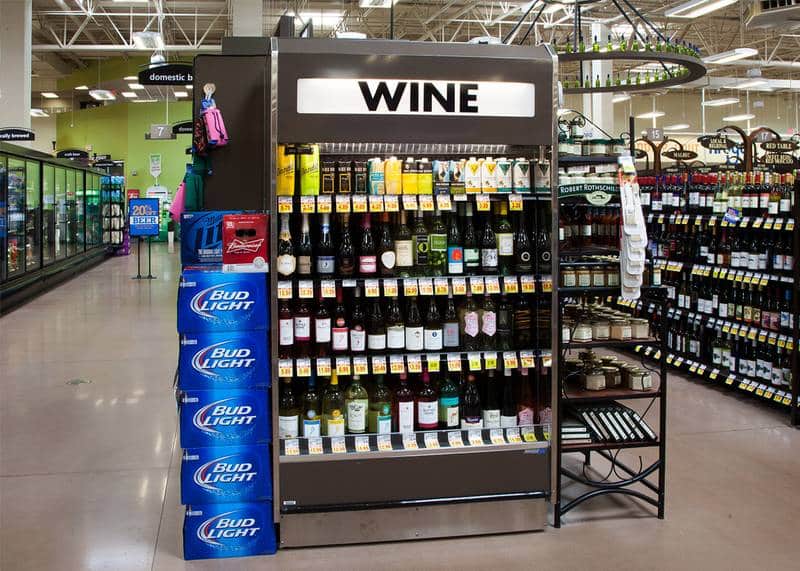

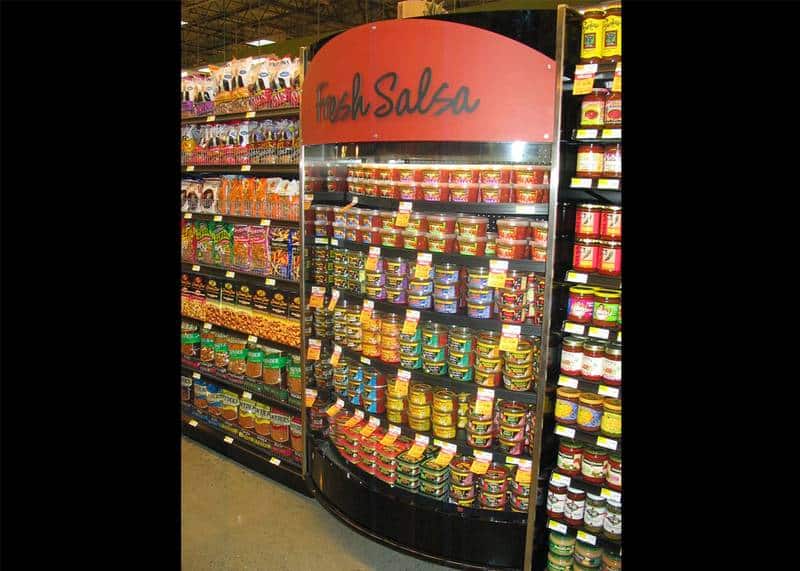

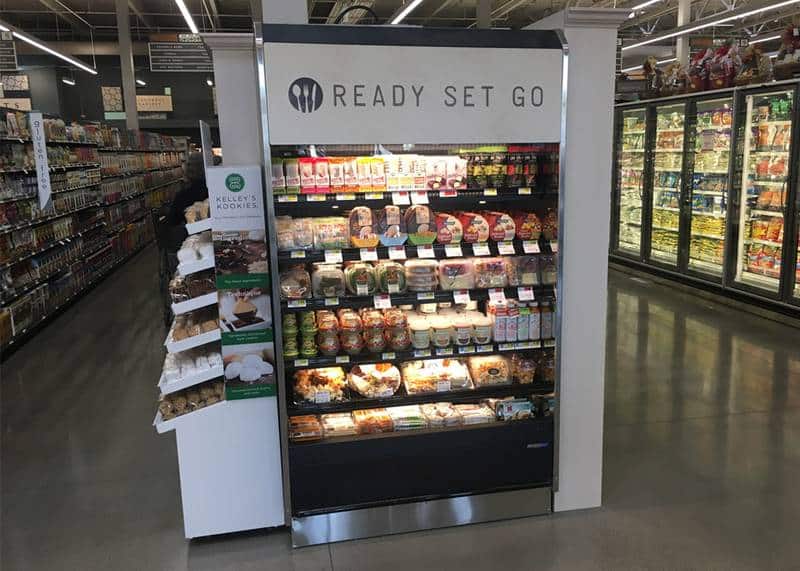

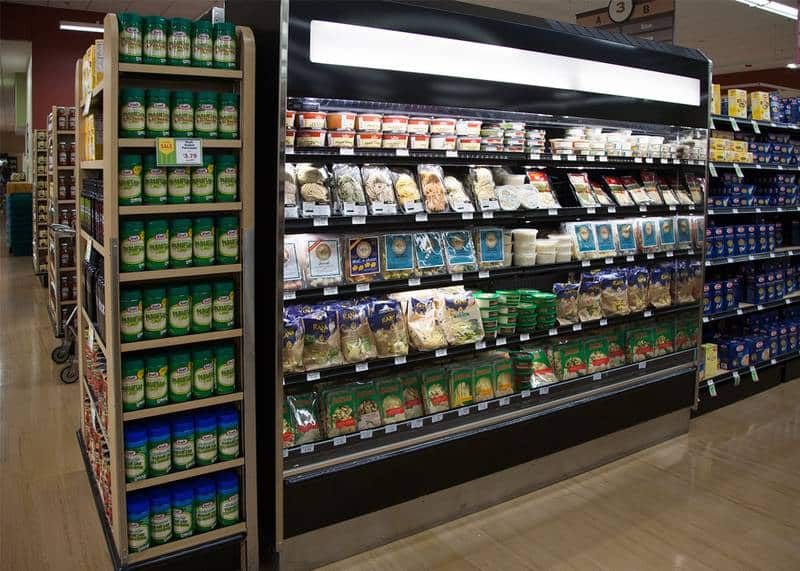

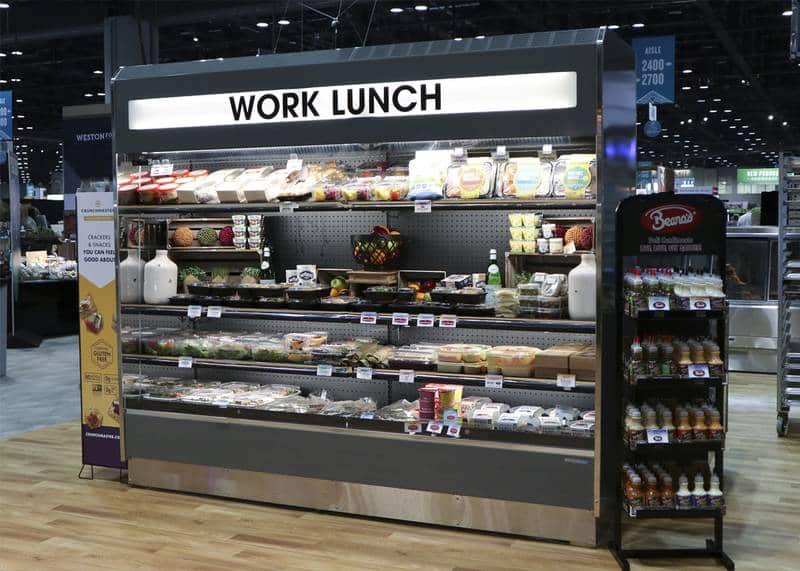

Hillphoenix QTM Multi-Deck, Self-Service, Refrigerated Display. Designed for prepackaged bakery, beverage, dairy, deli, and produce applications. A top mount self-contained display case offered in three case depths: 24", 30", and 35". Up to four rows of shelves with several case lengths available. The 47" case length is standard with R-290 refrigerant.
Hillphoenix QTM Multi-Deck, Self-Service, Refrigerated Display. Designed for prepackaged bakery, beverage, dairy, deli, and produce applications. A top mount self-contained display case offered in three case depths: 24", 30", and 35". Up to four rows of shelves with several case lengths available. The 47" case length is standard with R-290 refrigerant.
Please consult Hillphoenix Engineering Reference Manual for dimensions, plan views and technical specifications. Specifications subject to change without notice. Designed for optimal performance in store environments where temperature and humidity do not exceed 75°F and 55% R.H. Certified to UL 471, ANSI/NSF Standard 2,7,51 and CAN/CSA C22.2.
Self-Service Multi-Deck
Hillphoenix QTM Multi-Deck, Self-Service, Refrigerated Display. Designed for prepackaged bakery, beverage, dairy, deli, and produce applications. A top mount self-contained display case offered in three case depths: 24", 30", and 35". Up to four rows of shelves with several case lengths available. The 47" case length is standard with R-290 refrigerant.
Hillphoenix QTM Multi-Deck, Self-Service, Refrigerated Display. Designed for prepackaged bakery, beverage, dairy, deli, and produce applications. A top mount self-contained display case offered in three case depths: 24", 30", and 35". Up to four rows of shelves with several case lengths available. The 47" case length is standard with R-290 refrigerant.
Features & Benefits
- Sled runner base construction.

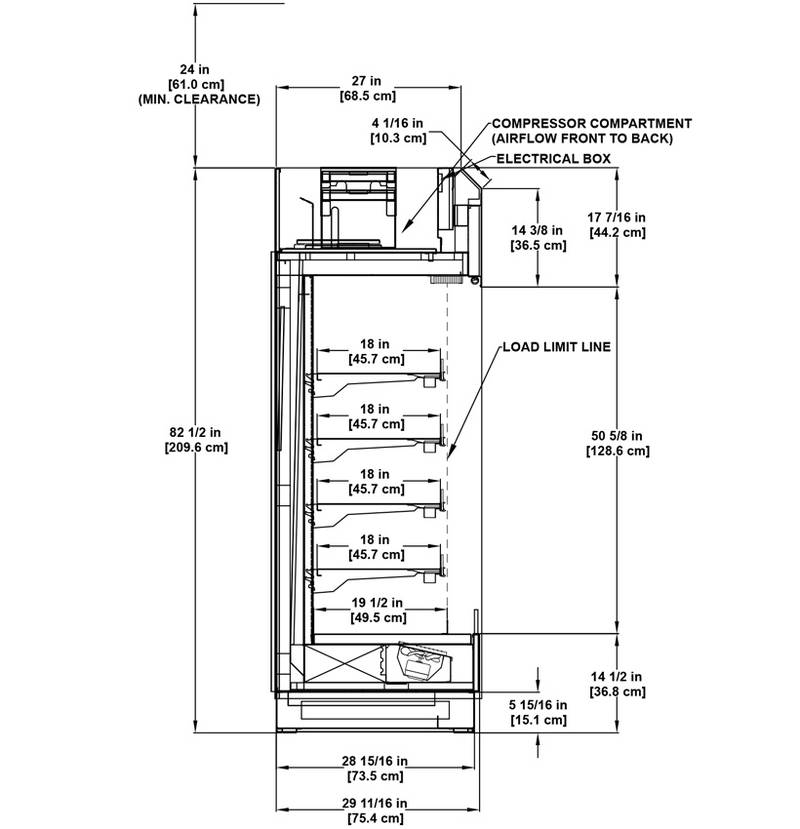

- Case dimensions: 82-1/2” H and 30” D.
- 5-15/16” H stainless steel toekick, front and sides.
- Solid cornice painted metal to match exterior.
- Outside back and rear toekick galvanized.
- Painted metal exterior.
- Stainless steel exterior trim.
- 3-1/2” H x 1/2” thick polished, straight die board plex.
- Painted black metal interior and trim.
- (4) rows each 18” adjustable flat black painted metal shelving.
- Shelf position: flat or angled.
- Painted black metal, flat bottom deck with 2” metal product stop.
- Clearvoyant® LED top lighting.
- Main power and On/off light switch.
- Energy efficient fans.
- Solar digital thermometer.
- Rear ballast electrical box location.
- 6’ cord and plug.
- Self-contained refrigeration package.
Available Options
- Case lengths: 47”, 72”, 95”, and 143”.

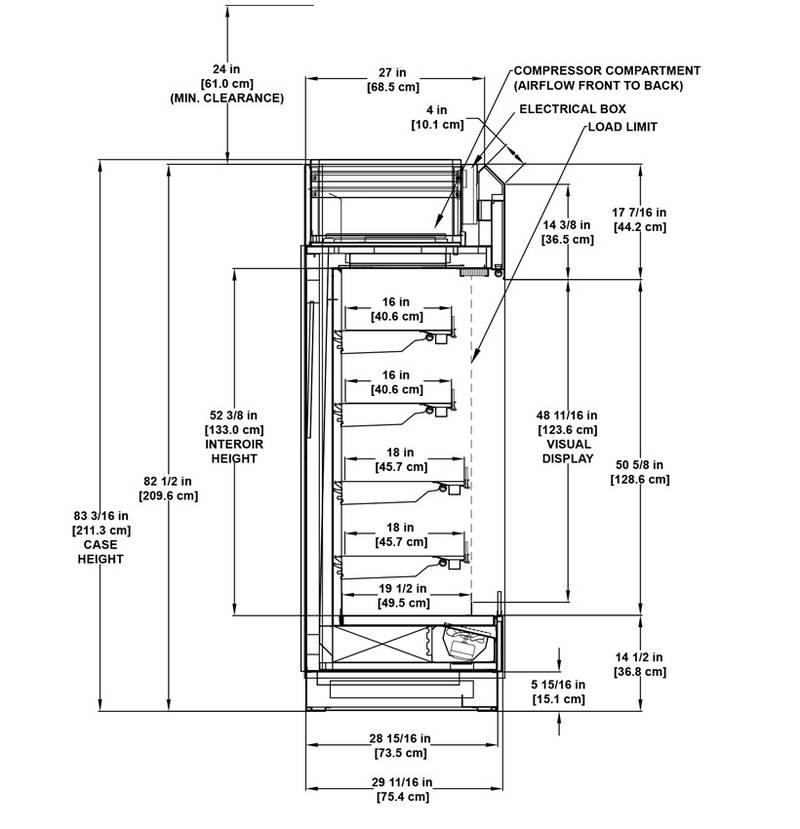

- 30” D x 47” L case comes standard with R-290 refrigerant.

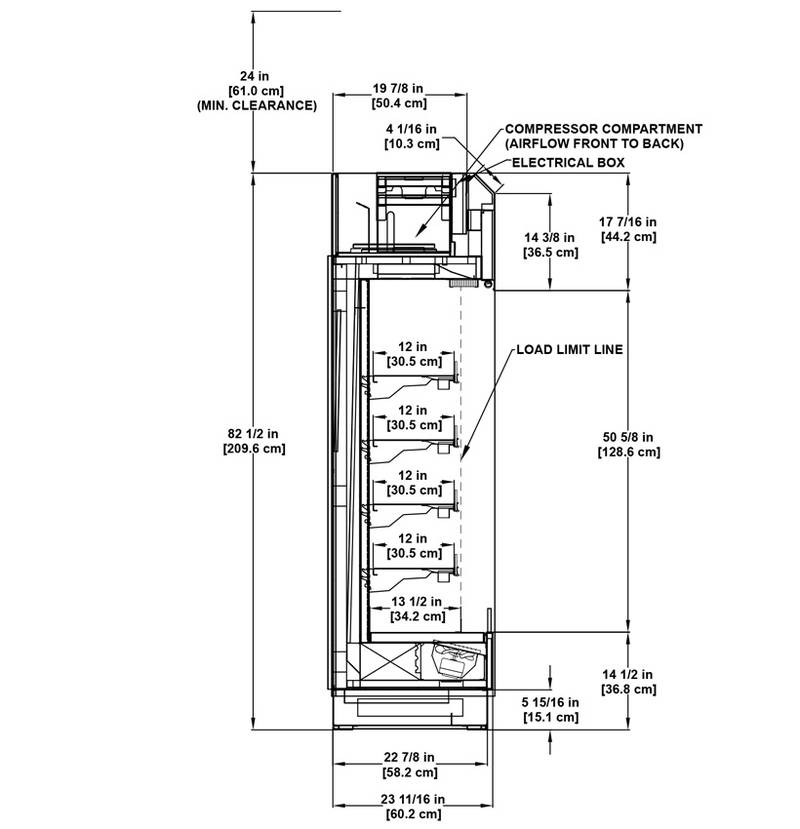

- Alternate case depth: 24” with (4) 12” rows of shelves.

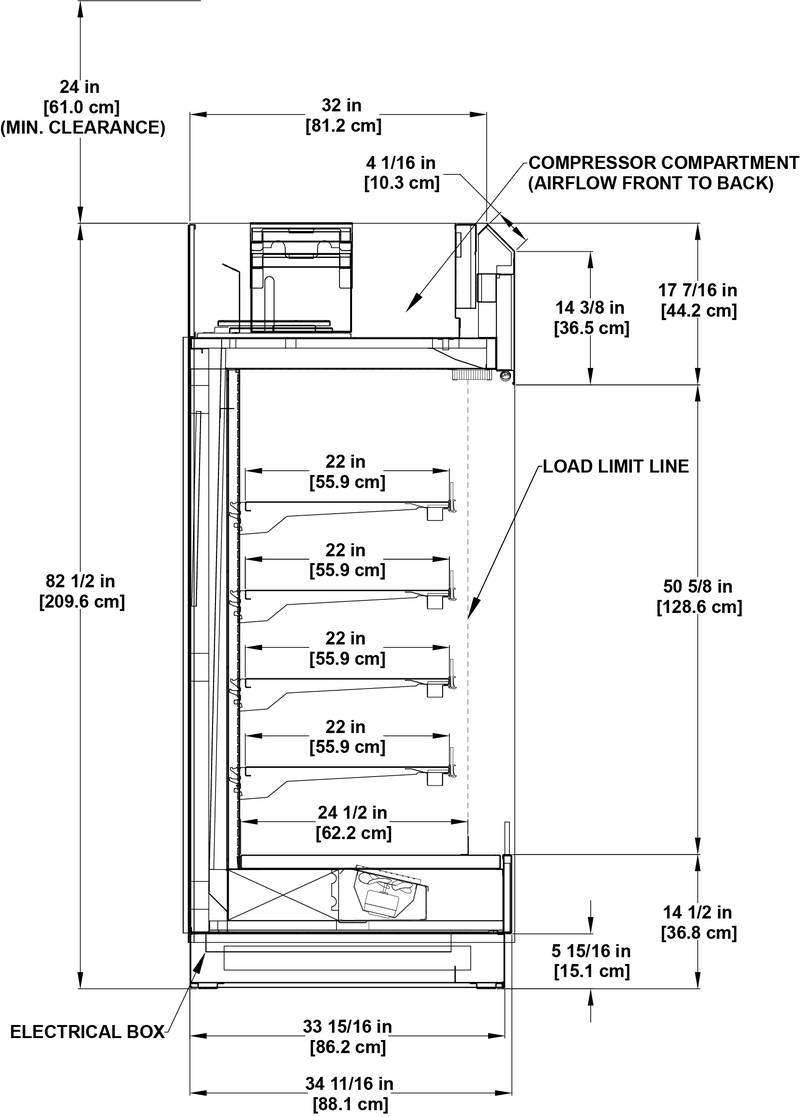

- Alternate case depth: 35” with (4) 22” rows of shelves.
- Exterior finishes exterior grade laminate or stainless steel.
- White or stainless steel case interior.
- Second-row Clearvoyant LED top light.
- Single or dual illuminated cornice – verbiage/lettering.
- Shelf options: lighting, product stops, and price tag molding.
- Mirror polished stainless steel finish on the inside back panel.
- Econofrost night cover with or without cassette.
- Solid or full-view end panels with mirror-polished, stainless steel interior.
- Thermal divider.
- Cart bumper mounted on the front panel of the case.
- Cart bumper added to end panels.
Attributes
- Alternate Heights: -
- Case Depth / Footprint: 29-11/16"
- Case Height Standard: 82-1/2"
- Case Length: 47", 72", 95", and 143"
- Case Temp: Medium-Temp
- Case Type: Multi-Deck, Self-Contained, Self-Service
- Department: Bakery, Beverage, Dairy, Deli, General, Produce
- Door Type: -
- Interior Depth: 19-1/2"
- Interior Height: 50-5/8"
- Other Models: Bakery, beverage, dairy, deli and produce. ALSO consider the CF-FS, CF-S, QC-R, ON5DMX-NRG, ON5DMXA-NRG ON5UM-NRG and ONNSA-NRG
- Product Type: Specialty Cases
- Refrigerated Volume: -
- Remote / Self-Contained: Self-Contained
- Retail Types: Convenience Store, Dollar Discount, Drug Store, Food Service, Mass Merchandise, Membership & Warehouse
