Hillphoenix PTD-RH SFC Self-Service, Hot Dome, Multi-Deck, Medium-Temperature Merchandiser for sandwiches, salads, beverages, pizzas and hot foods.
Hillphoenix PTD-RH SFC Self-Service, Hot Dome, Multi-Deck, Medium-Temperature Merchandiser for sandwiches, salads, beverages, pizzas and hot foods.

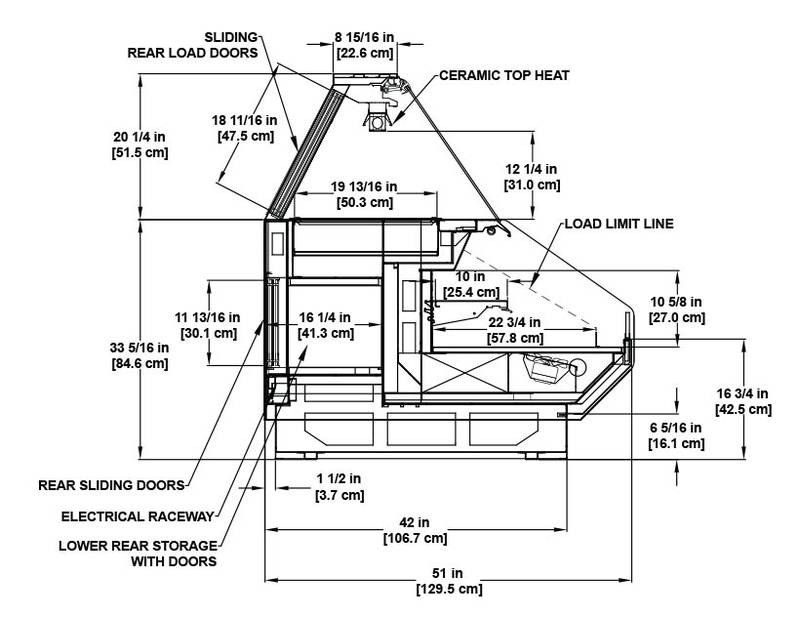

Please consult Hillphoenix Engineering Reference Manual for dimensions, plan views and technical specifications.Designed for optimal performance in store environments where temperatures and humidity do not exceed 75F and 55% R.H. Specifications are subject to change without notice. Certified to UL 471 and ANSI/NSF standard 7.
PTD-RH SFC
Hillphoenix PTD-RH SFC Self-Service, Hot Dome, Multi-Deck, Medium-Temperature Merchandiser for sandwiches, salads, beverages, pizzas and hot foods.
Hillphoenix PTD-RH SFC Self-Service, Hot Dome, Multi-Deck, Medium-Temperature Merchandiser for sandwiches, salads, beverages, pizzas and hot foods.
_800.jpg)
Features & Benefits
Base Model Features
- Available lengths – 4’, 6’, 8’, 10’ and 12’.
- Case dimensions: 34”H x 35”D.
- Rear storage dimensions: 34”H x 16”D.
- Black painted metal exterior.
- Solid end panels with mirror-polished, stainless steel interior.
- Stainless steel exterior trim, base trim and outside back panel.
- Dry rear storage with solid doors and grey door frames.
- Rear storage countertop options: Stainless steel or Corian deep night sky.
- Stainless steel case top/top sill.
- Front food guard glass and Lavi postless hardware.
- Matte black painted metal interior and trim.
- 1 row of non-lighted adjustable shelves: 0, 5 and 15° tilt.
- Aluminum price tag molding with 1/2” integrated product stop.
- 1 row high output LED Clearvoyant cornice light.
- 1/3-size condiment rail.
- Refrigeration:
– High-efficiency fan motors.
– Time-off defrost. - Conforms to UL Standard 471, NSF Standard 7 and CAN/CSA C22.2.
Available Options
Available Options
- 39-1/2” case height.
- 42” case depth.
- 18” deep rear storage box.
- Refrigerated rear storage.
- Rear storage counter top options: Stainless steel or Corian deep night sky.
- Case top/top sill: Poly top, solid surface or stone.
- Exterior finish options: Stainless steel, additional paint colors and laminate.
- 1” bumper on front panel of case and mounted on bottom of front panel.
- 1” bumper added to end panels.
- Food guard: Glass side returns, Lavi postless food guard posts and 6” glass shelf.
- White or stainless steel case interior.
- 1 additional row of shelving with PTM in the 39-1/2”H case option only.
- Under shelf lighting: LED Clearvoyant.
- End panels: Full-view glass, common end panels or scalloped end panels.
- Temperature control TStat.
- Solenoid.
- Temperature sensor.
Attributes
- Alternate Heights: -
- Case Depth / Footprint: -
- Case Height Standard: -
- Case Length: 4’, 5', 6’, 8’, 10' and 12'
- Case Temp: Hot Foods, Medium-Temp
- Case Type: Multi-Deck, Self-Service, Service
- Department: Beverage, Deli, Prepared Foods
- Door Type: -
- Interior Depth: -
- Interior Height: -
- Other Models: -
- Refrigerated Volume: -
- Remote / Self-Contained: Remote and Hot
- Retail Types: Convenience Store, Drug Store
