PFH-C

PFH-C

Self-Service Multi-Deck Hot

Hillphoenix PFH-C Multi-Deck, Self-Service, Hot Food Display. Designed for maintaining hot food temperatures with dry-heat, long-wave, radiant heat system combined with convection heating. Available with up to two rows of heated shelves and in several case lengths.

Hillphoenix PFH-C Multi-Deck, Self-Service, Hot Food Display. Designed for maintaining hot food temperatures with dry-heat, long-wave, radiant heat system combined with convection heating. Available with up to two rows of heated shelves and in several case lengths.

Less

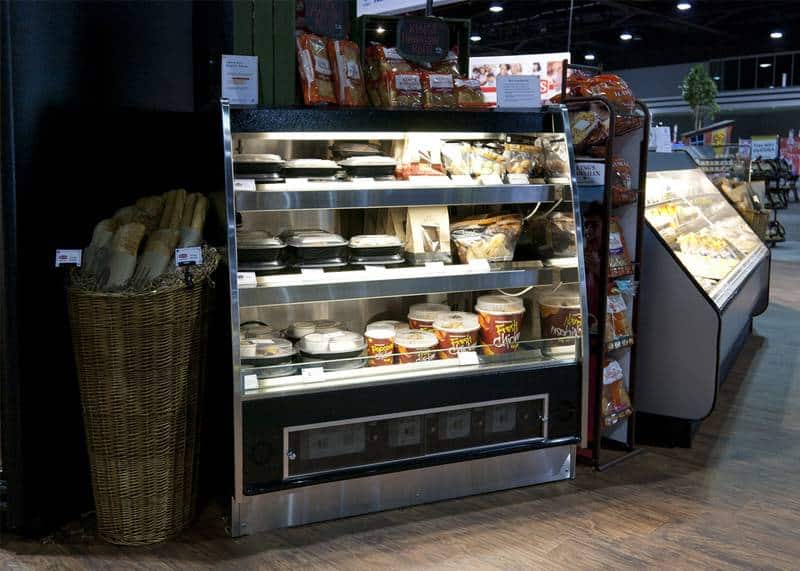

  • PFH-C-display-case-photo-deli-hot-9210.jpg

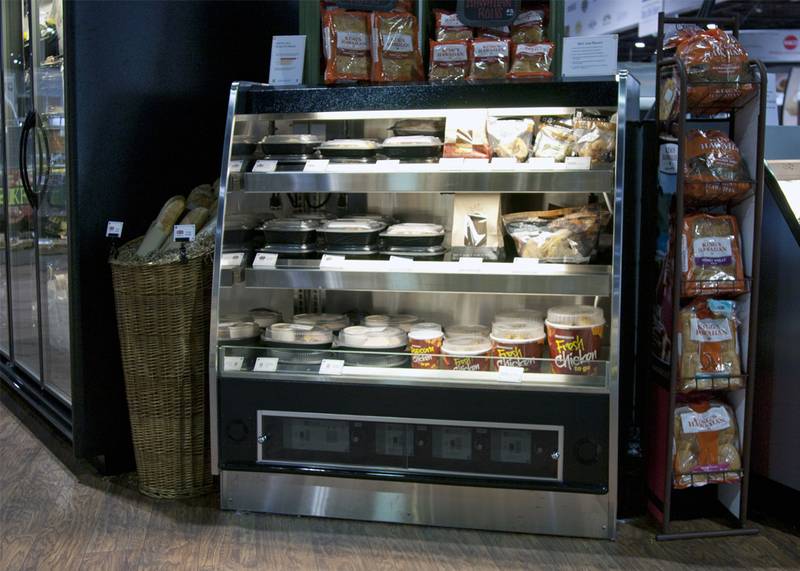

  • PFH-C-display-case-photo-deli-hot-9207.jpg

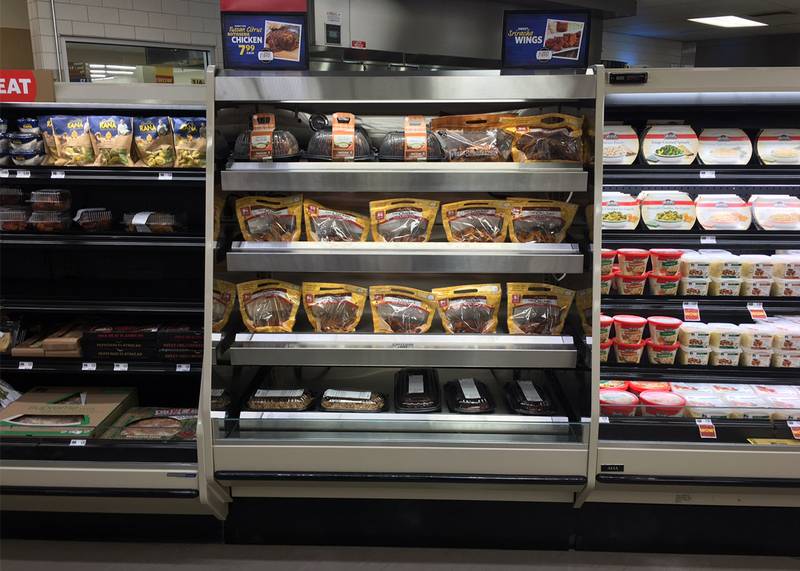

  • PFH-C-display-case-photo-deli-hot-3375.jpg
  • PFH-C-display-case-CAD-drawing-rv2.dwg

Installation Manuals

  • PFH-C-display-case-manual-rv1.pdf

Accessories

  • Standard-Bumper-Color-Chart-Brochure.pdf
  • Standard-Paint-Color-Chart-Brochure-082823-v2.pdf

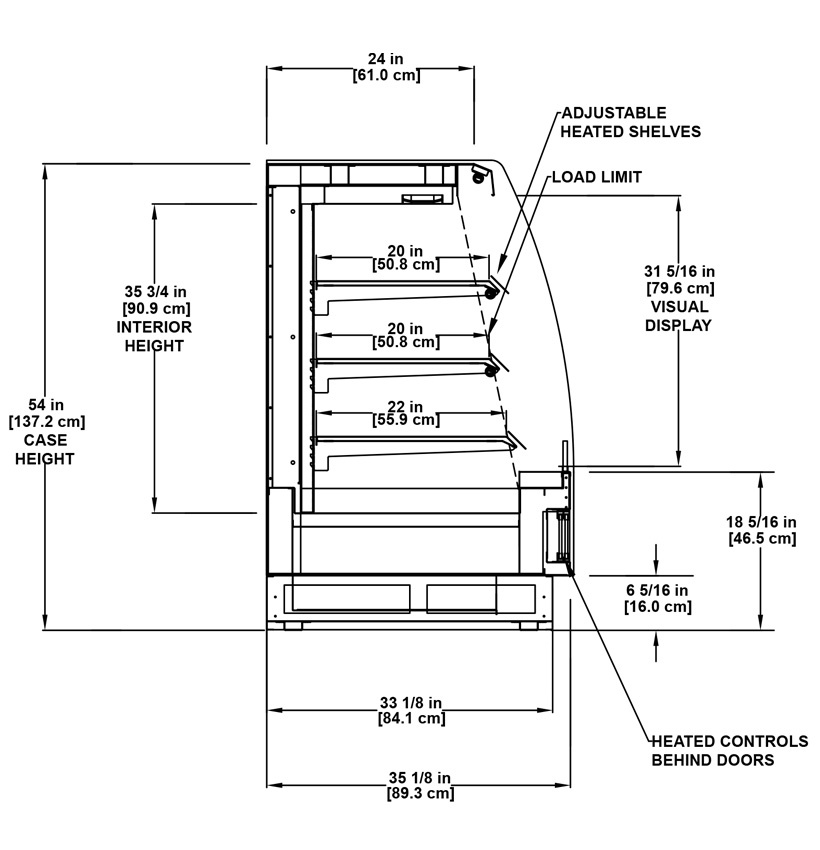

Cross Section

  • PFH-C-page-profile-v3.jpg

Sales Literature

  • PFH-C-display-case-sales-sheet-v4.pdf
  • HotFoods-cases-series-sales-sheet-rv3-v2.pdf
  • PF-series-sales-sheet.pdf

Technical Reference

  • PFH-C-display-case-tech-reference-sheet-rv9.pdf

Please consult Hillphoenix Engineering Reference Manual for dimensions, plan views and technical specifications. Specifications subject to change without notice. Designed for optimal performance in store environments where temperature and humidity do not exceed 75°F and 55% R.H. Certified to UL 471, ANSI/NSF Standard 7.

Self-Service Multi-Deck Hot

Hillphoenix PFH-C Multi-Deck, Self-Service, Hot Food Display. Designed for maintaining hot food temperatures with dry-heat, long-wave, radiant heat system combined with convection heating. Available with up to two rows of heated shelves and in several case lengths.

Hillphoenix PFH-C Multi-Deck, Self-Service, Hot Food Display. Designed for maintaining hot food temperatures with dry-heat, long-wave, radiant heat system combined with convection heating. Available with up to two rows of heated shelves and in several case lengths.

Less

Features & Benefits

  • Sled runner base construction.
  • Straight front profile to accommodate controls.
  • Standard 54”H with 6-5/16” base height.
  • Standard 24” case top depth.
  • Painted metal exterior.
  • Stainless steel exterior and base trim.
  • Stainless steel interior and case top.
  • Painted metal outside back.
  • 3-1/2” glass on die board top.
  • (2) rows of 20” heated stainless steel shelves.
  • Flat bottom heated merchandising deck.
  • LED top light.
  • LED undershelf lighting.
  • Low wattage, long wave radiant heat system.
  • Electronically controlled zone heating with Bluetooth connectivity.
  • Rear electrical raceway.

Available Options

  • Available lengths: 4’ and 6’.
  • Alternate height: 51”H.
  • 45° front die board profile (requires rear controls).
  • Alternate toe kick height includes: 7-13/16”H with no change to the overall height.
  • Bullet leg base with adjustable height toe kick.
  • Painted metal base trim.
  • Cart bumper.
  • Stainless steel exterior finish.
  • Solid surface or stone case top.
  • Rear controls.
  • Solid interior mirror-polish stainless steel, thermal glass divider or glass end panels.
  • Front electrical raceway.

Attributes

  • Alternate Heights: -
  • Case Depth / Footprint: 35-1/8"
  • Case Height Standard: 54"
  • Case Length: 4' and 6'
  • Case Temp: Hot Foods
  • Case Type: Multi-Deck, Self-Service
  • Department: Deli
  • Door Type: -
  • Interior Depth: 22"
  • Interior Height: 30-15/16"
  • Other Models: Deli-packaged hot food. Also consider the PFH and HTPT
  • Refrigerated Volume: -
  • Remote / Self-Contained: Remote
  • Retail Types: Convenience Store, Food Service, Mass Merchandise, Membership & Warehouse, Supermarket

Product Videos

How to Change and Access Hillphoenix Hot Food Case Bluetooth Controllers

How to Operate Hillphoenix Hot Controls

How to Replace a Hillphoenix Digital Hot Case Controller

How to Remove a Heat Shield From a Hillphoenix Self-service Grab-n-go Hot Case

How Does Conduction and Convection Heating Function in a Hot Food Display Cases
