PC-G-R

PC-G-R

Service Single-Deck

Hillphoenix PC-G-R Single-Deck, Service, Refrigerated Display Case. Designed for gourmet bakery applications. Available in several lengths with full view of the products at counter height.

Hillphoenix PC-G-R Single-Deck, Service, Refrigerated Display Case. Designed for gourmet bakery applications. Available in several lengths with full view of the products at counter height.

Less

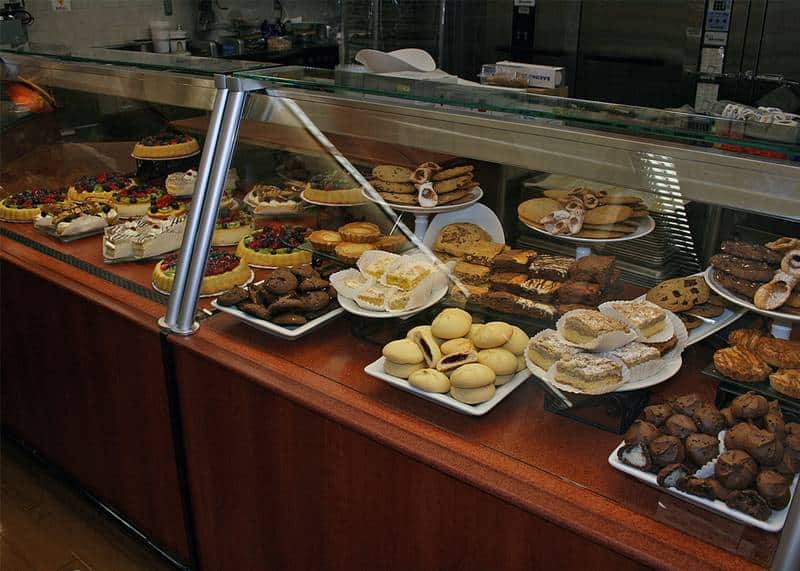

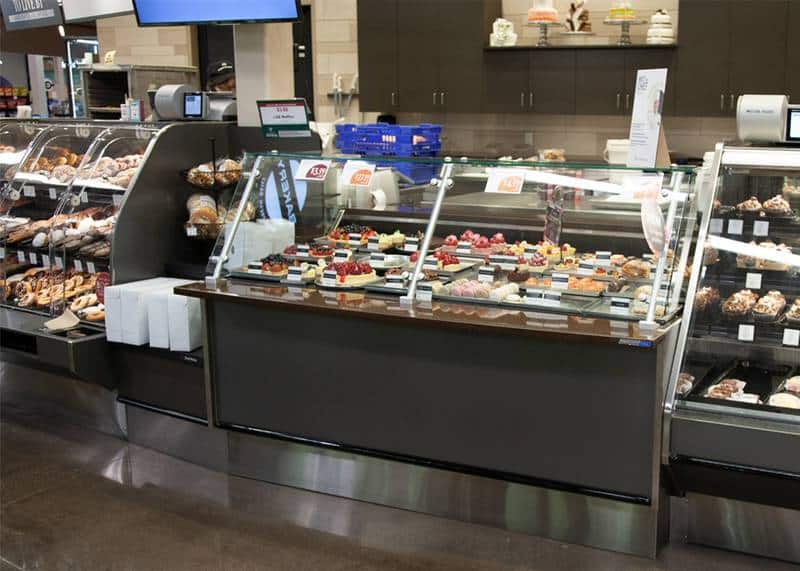

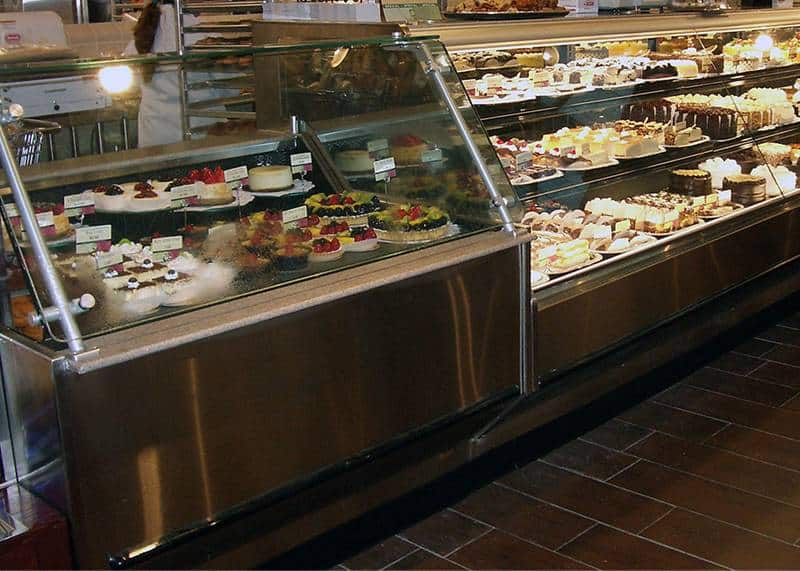

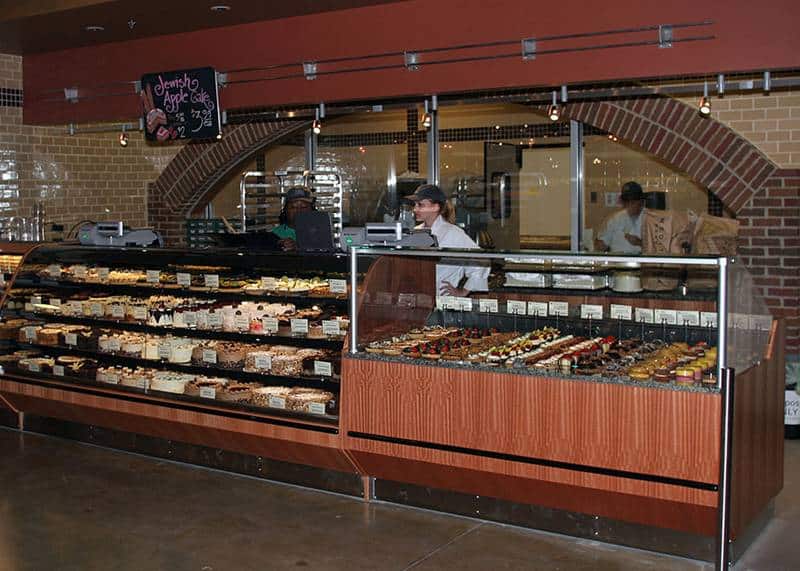

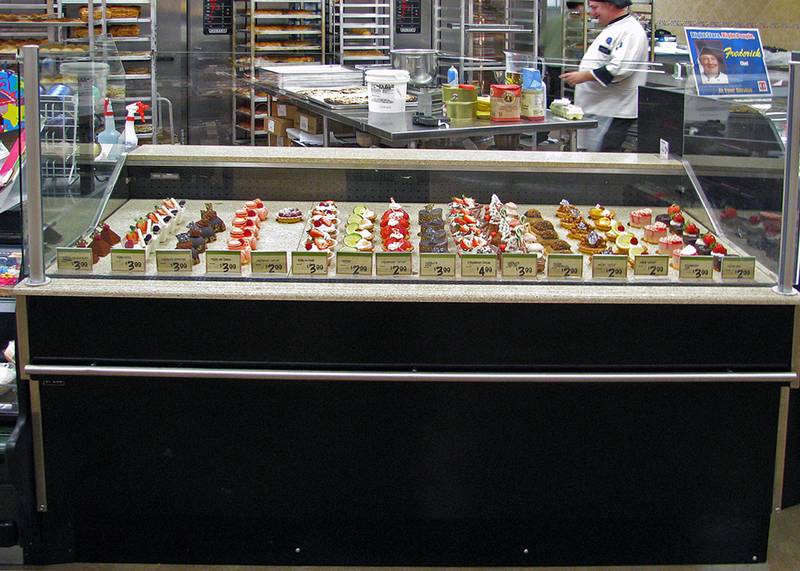

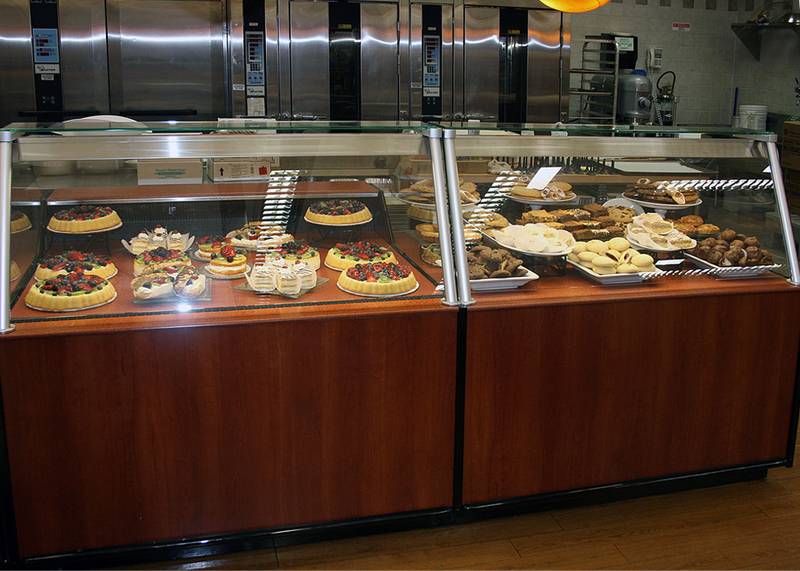

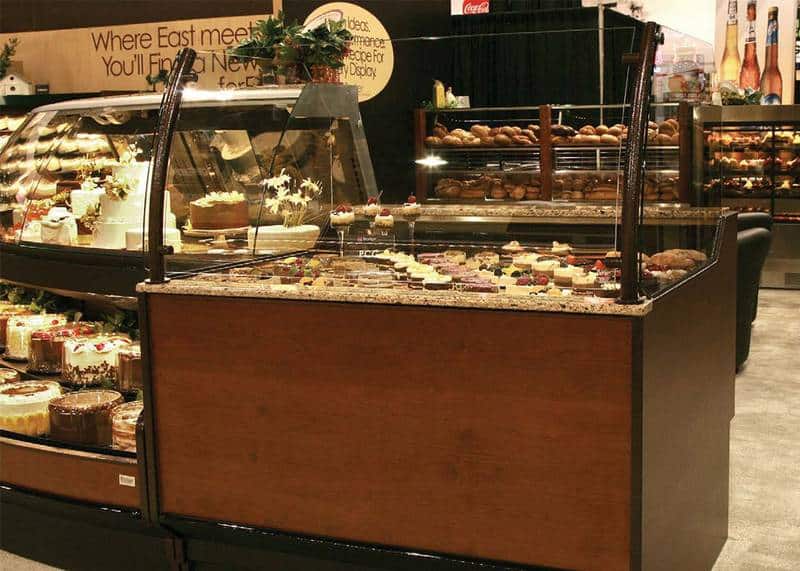

  • PC-G-R-display-case-photo-bakery-0001.jpg
  • PC-G-R-display-case-photo-bakery-0951.jpg
  • PC-G-R-display-case-photo-bakery-0017.jpg
  • PC-G-R-display-case-photo-bakery-0016.jpg
  • PC-G-R-display-case-photo-bakery-0015.jpg
  • PC-G-R-display-case-photo-bakery-0013.jpg
  • PC-G-R-display-case-photo-bakery-0011.jpg
  • PC-G-R-display-case-CAD-drawing-rv1.dwg

Installation Manuals

  • PC-G-R-display-case-manual.pdf

Accessories

  • Standard-Bumper-Color-Chart-Brochure.pdf
  • Standard-Paint-Color-Chart-Brochure-082823-v2.pdf

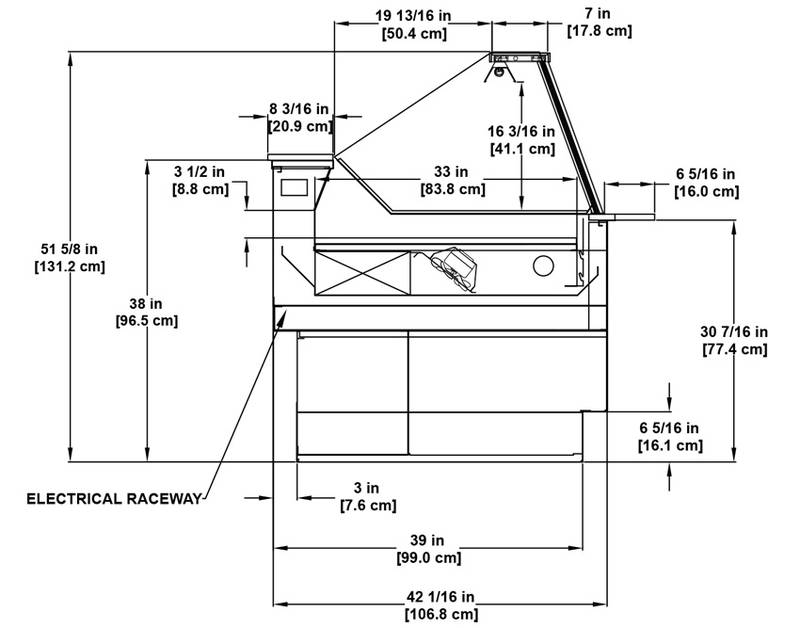

Cross Section

  • PC-G-R-page-profile-rv1.jpg

Sales Literature

  • PC-G-R-display-case-sales-sheet-v1.pdf
  • Bakery-case-category-sales-sheet.pdf

Technical Reference

  • PC-G-R-display-case-tech-reference-sheet-rv3.pdf

Please consult Hillphoenix Engineering Reference Manual for dimensions, plan views and technical specifications. Specifications subject to change without notice. Designed for optimal performance in store environments where temperature and humidity do not exceed 75°F and 55% R.H. Certified to UL 471, ANSI/NSF Standard 2,7,51 and CAN/CSA C22.2.



Service Single-Deck

Hillphoenix PC-G-R Single-Deck, Service, Refrigerated Display Case. Designed for gourmet bakery applications. Available in several lengths with full view of the products at counter height.

Hillphoenix PC-G-R Single-Deck, Service, Refrigerated Display Case. Designed for gourmet bakery applications. Available in several lengths with full view of the products at counter height.

Less

Features & Benefits

  • Sled runner base construction.
  • 38”H rear ledge / 51-5/8” to top of front glass.
  • Standard 6-5/16” toekick.
  • Painted metal exterior.
  • Painted metal straight front ledge to match exterior.
  • Stainless steel exterior trim.
  • Stainless steel front, side and rear base trim.
  • Rear ledge and outside back painted metal to match exterior.
  • Black painted metal interior.
  • Interior trim to match interior.
  • Flat, painted metal, single deck display.
  • Single-pane, regular-glare fixed front glass with glass top shelf in grooved sneezeguard posts.
  • Glass side returns.
  • LED top light.
  • Rear electrical raceway.
  • Energy efficient fans.
  • Remote DX refrigeration package.

Available Options

  • Exterior standard grade laminate.
  • Painted base and end panel trim.
  • Stainless steel outside back finish.
  • Non-glare glass.
  • Cart bumper.
  • Non-glare glass.
  • Solid surface, polytop or stainless steel scale stand.
  • Stone, solid surface, polytop or stainless steel bottom shelf and back ledge.
  • Remote glycol or CO2 refrigeration package.

Attributes

  • Alternate Heights: -
  • Case Depth / Footprint: 42-1/16"
  • Case Height Standard: 51-5/8"
  • Case Length: 4’, 6’, 8’, 10', and 12
  • Case Temp: Medium-Temp
  • Case Type: Remote, Service, Single-Deck
  • Department: Bakery
  • Door Type: -
  • Interior Depth: 33"
  • Interior Height: 16-3/16"
  • Other Models: Bakery - high end pastries and candies. Also consider the SMD-Candy
  • Refrigerated Volume: -
  • Remote / Self-Contained: Remote
  • Retail Types: Food Service, Mass Merchandise, Membership & Warehouse, Supermarket
