ONIZGG
Narrow Island
Hillphoenix ONIZGG Narrow, Dual-Temp Island for Frozen and Medium-Temperature, Food Merchandising Display Case. Dual-temperature control and flexibility allows for merchandising flexibility throughout the year. Narrow width maximizes space for retail display. Available with multiple different fronts, lengths, ends options and configurations.
Hillphoenix ONIZGG Narrow, Dual-Temp Island for Frozen and Medium-Temperature, Food Merchandising Display Case. Dual-temperature control and flexibility allows for merchandising flexibility throughout the year. Narrow width maximizes space for retail display. Available with multiple different fronts, lengths, ends options and configurations.
Please consult Hillphoenix Engineering Reference Manual for dimensions, plan views and technical specifications. Specifications subject to change without notice. Designed for optimal performance in store environments where temperature and humidity do not exceed 75°F and 55% R.H. Certified to UL 471, ANSI/NSF Standard 2,7,51 and CAN/CSA C22.2.
Narrow Island
Hillphoenix ONIZGG Narrow, Dual-Temp Island for Frozen and Medium-Temperature, Food Merchandising Display Case. Dual-temperature control and flexibility allows for merchandising flexibility throughout the year. Narrow width maximizes space for retail display. Available with multiple different fronts, lengths, ends options and configurations.
Hillphoenix ONIZGG Narrow, Dual-Temp Island for Frozen and Medium-Temperature, Food Merchandising Display Case. Dual-temperature control and flexibility allows for merchandising flexibility throughout the year. Narrow width maximizes space for retail display. Available with multiple different fronts, lengths, ends options and configurations.
Features & Benefits
- The narrow footprint of the ONIZGG is ideal for smaller spaces or when trying to maximize floor space.
- Large wrap-around glass provides maximum product visibility from all four sides of the cases.
- Deep bin depth easily accommodates maximum pack-out of product.
- Adjustable wire display racks can be placed at multiple levels for that “just right” display.
- ECM energy efficient fan motors are provided as a standard offering.
- Advanced coil and baffle design provides consistent temperatures throughout the spacious bin for maintaining product integrity.
- Integrated polymer bumper systems provide superior protection and durability.
- Superior exterior fit and finish for clean, eyecatching lines.
- Lift up fan plenum provides easy access for coil cleaning.
- Easily removable fan assembly.
- Removable castors for easy merchandiser unloading, movement and placement.
Available Options
- Available lengths: 5’, 6’, 8’, and 12’.
- Base frames available in different heights.
- Custom colors, finishes and textures available to meet any merchandising plan.
- Optional dual temp switch allows quick and easy change between medium and low temp applications for increased merchandising
- flexibility.
- A wide array of options are available for bumper types and location to provide the desired look and level of case protection.
- Two options for glass height are available (10” and 17”) to optimize the viewable area of the product.
- Insulated partitions for independent temperature operation.
- Electric or hot case defrost are available to meet your particular design preferences.
- CO2 applications are available.
- Optional electrical outlet can be installed in the kickplate for easy power access.

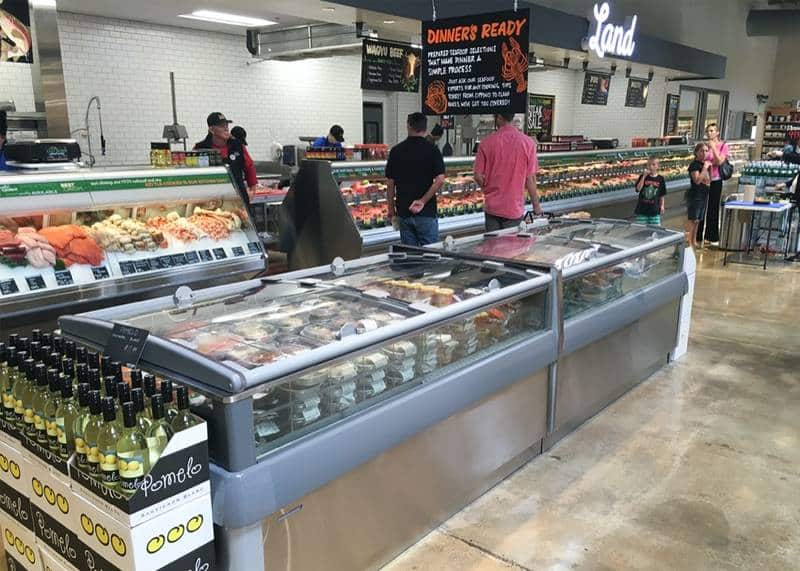

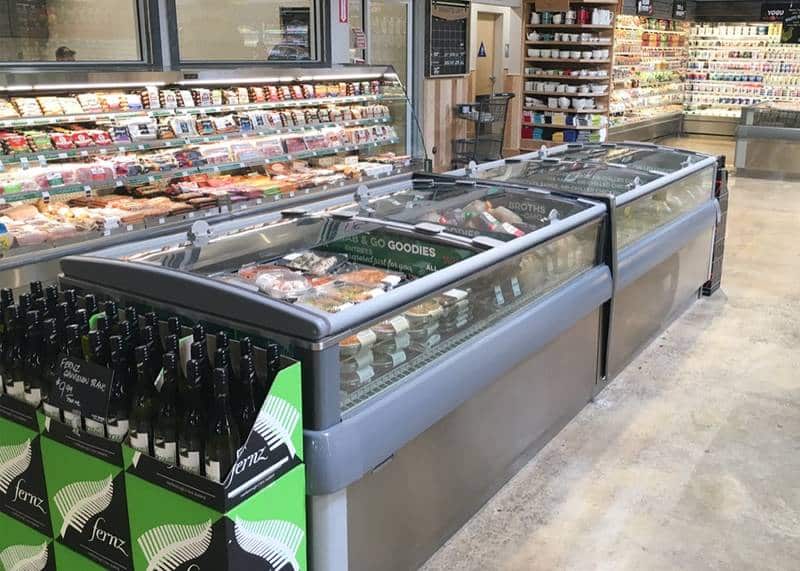

- Optional sliding glass doors are available for improved energy efficiency. These lids are installed by AMS in the store.
Attributes
- Alternate Heights: ONIZGGA
- Case Depth / Footprint: 44 1/8"
- Case Height Standard: 35 3/4"
- Case Length: 5', 6', 8' & 12'
- Case Temp: Low-Temp, Medium-Temp, Multi-Temp
- Case Type: End Cap, Island, Self-Contained, Self-Service, Single-Deck
- Department: Deli, Frozen Food, Meat & Seafood
- Door Type: -
- Interior Depth: 32 3/8"
- Interior Height: 15 1/4"
- Other Models: Best used for control and versatility that allows for merchandising flexibility throughout the year. Narrow width maximizes pack out for retail display.
- Product Type: Display Case
- Refrigerated Volume: 3.42 CF / LF
- Remote / Self-Contained: Remote
- Retail Types: Convenience Store, Dollar Discount, Drug Store, Mass Merchandise, Membership & Warehouse, Supermarket
