OB-R

OB-R

Self-Service Multi-Level Bins

Hillphoenix OB-R Single-Deck, Self-Service, Refrigerated Display. Designed for bulk, critical temp produce, and deli applications. Available in multiple bin configurations and as either remote or self-contained refrigeration.  The OB-1, 2, and 4 bin self-contained configurations utilize the environmentally friendly R-290 refrigerant.

Hillphoenix OB-R Single-Deck, Self-Service, Refrigerated Display. Designed for bulk, critical temp produce, and deli applications. Available in multiple bin configurations and as either remote or self-contained refrigeration.  The OB-1, 2, and 4 bin self-contained configurations utilize the environmentally friendly R-290 refrigerant.

Less

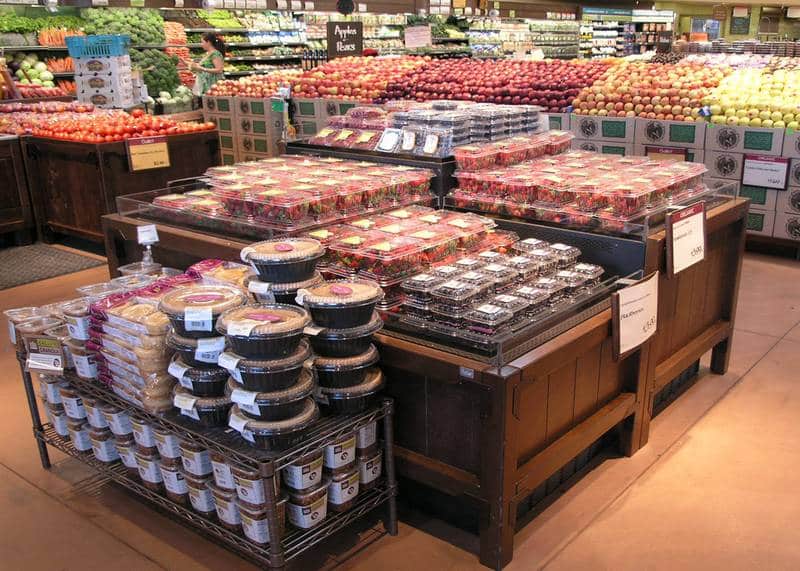

  • OB-SC-display-case-photos-Produce-4-Bin-0009.jpg

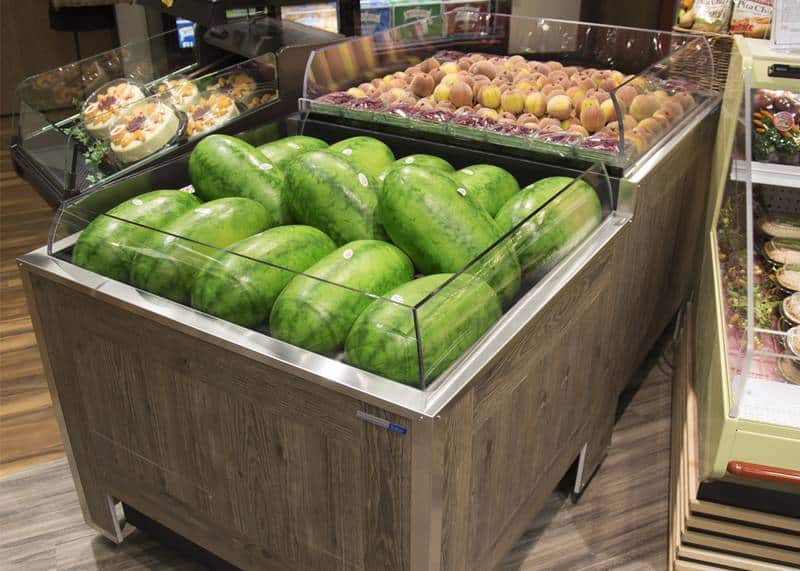

  • OB-SC-display-case-photos-Produce-2-bin-0001.jpg

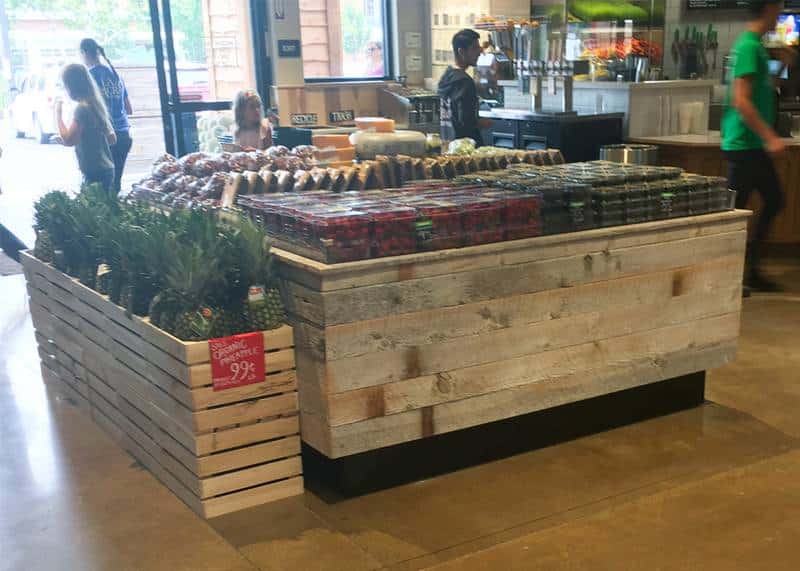

  • OB-R-display-case-photos-Produce-1887.jpg

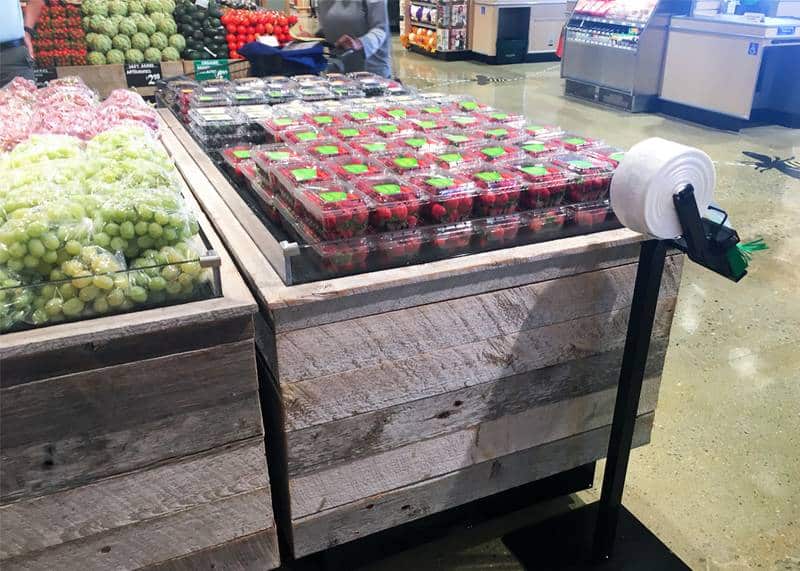

  • OB-R-display-case-photos-Produce-337.jpg

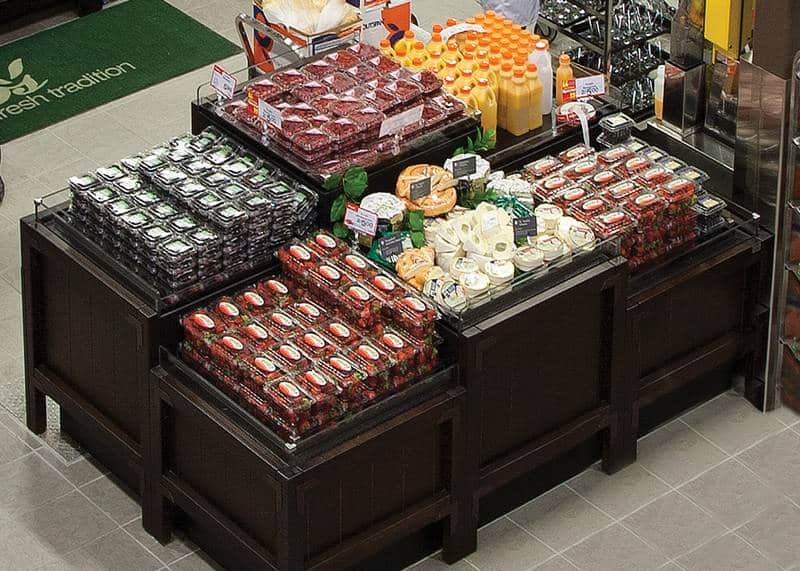

  • OB-R-display-case-photos-Produce-6-bin-0473.jpg
  • OB-1R-display-case-CAD-drawing-rv1.dwg
  • OB-1-SC-display-case-CAD-drawing.dwg
  • OB-1-SC-R290-display-case-CAD-drawing.dwg
  • OB-2R-display-case-CAD-drawing-rv1.dwg
  • OB-2-SC-display-case-CAD-drawing.dwg
  • OB-2-SC-R290-display-case-CAD-drawing.dwg
  • OB-4R-display-case-CAD-drawing-rv1.dwg
  • OB-4-SC-display-case-CAD-drawing.dwg
  • OB-4-SC-R290-display-case-CAD-drawing.dwg
  • OB-6R-display-case-CAD-drawing-rv1.dwg

Installation Manuals

  • OB-R-display-case-manual.pdf
  • OB-SC-R290-display-case-manual-rv3.pdf
  • OB-S-display-case-manual-rv2.pdf

Accessories

  • Standard-Paint-Color-Chart-Brochure-082823-v2.pdf

Cross Section

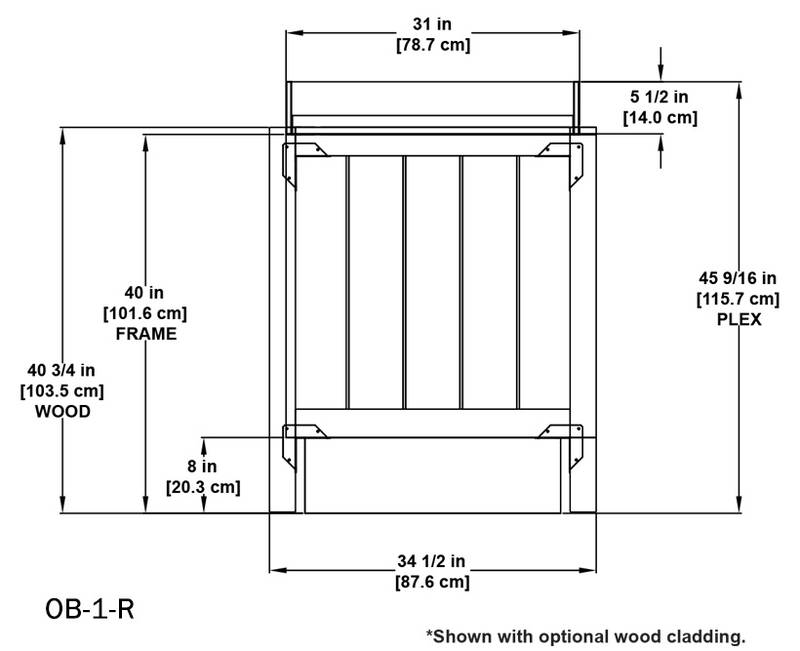

  • OB-1-R-page-profile-rv1.jpg
  • OB-1-SC-R290-page-profile-rv1.jpg

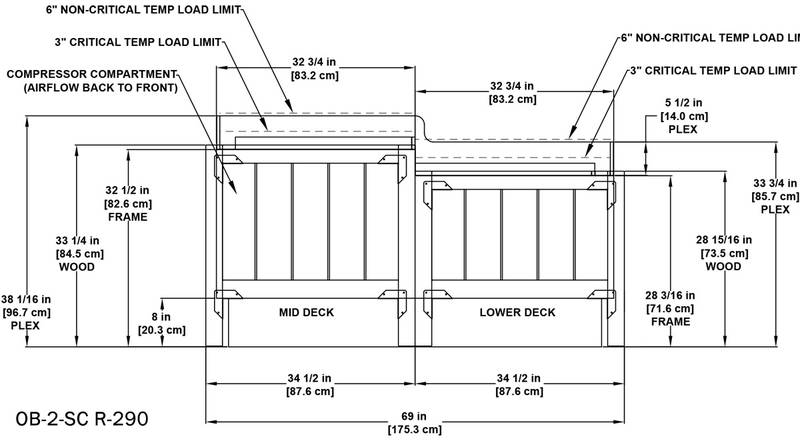

  • OB-2-SC-R290-page-profile-rv1.jpg

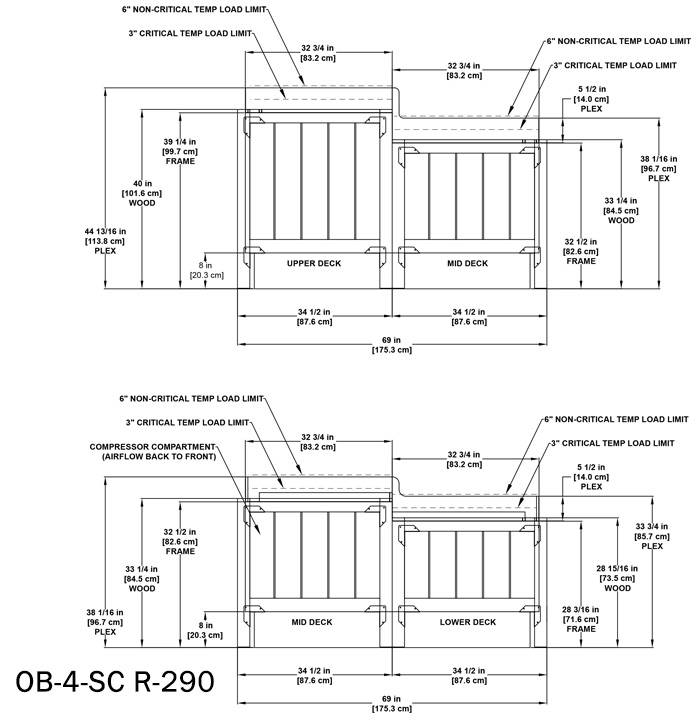

  • OB-4-SC-R290-page-profile-rv1.jpg

Sales Literature

  • R-290 CASE Availability 5-2023.pdf
  • OB-R-display-case-sales-sheet-v2.pdf

Technical Reference

  • OB-R-display-case-tech-reference-sheet-rv5.pdf
  • OB-SC-R290-display-case-tech-reference-sheet-rv8.pdf
  • OB-SC-display-case-tech-reference-sheet-rv5.pdf

Please consult Hillphoenix Engineering Reference Manual for dimensions, plan views and technical specifications. Specifications subject to change without notice. Designed for optimal performance in store environments where temperature and humidity do not exceed 75°F and 55% R.H. Certified to UL 471, ANSI/NSF Standard 2,7,51 and CAN/CSA C22.2.

Self-Service Multi-Level Bins

Hillphoenix OB-R Single-Deck, Self-Service, Refrigerated Display. Designed for bulk, critical temp produce, and deli applications. Available in multiple bin configurations and as either remote or self-contained refrigeration.  The OB-1, 2, and 4 bin self-contained configurations utilize the environmentally friendly R-290 refrigerant.

Hillphoenix OB-R Single-Deck, Self-Service, Refrigerated Display. Designed for bulk, critical temp produce, and deli applications. Available in multiple bin configurations and as either remote or self-contained refrigeration.  The OB-1, 2, and 4 bin self-contained configurations utilize the environmentally friendly R-290 refrigerant.

Less

Features & Benefits

  • Sled runner base construction.
  • Standard bin heights: 23-3/16” H, 32-1/2” H, and 40” H.
  • 8” H painted metal toekick, front, back, and sides.
  • Painted metal exterior, base, and trim.
  • 2-13/16” H x 1/2” T polished, straight die board plex.
  • Black painted metal flat bottom merchandising deck with plex product stops.
  • Energy efficient fans.
  • Solar digital thermometer.
  • Rear electrical raceway location.
  • Remote DX refrigeration package.

Available Options

  • Remote bin configurations: 1, 2, 4, and 6 tier/bins.
  • Self-contained bin configurations with R-290 refrigerant: 1, 2, and 4 tier/bins.
  • Exterior finishes: Exterior grade laminate or hardwood clad finish.
  • Decorative painted metal corner brackets.
  • Casters for self-contained base construction.
  • Refrigeration: Remote glycol or CO2 refrigeration packages.
  • Self-contained refrigeration package with 6’ cord and plug.

Attributes

  • Alternate Heights: -
  • Case Depth / Footprint: 34-1/2"
  • Case Height Standard: 45-9/16" (dimensions vary for various tiers)
  • Case Length: 1 bin, 2 bin, 4 bin and 6 bin
  • Case Temp: Medium-Temp
  • Case Type: Island, Remote, Self-Contained, Self-Service, Single-Deck
  • Department: Deli, General, Produce
  • Door Type: -
  • Interior Depth: 26-13/16"
  • Interior Height: 5-1/2"
  • Other Models: Produce island.
  • Product Type: Specialty Cases
  • Refrigerated Volume: -
  • Remote / Self-Contained: Remote or Self-Contained, Remote and Self-Contained
  • Retail Types: Mass Merchandise, Membership & Warehouse, Supermarket
