KFD-R
Self-Service Single-Deck
Hillphoenix KFD-R Single-Deck, Refrigerated, Self-Service Display. Designed as a bunker case to set in front of a service display. Available in several case lengths.
Hillphoenix KFD-R Single-Deck, Refrigerated, Self-Service Display. Designed as a bunker case to set in front of a service display. Available in several case lengths.
Please consult Hillphoenix Engineering Reference Manual for dimensions, plan views and technical specifications. Specifications subject to change without notice. Designed for optimal performance in store environments where temperature and humidity do not exceed 75°F and 55% R.H. Certified to UL 471, ANSI/NSF Standard 2,7,51 and CAN/CSA C22.2.
Self-Service Single-Deck
Hillphoenix KFD-R Single-Deck, Refrigerated, Self-Service Display. Designed as a bunker case to set in front of a service display. Available in several case lengths.
Hillphoenix KFD-R Single-Deck, Refrigerated, Self-Service Display. Designed as a bunker case to set in front of a service display. Available in several case lengths.
Features & Benefits
- Sled runner base construction.
- Standard 19-11/16”H and 18-7/8”D.
- 5-1/2” toekick height.
- Flat front dieboard.
- Painted metal exterior.
- Stainless steel base trim, front, and sides.
- Galvanized/unpainted outside back.
- 5-1/2”D case top painted to match exterior.
- 5”H x 1/2” thick polished, straight die board plex.
- Painted matte black metal interior and trim.
- Clearvoyant® LED top light.
- On/off light switch.
- Painted black metal, flat bottom deck with plexi product stop.
- Front electrical raceway.
- Solar digital thermometer.
- Energy efficient fans.
- Remote DX refrigeration package.
Available Options
- Available lengths: 4’, 6’, 8’, 10’, and 12’.
- Bullet leg base with adjustable height toekick.
- Exterior finishes: Exterior grade laminate or stainless steel.
- Painted outside back panel.
- White or stainless steel case interior.
- Clearvoyant LED dual top lighting (adds 2-1/2” to case top).
- Perforated step risers: (3) tier: (2 risers + base) 24"W x 7.75"D x 1.5"H or (2) tier: (1 riser + base) 24"W x 15.5"D x 3"H.
- Solid or full-view end panels with mirror-polished, stainless steel interior.
- Thermal glass divider.
- Cart bumper mounted on front panel of case.
- Cart bumper added to end panels.
- Refrigeration: Remote glycol or CO2.

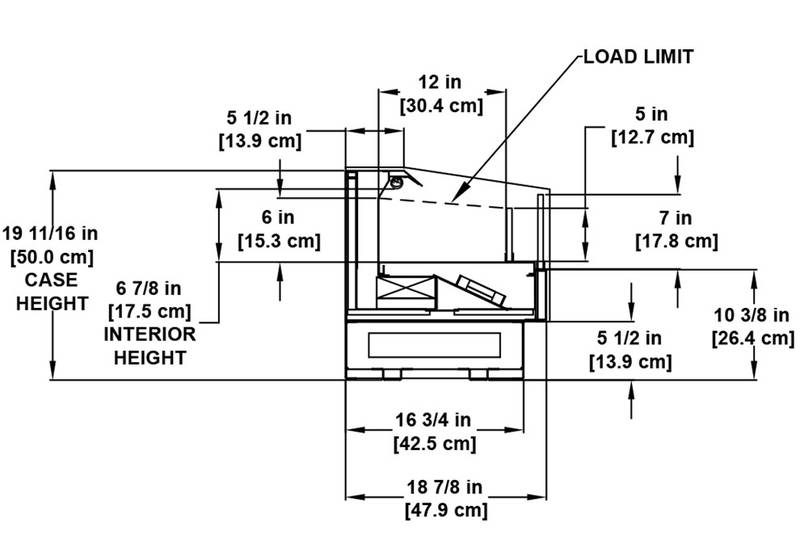

Attributes
- Alternate Heights: -
- Case Depth / Footprint: 18-7/8"
- Case Height Standard: 19-11/16"
- Case Length: 4’, 6’, 8’, 10', and 12
- Case Temp: Medium-Temp
- Case Type: Remote, Self-Service, Single-Deck
- Department: Bakery, Deli, General
- Door Type: -
- Interior Depth: 12"
- Interior Height: 6"
- Other Models: Bakery and deli.
- Product Type: Specialty Cases
- Refrigerated Volume: -
- Remote / Self-Contained: Remote
- Retail Types: Dollar Discount, Drug Store, Food Service, Mass Merchandise, Membership & Warehouse, Supermarket
