JNRZBHA SFC
Self-Contained, Glass Door Reach-In

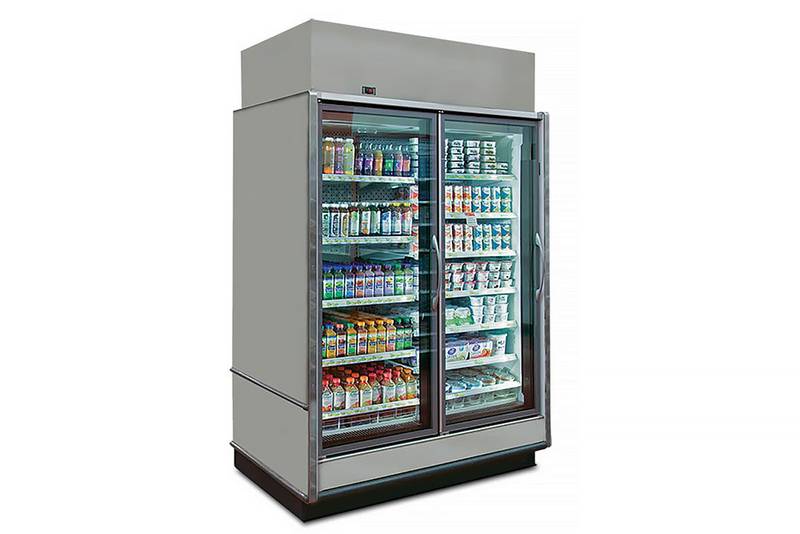

illphoenix JNRBHSA SFC CLARITY® Glass Door, Reach-In Merchandisers, customized with the ideal frame and door options, deliver superior performance for every need. Multiple sizes and configurations help store merchandisers provide unique refrigeration options and enhanced product displays to create a superior shopper experience.
illphoenix JNRBHSA SFC CLARITY® Glass Door, Reach-In Merchandisers, customized with the ideal frame and door options, deliver superior performance for every need. Multiple sizes and configurations help store merchandisers provide unique refrigeration options and enhanced product displays to create a superior shopper experience.
*Specialized Base Frame:
• Case fits through 80” doorway with shipping undercarriage removed.
• 2” lifting brackets (installed) & 3.25” risers ship loose and combine for 5” base frame once installed.
• Drain traps ship loose.

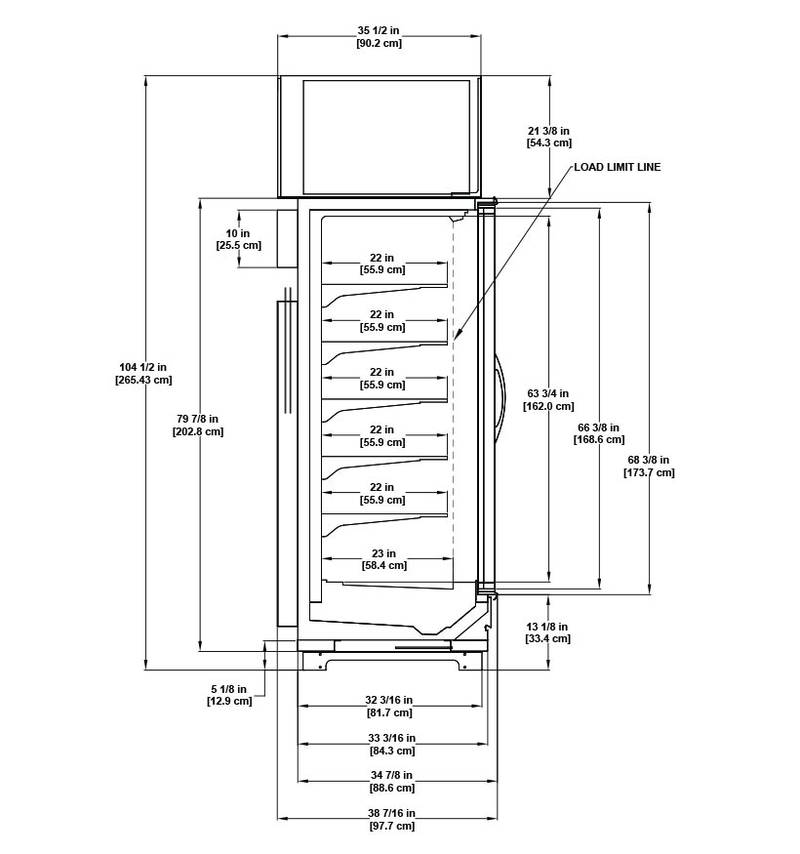

Please consult Hillphoenix Engineering Reference Manual for dimensions, plan views and technical specifications. Specifications subject to change without notice. Designed for optional performance in store environments where temperature and humidity do not exceed 75 degrees and 55% R.H. Certified to UP 471 and ANSI/NSF Standard 7.
Self-Contained, Glass Door Reach-In
illphoenix JNRBHSA SFC CLARITY® Glass Door, Reach-In Merchandisers, customized with the ideal frame and door options, deliver superior performance for every need. Multiple sizes and configurations help store merchandisers provide unique refrigeration options and enhanced product displays to create a superior shopper experience.
illphoenix JNRBHSA SFC CLARITY® Glass Door, Reach-In Merchandisers, customized with the ideal frame and door options, deliver superior performance for every need. Multiple sizes and configurations help store merchandisers provide unique refrigeration options and enhanced product displays to create a superior shopper experience.
Features & Benefits
- Bottom-located refrigeration components facilitate serviceability and allow for full top shelf merchandising.
- Proprietary Synerg-E® technology, with NRGcoil™ and energy-efficient fan motors, ensures uniform case performance and lower average product temperatures with optimum energy efficiency.
- Low-temp and medium-temp cases line up seamlessly for consistency in store design.
- LED lighting for energy efficiency and a stunning merchandise display.
- 22” shelves for maximum display capacity.
- 63-3/4” front facings with no planogram restrictions.
- Removable castors for easy merchandiser unloading, movement and installation.
Available Options
- 2, 3, 4 & 5 door with 30” standard swing doors.
- Variety of door rail profiles, finishes and handles.
- Low-temp doors – Anthony® Infinity 90, ELM D, ELMH.
- Medium-temp doors – Anthony Infinity 90 & ELM D.
- For a wall of infinity edge glass, choose the Infinity 90 door option.
- Modbus controller for ease of use.
- Motion sensors for additional energy savings.
- Cases can ship with the condensing unit factory- or field-installed:
– Factory-installed condensing units (JNRZHA, JNRBHA) ship fully piped and plumbed with single-point wiring for easy installation.
– Field-installed condensing units (JNRZHSA, JNRZHSA) ship with minimal assembly required and incorporate a special baseframe option allowing it to fit through an 80” door. And a loading dock is not required because the design incorporates a special low base on wheels and a condensing unit that is installed on site.
Attributes
- Alternate Heights: -
- Case Depth / Footprint: 38 1/2"
- Case Height Standard: 104 1/2"
- Case Length: 1 to 5 30" Doors
- Case Temp: Low-Temp, Medium-Temp
- Case Type: Reach-In, Self-Contained
- Department: Bakery, Beverage, Dairy, Deli, Frozen Food, Ice Cream & Gelato, Meat & Seafood, Produce
- Door Type: Many door types, finish colors and handle options available. Please see Clarity for more details.
- Interior Depth: 23"
- Interior Height: 65 3/4"
- Other Models: Can fit through a 80" door, self-contained applications and small format.
- Refrigerated Volume: 31.2 Cubic Foot per Door
- Remote / Self-Contained: Remote
- Retail Types: Convenience Store, Drug Store
