HS
Self-Service Single-Deck
Hillphoenix HS Series Consists of Low, Single, and Multi-Deck, Self-Service, Refrigerated Display Cases. Designed for prepackaged bakery, deli, produce, beverage, meat, and meal kit applications. The HS series is available in a closed or open base option and in several depths and lengths in both remote and self-contained refrigeration.
Hillphoenix HS Series Consists of Low, Single, and Multi-Deck, Self-Service, Refrigerated Display Cases. Designed for prepackaged bakery, deli, produce, beverage, meat, and meal kit applications. The HS series is available in a closed or open base option and in several depths and lengths in both remote and self-contained refrigeration.
Please consult Hillphoenix Engineering Reference Manual for dimensions, plan views and technical specifications. Specifications subject to change without notice. Designed for optimal performance in store environments where temperature and humidity do not exceed 75°F and 55% R.H. Certified to UL 471, ANSI/NSF Standard 2,7,51 and CAN/CSA C22.2.
Self-Service Single-Deck
Hillphoenix HS Series Consists of Low, Single, and Multi-Deck, Self-Service, Refrigerated Display Cases. Designed for prepackaged bakery, deli, produce, beverage, meat, and meal kit applications. The HS series is available in a closed or open base option and in several depths and lengths in both remote and self-contained refrigeration.
Hillphoenix HS Series Consists of Low, Single, and Multi-Deck, Self-Service, Refrigerated Display Cases. Designed for prepackaged bakery, deli, produce, beverage, meat, and meal kit applications. The HS series is available in a closed or open base option and in several depths and lengths in both remote and self-contained refrigeration.
Features & Benefits
- Sled runner base construction.
- Closed base.
- 17-3/4”H painted metal base, front, and sides.
- Outside back unfinished galvaneal.
- 9”D case top painted to match the exterior.
- Painted metal exterior and trim.
- 5-1/2”H x 1/2” thick polished, straight die board plex.
- Painted metal interior and trim.
- Painted metal, fixed, flat bottom deck with angled telescoping wire rack.
- Left and right solid end panels.
- Energy-efficient fans.
- Solar digital thermometer.
- Front electrical raceway location.
- R-290 refrigeration package.
- R-404a & R-448a on select 6’ and 8’ case lengths only.
- Front-to-back: straight path with rear lower exhaust on self-contained models.
- Remote DX refrigeration package.
Available Options
- Remote lengths: 4’, 6’, 8’, 10’, and 12’.
- Self-contained lengths: 2’, 3', 4’, 6’, and 8’ (see sales literature for refrigerant available).
- Sled runner base construction with leveling pads, and recessed or exposed casters.

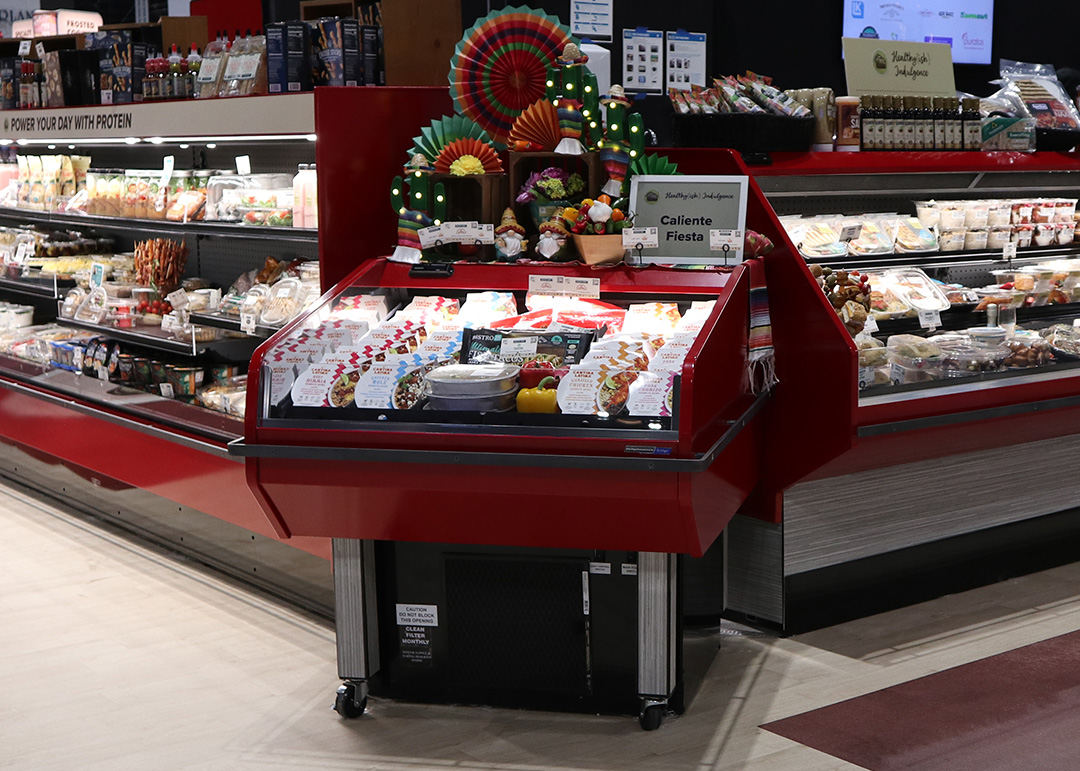

- Open base (on models greater than 2’).
- Stainless steel or wood slat base finish (closed base only).
- Exterior finishes: exterior grade laminate or stainless steel.
- Exterior back panel: painted metal or stainless.
- 9” D case top: solid surface, butcher block, laminate, poly, or stone finish.
- Interior finishes: stainless steel.
- Clearvoyant® LED top light.
- Separate on/off light switch.
- (1) row 10”D adjustable painted metal shelf.
- Shelf position: flat or angled, lighted, product stops, and price tag molding.
- 2 Step riser: (base deck, 1-1/2”H, and 3"H steps).
- Dry shelves above case: up to three rows 10-18”D adjustable-angled wire shelves with wire product stop (MMRA style upper shelf).
- Night cover: roller shade or polycarbonate panel.
- Solid, full-view, or partial-view end panels or thermal divider.
- Cart bumper mounted on the front panel of the case: single or dual row.
- Cart bumper added to end panels.
- 6’ UL cord and plug on self-contained models.
- Rear 2” chimney exhaust front-to-back airflow on self-contained models.
- Back-to-front airflow exhaust on self-contained models.
- Remote glycol or CO2 refrigeration packages.

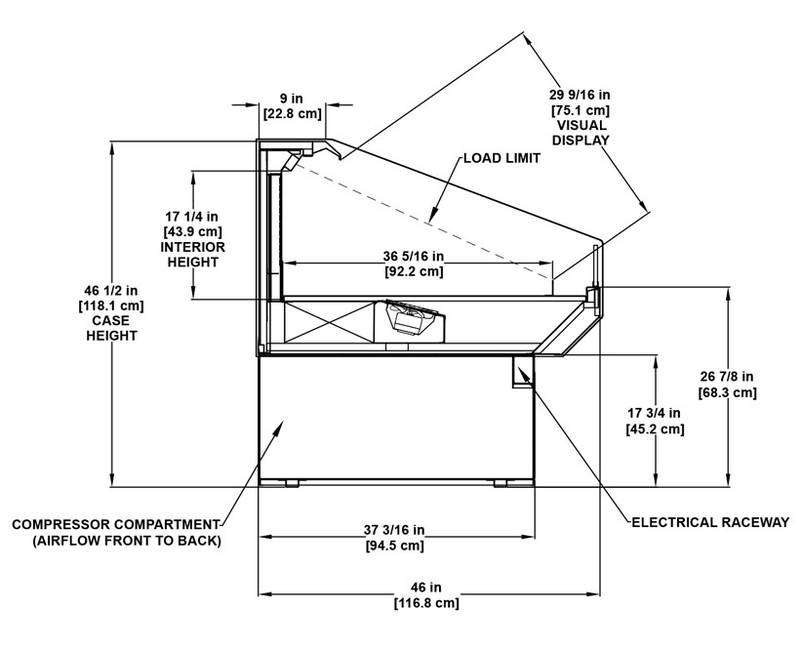

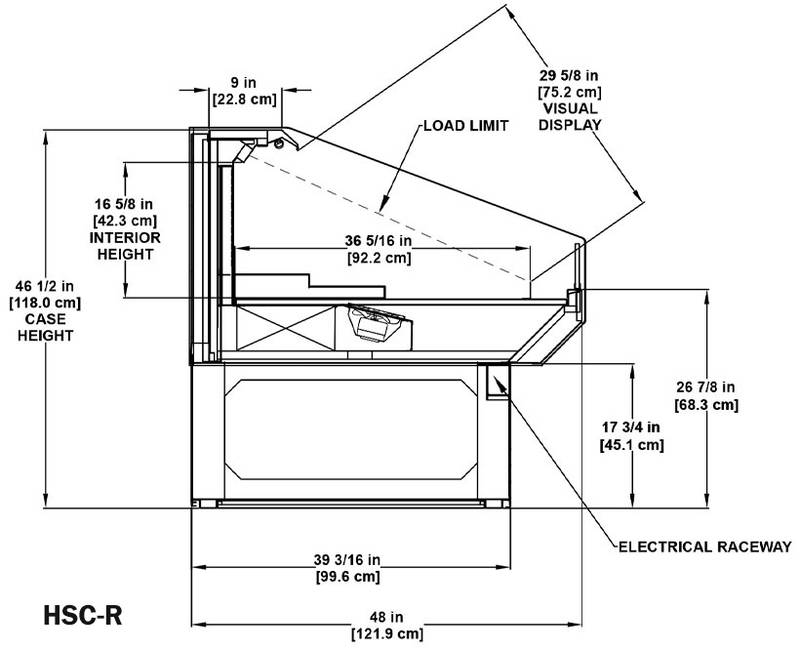

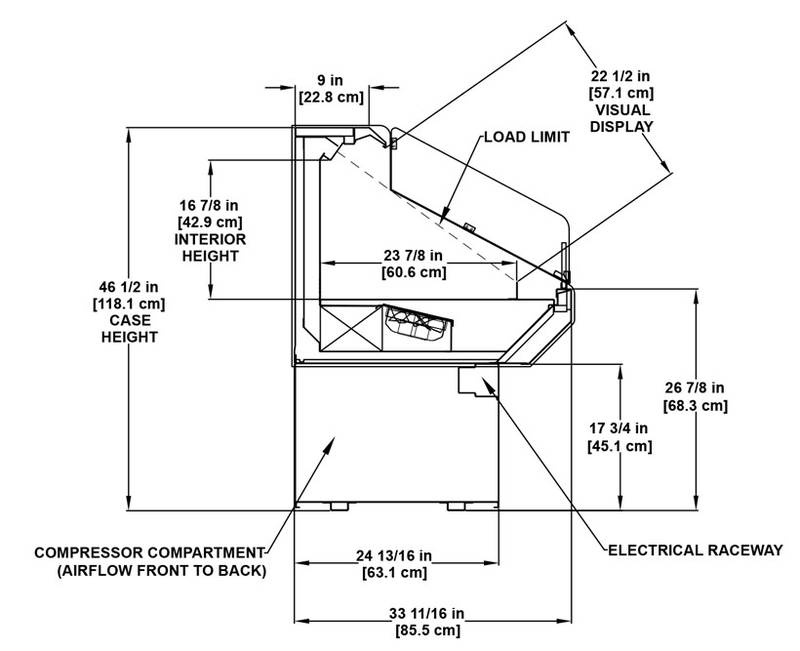

Attributes
- Alternate Heights: -
- Case Depth / Footprint: 48"
- Case Height Standard: 46-1/2"
- Case Length: Remote: 4’, 6’, 8’, 10', & 12' and Self-contained: 2', 4’, 6’, & 8’
- Case Temp: Medium-Temp
- Case Type: Multi-Deck, Remote, Self-Contained, Self-Service
- Department: Bakery, Deli, General, Meal Kit, Produce
- Door Type: -
- Interior Depth: 36-5/16"
- Interior Height: 16-5/8"
- Other Models: DLPC-R, MIDA, CF
- Refrigerated Volume: -
- Remote / Self-Contained: Remote or Self-Contained, Remote and Self-Contained
- Retail Types: Convenience Store, Drug Store, Food Service, Mass Merchandise, Membership & Warehouse, Supermarket, Urban Format
