GSD-R
Service Single-Deck Refrigerated

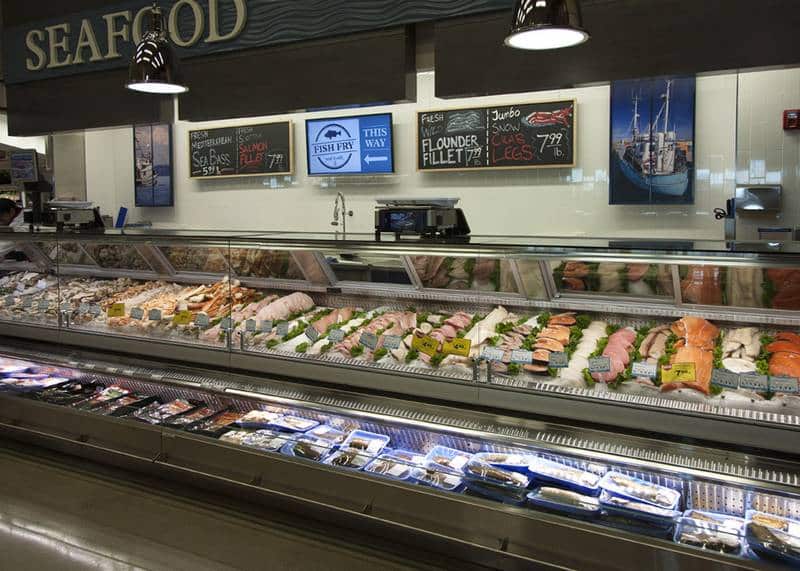

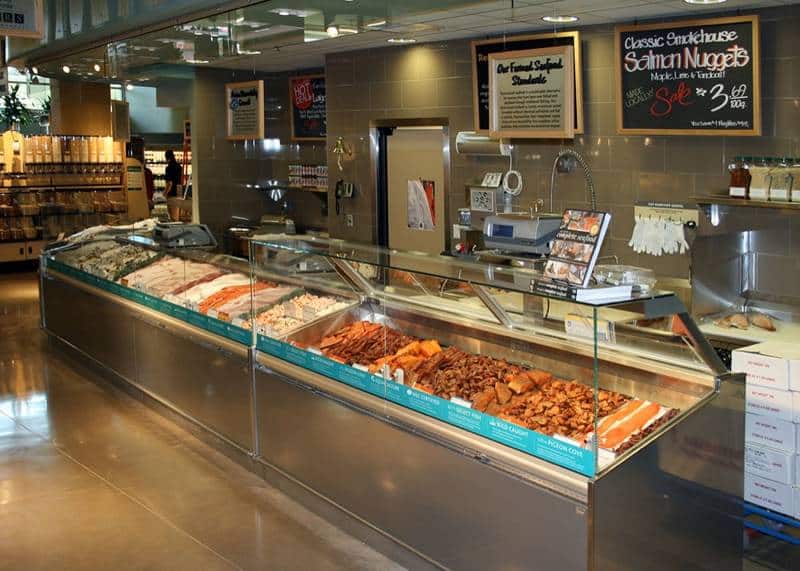

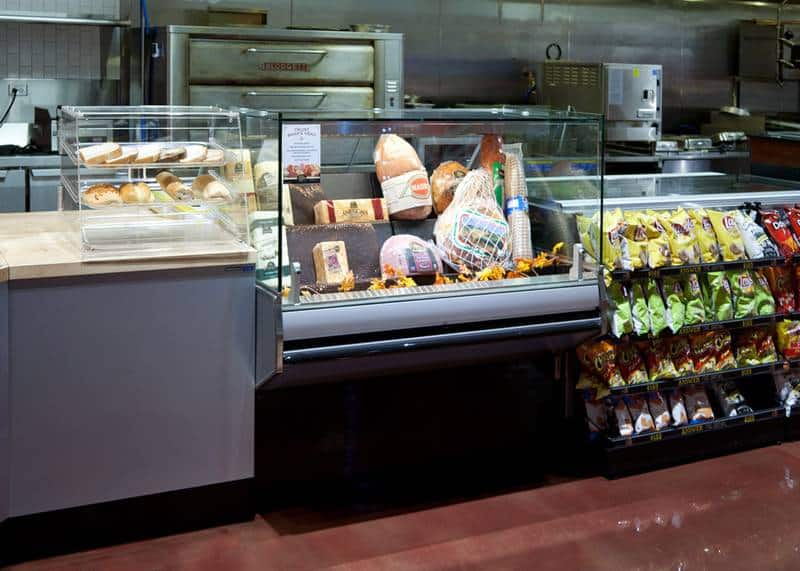

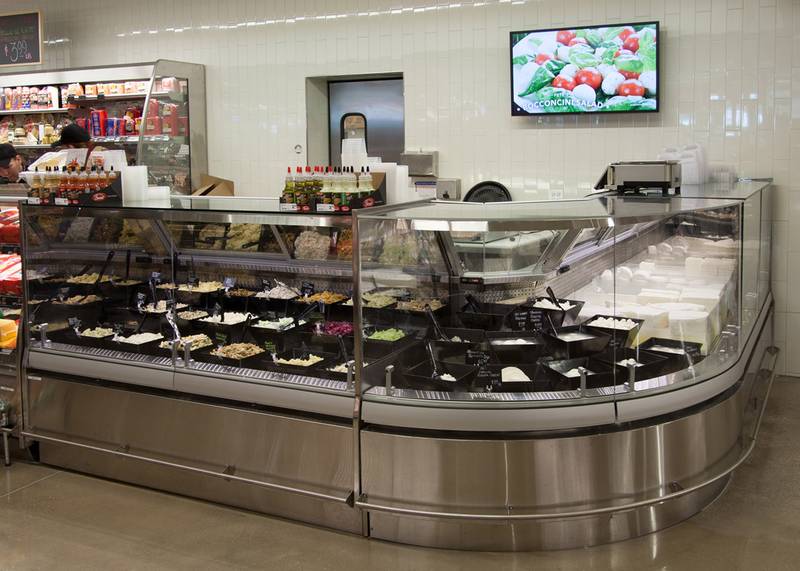

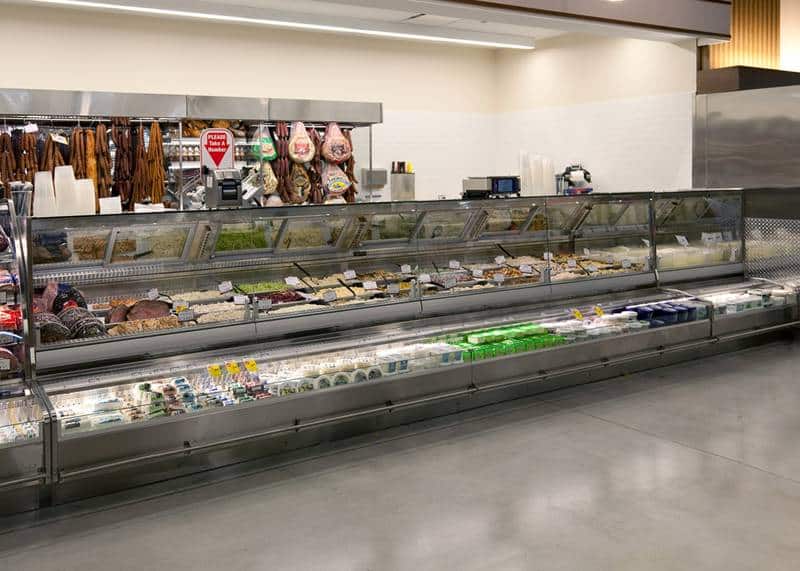

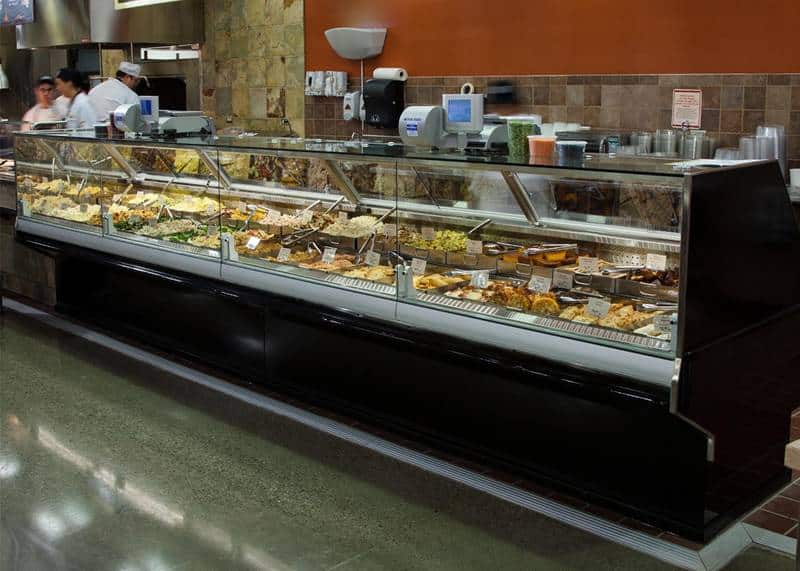

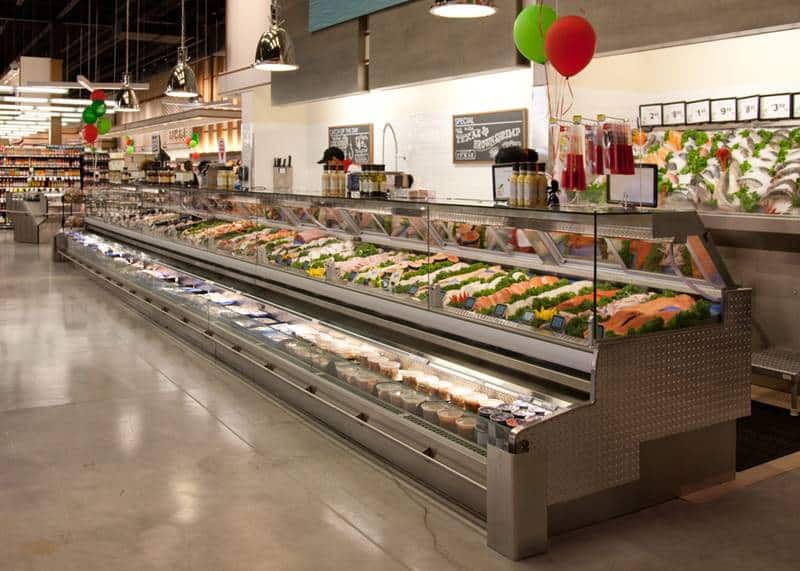

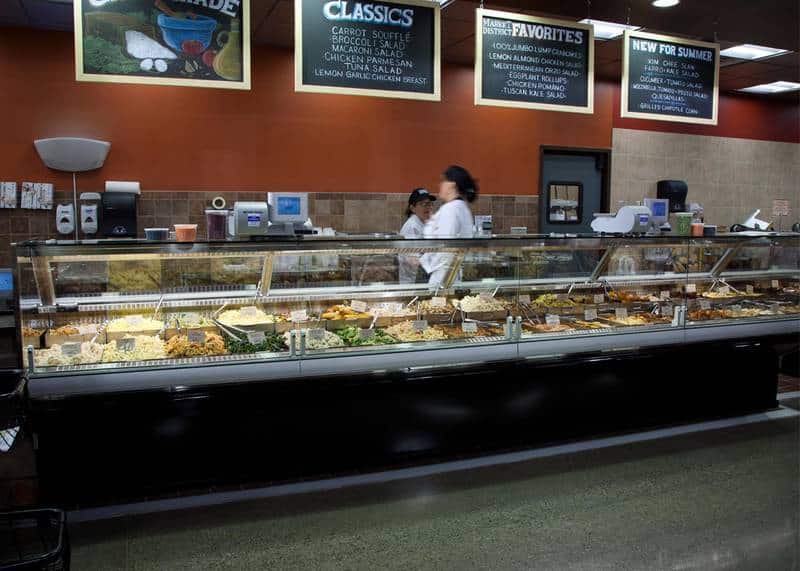

Hillphoenix GSD-R Single-Deck, Service, Refrigerated Display Case. Available in various lengths with vertical slide glass hardware. Front profile lines up with the GMDH, GMD-R, GMD-RGC and GMD-RG as well as cases with the option for the SMD or SSD profiles.
Hillphoenix GSD-R Single-Deck, Service, Refrigerated Display Case. Available in various lengths with vertical slide glass hardware. Front profile lines up with the GMDH, GMD-R, GMD-RGC and GMD-RG as well as cases with the option for the SMD or SSD profiles.
Please consult Hillphoenix Engineering Reference Manual for dimensions, plan views and technical specifications. Specifications subject to change without notice. Designed for optimal performance in store environments where temperature and humidity do not exceed 75°F and 55% R.H. Certified to UL 471, ANSI/NSF Standard 2,7,51 and CAN/CSA C22.2.
Service Single-Deck Refrigerated
Hillphoenix GSD-R Single-Deck, Service, Refrigerated Display Case. Available in various lengths with vertical slide glass hardware. Front profile lines up with the GMDH, GMD-R, GMD-RGC and GMD-RG as well as cases with the option for the SMD or SSD profiles.
Hillphoenix GSD-R Single-Deck, Service, Refrigerated Display Case. Available in various lengths with vertical slide glass hardware. Front profile lines up with the GMDH, GMD-R, GMD-RGC and GMD-RG as well as cases with the option for the SMD or SSD profiles.
Features & Benefits
- Sled runner base construction.

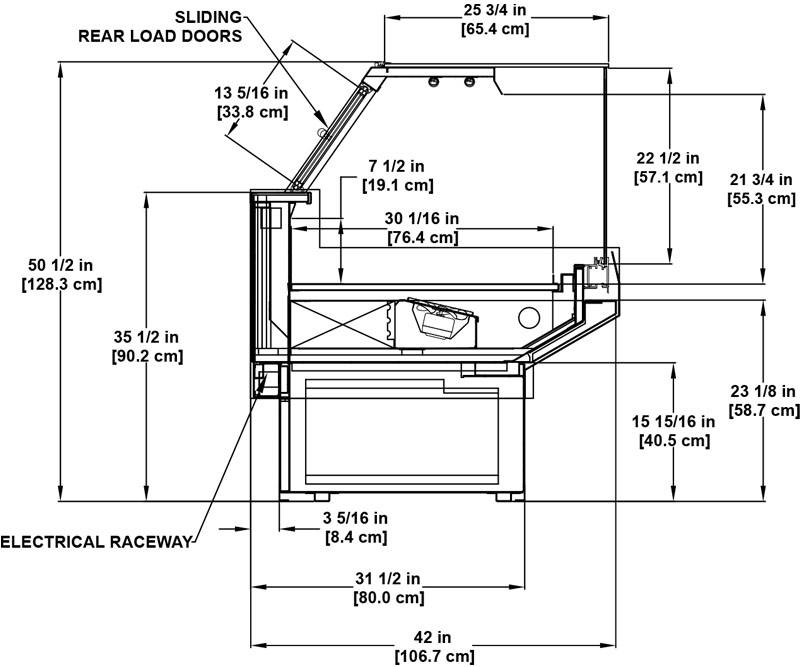

- Case dimensions: 50-1/2”H & 42”D.
- 15-15/16”H stainless steel toekick, front and sides.
- 60 degree front dieboard.
- 25.75"D, 3/8"T Glass case top low iron, regular glare.
- Painted metal exterior.
- Stainless steel base trim, front, sides, & rear.
- Stainless steel exterior trim.
- Stainless steel rear work ledge – flush (no overhang).
- Removable clear plexiglass rear load doors.
- 1/4" Single-pane, low iron regular-glare vertical slide front glass.
- Painted matte black metal interior and trim.
- Black painted metal flat bottom merchandising deck.
- Clearvoyant® LED dual top lighting.
- Energy efficient fans.
- Solar digital thermometer.
- Rear electrical raceway location.
- Remote DX refrigeration package.
Available Options
- Available lengths: 4’, 6’, 8’, 10’, and 12’.
- Alternate case height: 48".
- Interior or exterior miters up to 22.5° available.
- Exterior and interior wedges: 45° and 90°.
- Flat front profile.
- Bullet leg base with adjustable height toekick.
- Pedestal base or false pedestal base.
- Exterior finishes: exterior grade laminate or stainless steel.
- Interior finishes: painted white or stainless steel.
- Non-glare front glass.
- Integrated case top scale stand or adjustable scale stand.
- Rear flip-up work boards (fixed or flip-up) in poly, stainless steel, or solid surface.
- Paper cutters.
- ISO outlet/CON outlets (specify vertical or horizontal placement on rear).
- Smoked plexi rear load doors.
- Extended rear ledge.
- Step riser (2-tier or 3-tier).
- Slant “Z” riser.
- Solid or full-view end panels with mirror-polished, stainless steel interior.
- Thermal divider.
- Cart bumper mounted on front panel of case.
- Cart bumper added to end panels.
- Front electrical raceway.
- Remote glycol or CO2 refrigeration packages.
Attributes
- Alternate Heights: 48-1/2"
- Case Depth / Footprint: 42"
- Case Height Standard: 50-1/2"
- Case Length: 4’, 6’, 8’, 10', and 12
- Case Temp: Medium-Temp
- Case Type: Rear-Load, Remote, Service, Single-Deck
- Department: Bakery, Deli
- Door Type: -
- Interior Depth: 30-1/16"
- Interior Height: 21-3/4"
- Other Models: Deli and bakery. ALSO consider the SMD-R, BMD-R and SSD-R
- Refrigerated Volume: -
- Remote / Self-Contained: Remote
- Retail Types: Food Service, Mass Merchandise, Membership & Warehouse, Supermarket
