GMD-H

GMD-H

Service Single-Deck Hot

Hillphoenix GMD-H Single-Deck, Service, Hot Food Display. Designed for maintaining hot food temperatures with dry-heat, long-wave, radiant heat system with Bluetooth controllers. Available in various lengths with vertical slide glass hardware. The front profile lines up with the GMD-R, GMD-RG, and GMD-RGC as well as cases with the option for the SMD or SSD profiles.

Hillphoenix GMD-H Single-Deck, Service, Hot Food Display. Designed for maintaining hot food temperatures with dry-heat, long-wave, radiant heat system with Bluetooth controllers. Available in various lengths with vertical slide glass hardware. The front profile lines up with the GMD-R, GMD-RG, and GMD-RGC as well as cases with the option for the SMD or SSD profiles.

Less

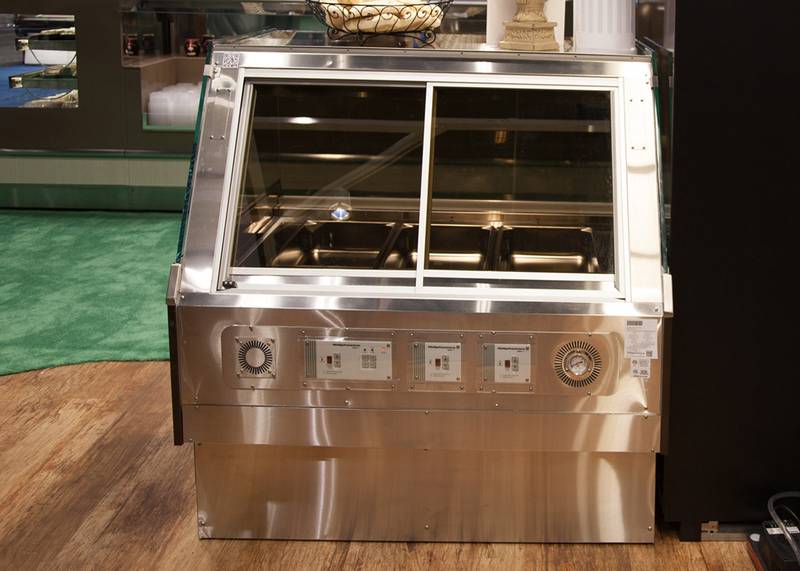

  • GMDH-display-case-photo-deli-backview-0288.jpg

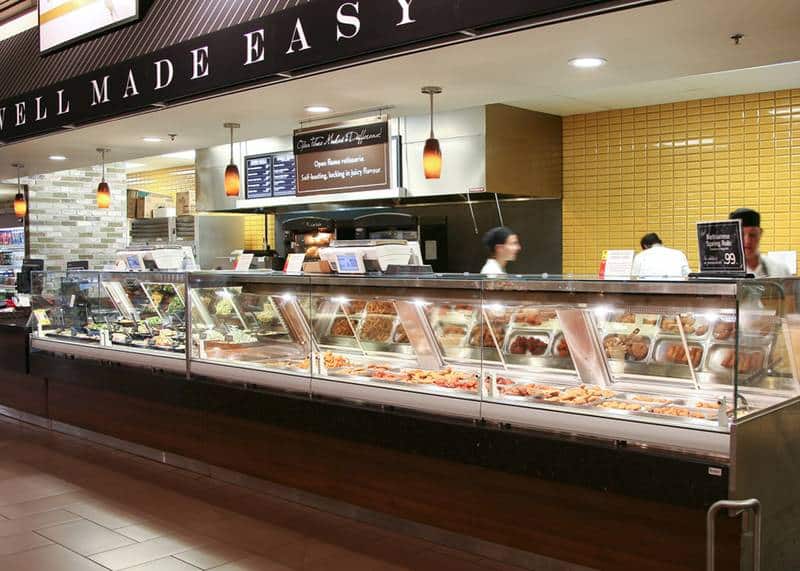

  • GMDH-display-case-photo-deli-9713.jpg

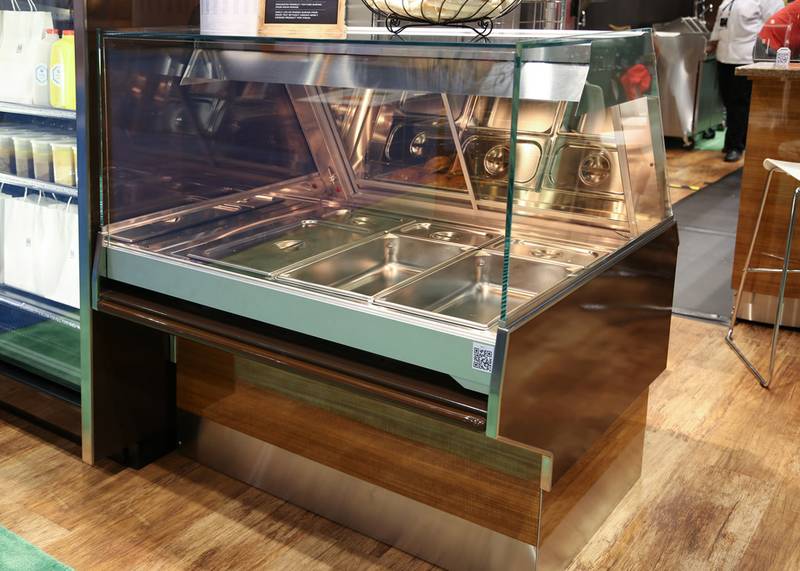

  • GMDH-display-case-photo-deli-3994.jpg

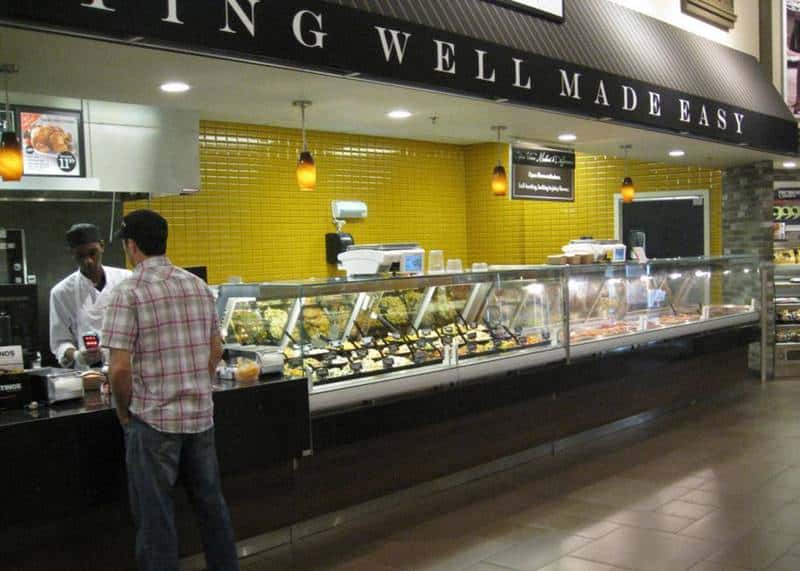

  • GMDH-display-case-photo-deli-3597.jpg

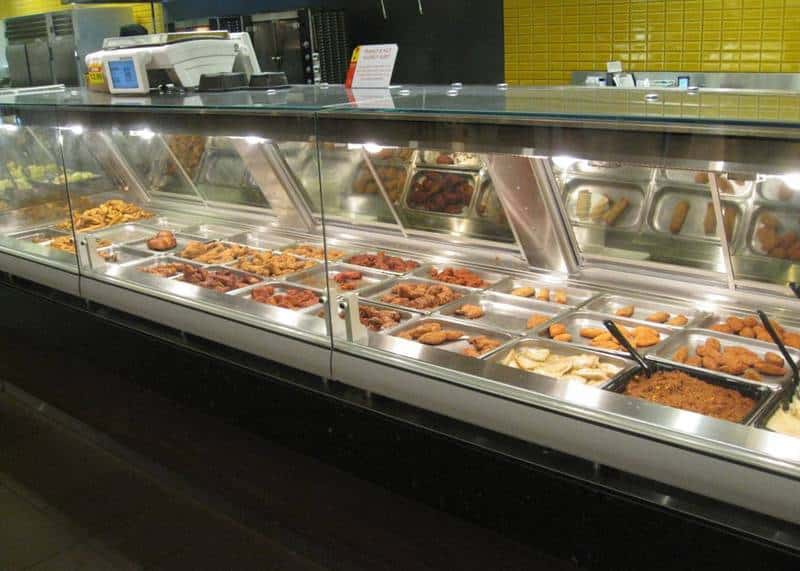

  • GMDH-display-case-photo-deli-3596.jpg

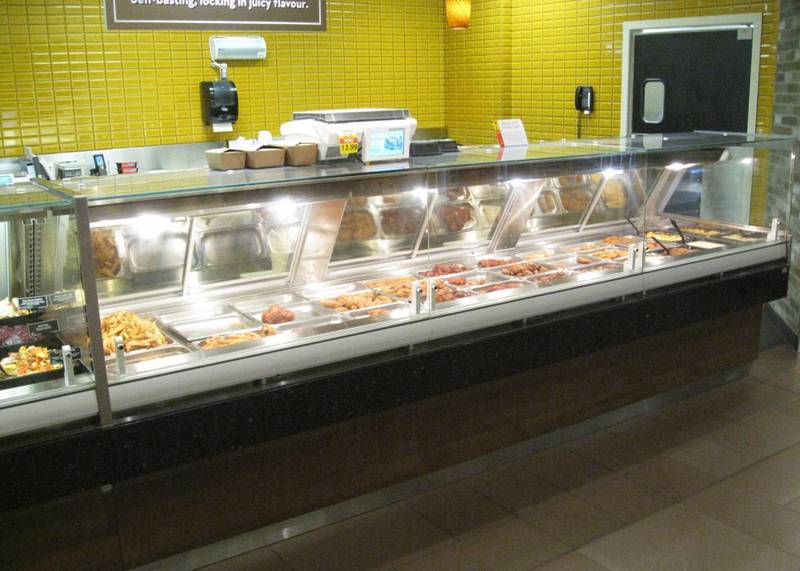

  • GMDH-display-case-photo-deli-3595.jpg

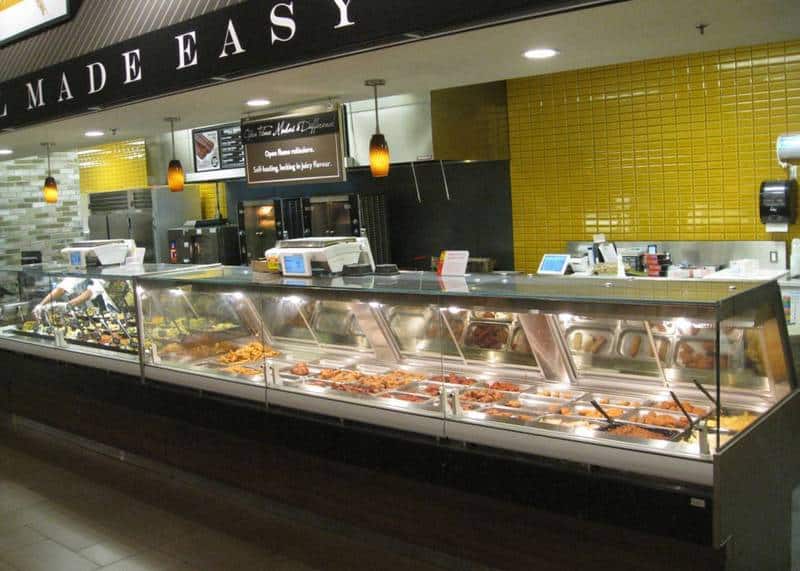

  • GMDH-display-case-photo-deli-3594.jpg

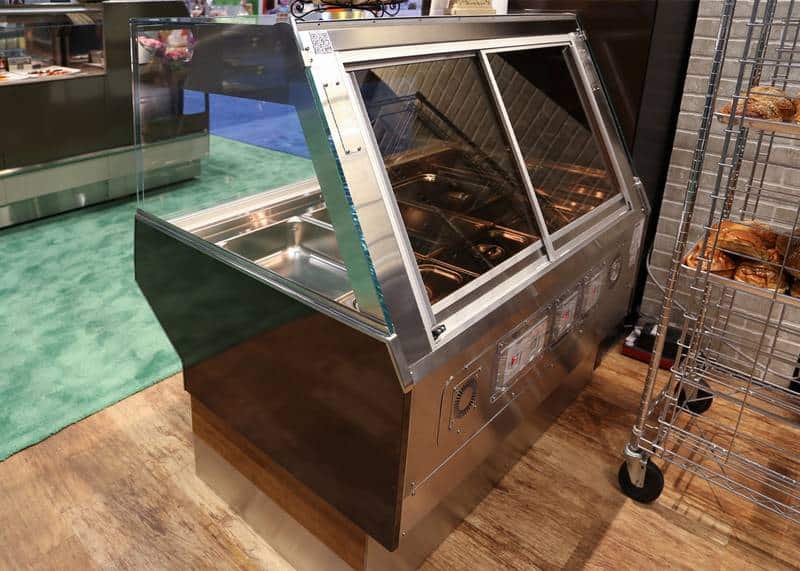

  • GMDH-display-case-photo-deli-backview-3995.jpg
  • GMD-H-display-case-CAD-drawing-rv2.dwg

Installation Manuals

  • GMDH-display-case-manual-rv3.pdf

Accessories

  • Standard-Bumper-Color-Chart-Brochure.pdf
  • Standard-Paint-Color-Chart-Brochure-082823-v2.pdf

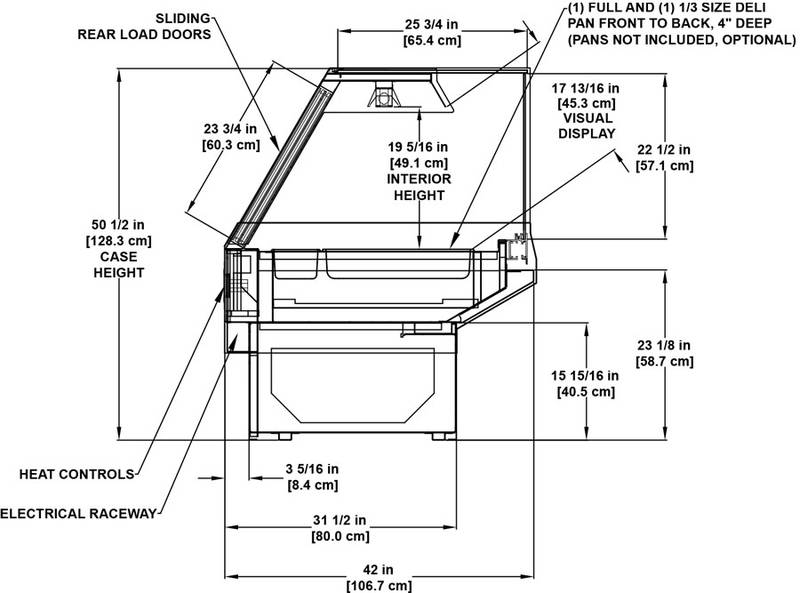

Cross Section

  • GMDH-page-profile-R2.jpg

Sales Literature

  • GMDH-display-case-sales-sheet-v3.pdf
  • HotFoods-cases-series-sales-sheet-rv3-v2.pdf
  • Vertical-Glass-Cases-v1.pdf

Technical Reference

  • GMDH-display-case-tech-reference-sheet-rv8.pdf

Please consult Hillphoenix Engineering Reference Manual for dimensions, plan views and technical specifications. Specifications subject to change without notice. Designed for optimal performance in store environments where temperature and humidity do not exceed 75°F and 55% R.H. Certified to UL 471, ANSI/NSF Standard 2,7,51 and CAN/CSA C22.2.

Service Single-Deck Hot

Hillphoenix GMD-H Single-Deck, Service, Hot Food Display. Designed for maintaining hot food temperatures with dry-heat, long-wave, radiant heat system with Bluetooth controllers. Available in various lengths with vertical slide glass hardware. The front profile lines up with the GMD-R, GMD-RG, and GMD-RGC as well as cases with the option for the SMD or SSD profiles.

Hillphoenix GMD-H Single-Deck, Service, Hot Food Display. Designed for maintaining hot food temperatures with dry-heat, long-wave, radiant heat system with Bluetooth controllers. Available in various lengths with vertical slide glass hardware. The front profile lines up with the GMD-R, GMD-RG, and GMD-RGC as well as cases with the option for the SMD or SSD profiles.

Less


Download OPEN FULL SCREEN
ADD TO DOWNLOAD LIST

Features & Benefits

  • Sled runner base construction.
  • Case dimensions: 50-1/2”H & 42”D.
  • 15-15/16”H stainless steel toekick, front and sides.
  • 60 degree front dieboard.
  • 25.75"D, 3/8"T Glass case top low iron, regular glare.
  • Stainless steel outside back and exterior trim.
  • Reflective rear load doors with gray frames.
  • 1/4" Single-pane, low iron regular-glare vertical slide front glass.
  • Stainless steel interior and trim.
  • Stainless steel dry heat wells including aluminum heaters, divider bars for 4"D full-size pans, and 1/3 size pans (pans not included).
  • Overhead ceramic heating elements with 100W incandescent lighting (shatterproof).
  • Low wattage, long wave radiant heat system.
  • Dry heat, no water connection required.
  • Electronically controlled zone heating with Bluetooth connectivity by degree.
  • Rear-mounted heat controls - separate controls for well & top heat.
  • 2" dial thermometer.
  • Rear electrical raceway location.
  • 120/208-3-60.

Available Options

  • Available lengths: 4’, 6’, 8’, 10’, and 12’.
  • Alternate case height: 48".
  • Flat front profile.
  • Bullet leg base with adjustable height toekick.
  • Exterior finishes exterior grade laminate or stainless steel.
  • Integrated case top scale stand or adjustable scale stand.
  • Rear flip-up work boards (fixed or flip-up) in poly, stainless steel, or solid surface.
  • Paper cutters.
  • ISO outlet/CON outlets (specify vertical or horizontal placement on rear).
  • Stainless steel pans (specify size and quantity).
  • Stainless steel solid deck or hot ceramic tiles.
  • Clear rear load doors.
  • Front glass masking.
  • Control cover.
  • Solid or full-view end panels with mirror-polished, stainless steel interior.
  • Thermal divider.
  • Cart bumper mounted on front panel of case.
  • Cart bumper added to end panels.
  • Front electrical raceway.

Attributes

  • Alternate Heights: 48-1/2"
  • Case Depth / Footprint: 42"
  • Case Height Standard: 50-1/2"
  • Case Length: 4’, 6’, 8’, 10', and 12
  • Case Temp: Hot Foods
  • Case Type: Rear-Load, Service, Single-Deck
  • Department: Deli
  • Door Type: -
  • Interior Depth: 31-1/2"
  • Interior Height: 19-5/16"
  • Other Models: BMDH and SMDH
  • Product Type: Specialty Cases
  • Refrigerated Volume: -
  • Retail Types: Food Service, Mass Merchandise, Membership & Warehouse, Supermarket
