DLPF-R
Self-Service Multi-Deck Refrigerated

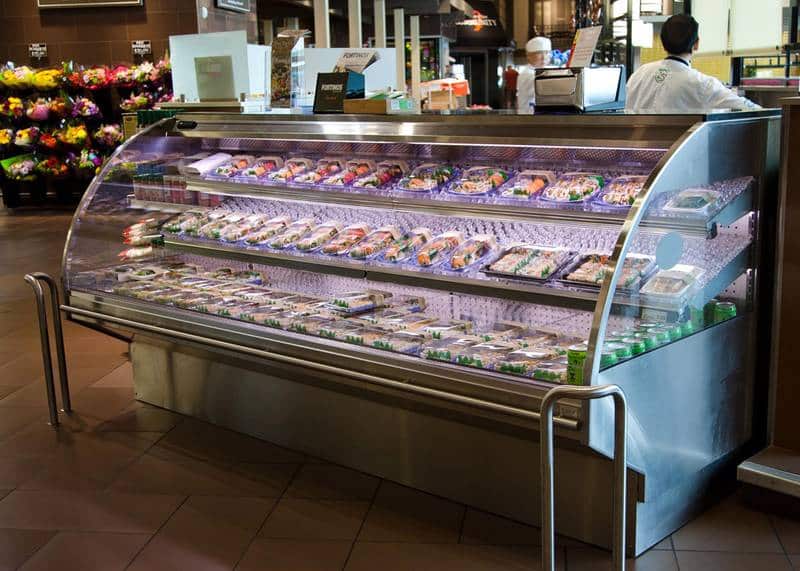

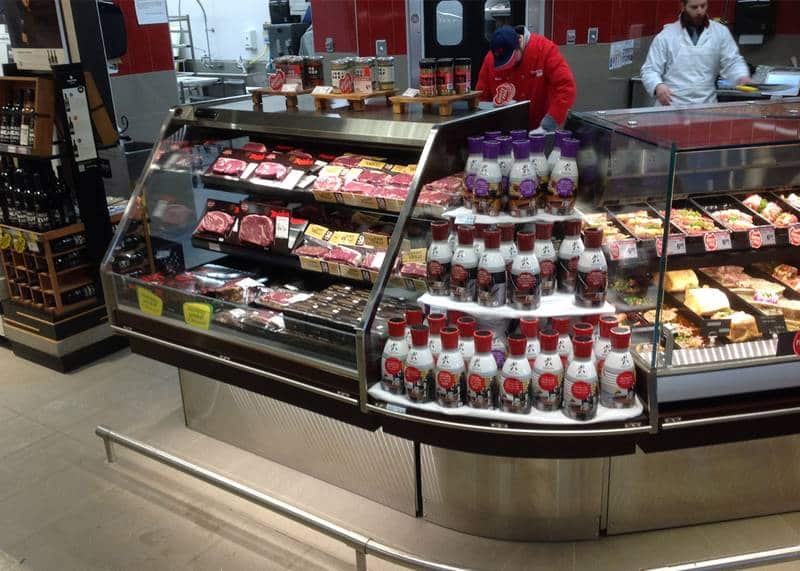

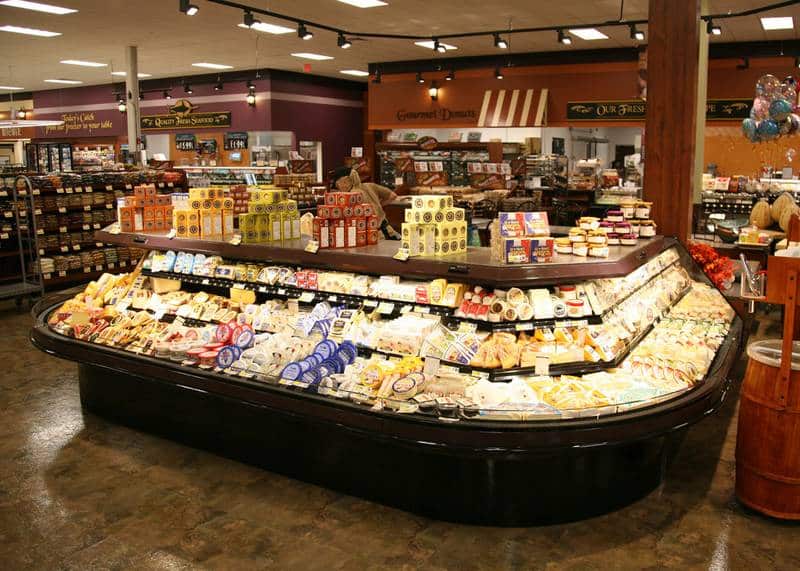

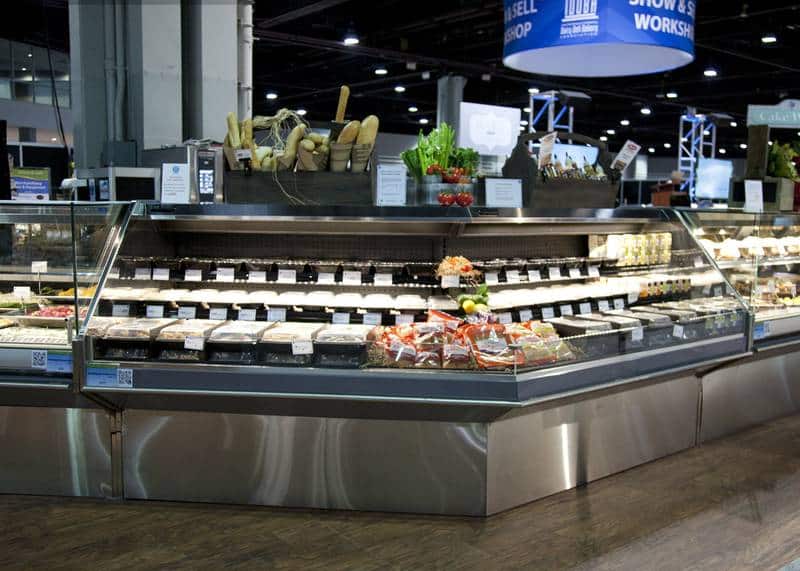

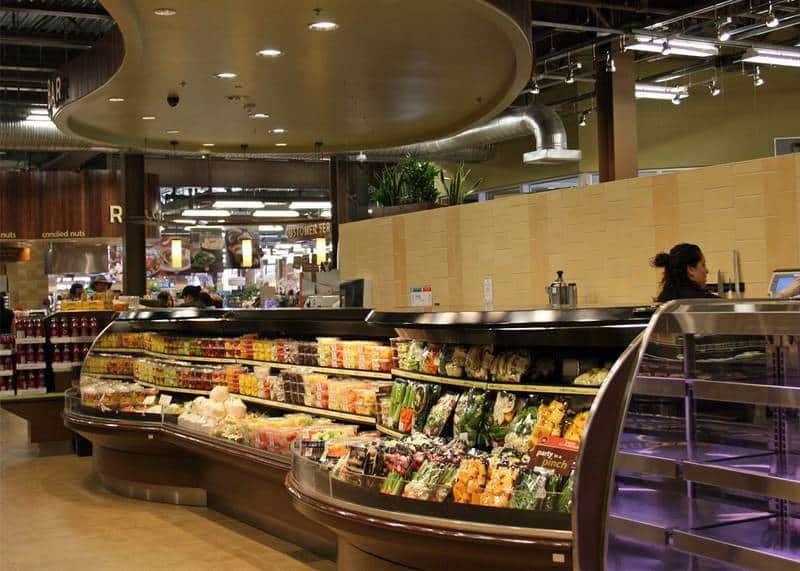

Hillphoenix DLPF-R Multi-Deck, Refrigerated, Self-Service Display. Designed for prepackaged deli, bakery, produce, and beverage applications. Merchandise with up to two rows of shelves. Front profile lines up with the SMD, GMD, and SSD service cases as well as the DLPC self-service case to create a continuous departmental look. Available in several case lengths.
Hillphoenix DLPF-R Multi-Deck, Refrigerated, Self-Service Display. Designed for prepackaged deli, bakery, produce, and beverage applications. Merchandise with up to two rows of shelves. Front profile lines up with the SMD, GMD, and SSD service cases as well as the DLPC self-service case to create a continuous departmental look. Available in several case lengths.
Please consult Hillphoenix Engineering Reference Manual for dimensions, plan views and technical specifications. Specifications subject to change without notice. Designed for optimal performance in store environments where temperature and humidity do not exceed 75°F and 55% R.H. Certified to UL 471, ANSI/NSF Standard 2,7,51 and CAN/CSA C22.2.
Self-Service Multi-Deck Refrigerated
Hillphoenix DLPF-R Multi-Deck, Refrigerated, Self-Service Display. Designed for prepackaged deli, bakery, produce, and beverage applications. Merchandise with up to two rows of shelves. Front profile lines up with the SMD, GMD, and SSD service cases as well as the DLPC self-service case to create a continuous departmental look. Available in several case lengths.
Hillphoenix DLPF-R Multi-Deck, Refrigerated, Self-Service Display. Designed for prepackaged deli, bakery, produce, and beverage applications. Merchandise with up to two rows of shelves. Front profile lines up with the SMD, GMD, and SSD service cases as well as the DLPC self-service case to create a continuous departmental look. Available in several case lengths.
Features & Benefits
- Sled runner base construction.
- Standard 50-1/4” H and 42” D.
- 15-15/16” H stainless steel toekick, front and sides.
- 60-degree front dieboard.
- Outside back and 21” D case top painted to match the exterior.
- Painted metal exterior.
- Stainless steel exterior trim.
- 5-1/2” H x 1/2” thick polished, straight die board plex.
- Painted matte black metal interior and trim.
- (1) row each 10” and 16” adjustable flat painted metal shelving.
- Shelf position: flat or angled.
- Painted black metal, flat bottom deck with 2” metal product stop.
- Clearvoyant® LED top lighting.
- On/off light switch.
- Energy efficient fans.
- Solar digital thermometer.
- Front electrical raceway location.
- Remote DX refrigeration package.
Available Options
- Available lengths: 4’, 6’, 8’, 10’, and 12’.
- 22.5°, 45°, and 90° Interior or exterior wedges.
- Alternate toekick and case height: 13-15/16” H for overall case height at 48-1/4".
- Flat front profile.
- Bullet leg base with adjustable height toekick.
- Pedestal base or false pedestal.
- Exterior finishes exterior grade laminate or stainless steel.
- Solid surface, stainless steel, or stone case top.
- White or stainless steel case interior.
- Dual top lighting requires a 2” case top extension.
- (1) row each 10” and 16” adjustable flat painted metal shelving.
- Shelf options: lighted, product stops, and price tag molding.
- ISO outlet/CON outlets (specify vertical or horizontal placement on rear).
- Solid or full-view end panels with mirror-polished, stainless steel interior.
- Thermal glass divider.
- Cart bumper mounted on front panel of case.
- Cart bumper added to end panels.
- Econofrost night cover with or without cassette.
- Polycarbonate night cover.
- Magnetic night shield.
- Rear electrical raceway.
- Refrigeration: Remote glycol or CO2 refrigeration packages.

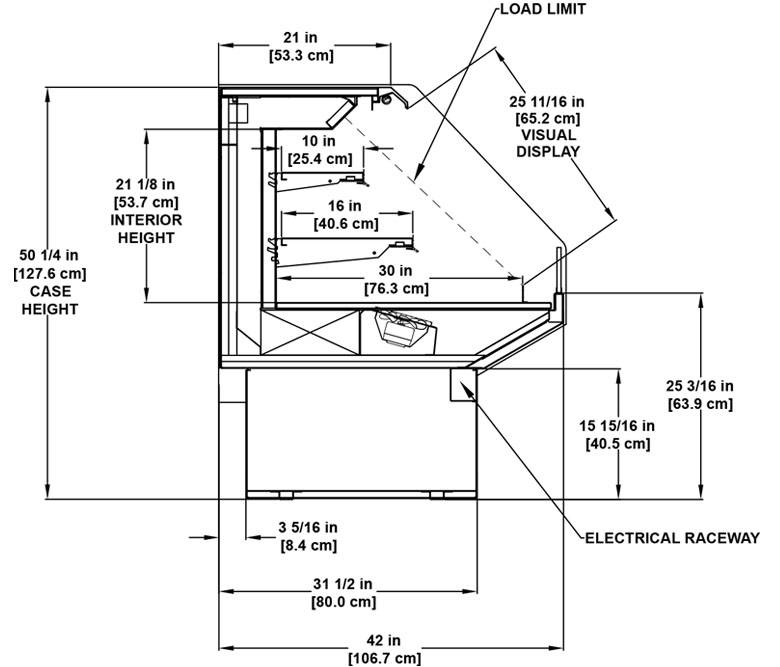

Attributes
- Alternate Heights: -
- Case Depth / Footprint: 42"
- Case Height Standard: 50-1/4"
- Case Length: 4’, 6’, 8’, 10', and 12
- Case Temp: Medium-Temp
- Case Type: Multi-Deck, Remote, Self-Service
- Department: Bakery, Beverage, Deli, General, Produce
- Door Type: -
- Interior Depth: 30"
- Interior Height: 21-1/8"
- Other Models: Deli, bakery, produce, beverage. Also consider the DLPC-R, O2UM-NRG, O2.5UM-NRG, O3UM-NRG and O3UD-NRG
- Product Type: Specialty Cases
- Refrigerated Volume: -
- Remote / Self-Contained: Remote
- Retail Types: Dollar Discount, Drug Store, Food Service, Mass Merchandise, Membership & Warehouse, Supermarket
