DLPC-R

DLPC-R

Self-Service Single-Deck Refrigerated

Hillphoenix DLPC-R Single-Deck, Refrigerated, Self-Service Display. Designed for prepackaged deli, bakery, produce, meat, and seafood applications. Front profile lines up with the SMD, GMD, and SSD service cases as well as the DLPF self-service case to create a continuous departmental look. Available in several case lengths.

Hillphoenix DLPC-R Single-Deck, Refrigerated, Self-Service Display. Designed for prepackaged deli, bakery, produce, meat, and seafood applications. Front profile lines up with the SMD, GMD, and SSD service cases as well as the DLPF self-service case to create a continuous departmental look. Available in several case lengths.

Less

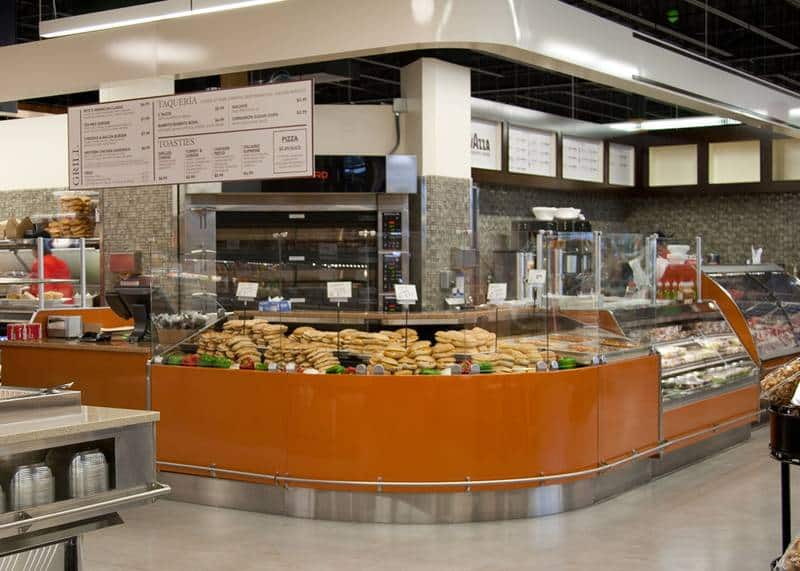

  • DLPC-R-display-case-photo-deli-sandwich-90-ext-wedge-8208.jp...

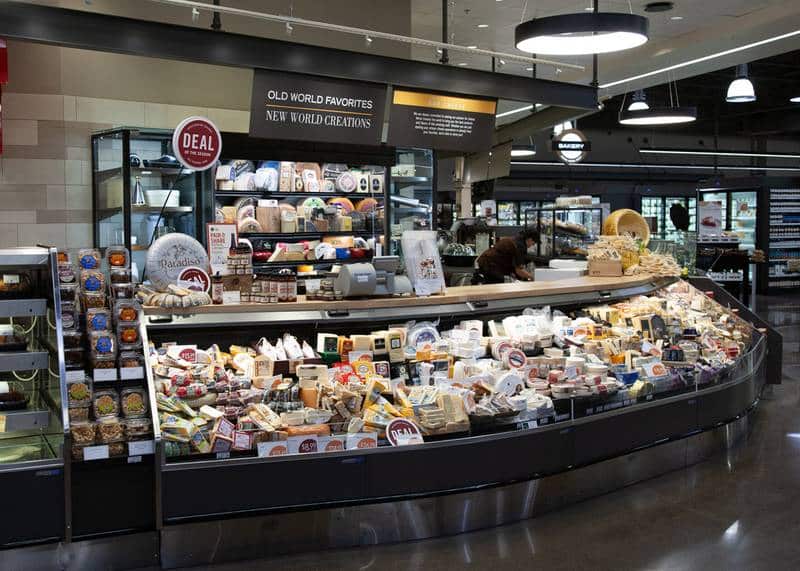

  • DLPC-R-display-case-photo-deli-cheese-22.5-ext-wedge-1020.jp...

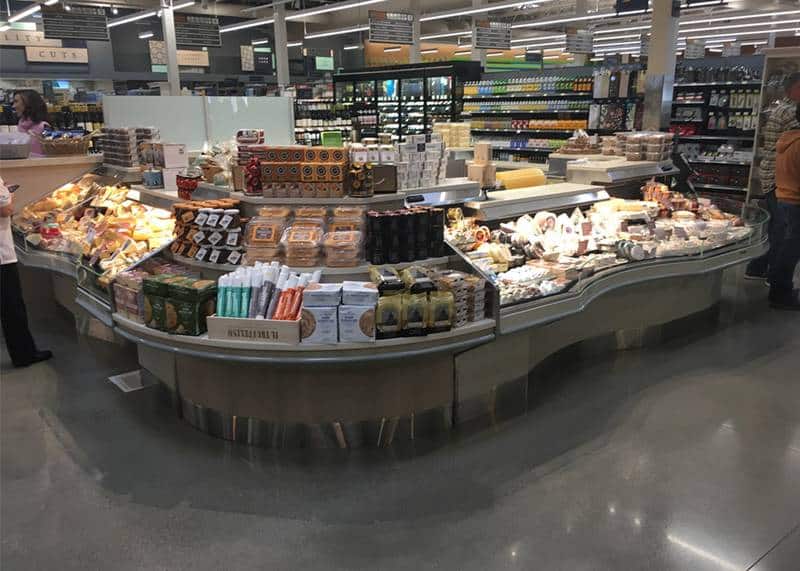

  • DLPC-R-CWC-display-case-photo-deli-cheese-2366.jpg

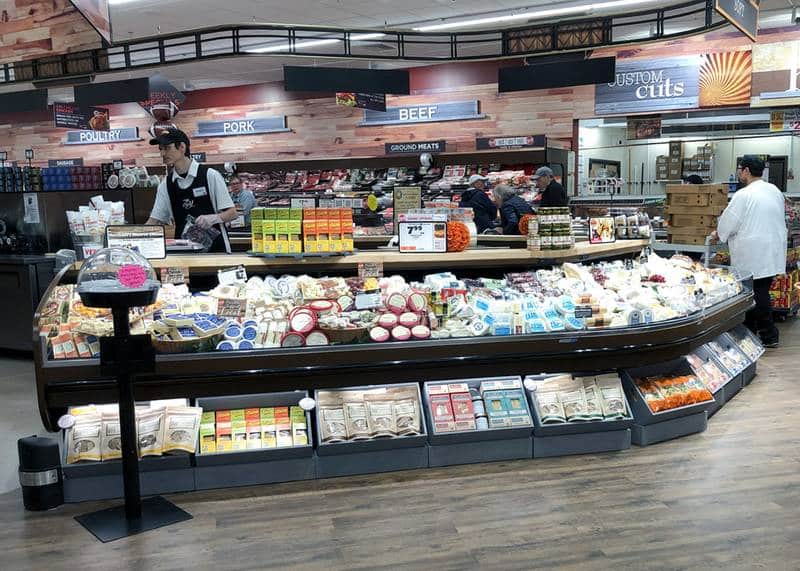

  • DLPC-R-display-case-photo-deli-cheese-45-ext-wedge-1180.jpg

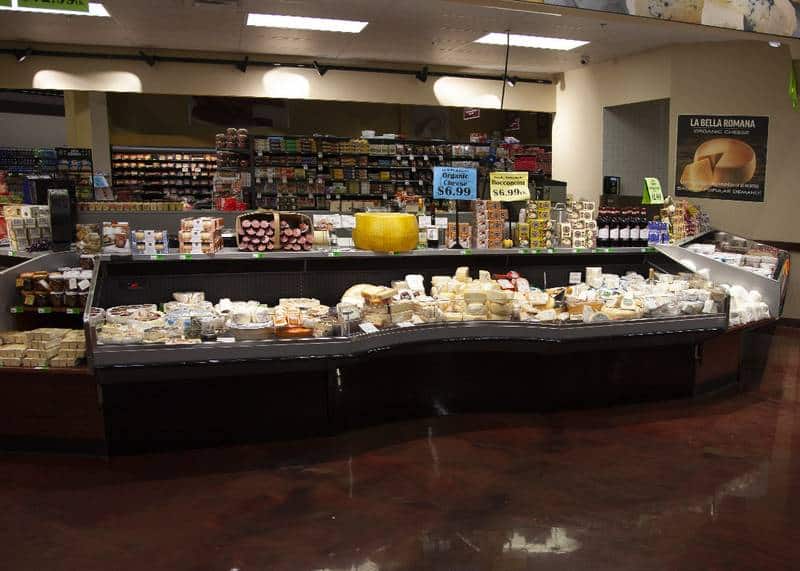

  • DLPC-R-display-case-photo-deli-cheese-curved-front-4342.jpg

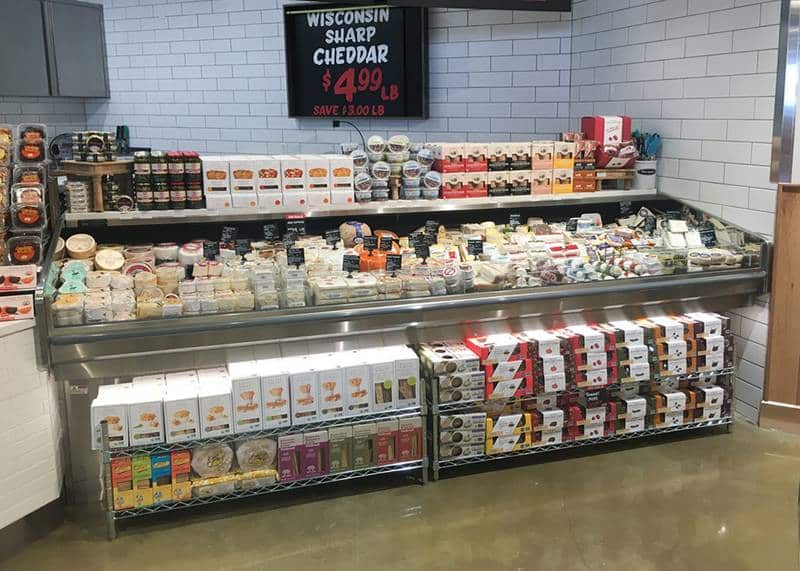

  • DLPC-R-display-case-photo-deli-cheese-3367.jpg

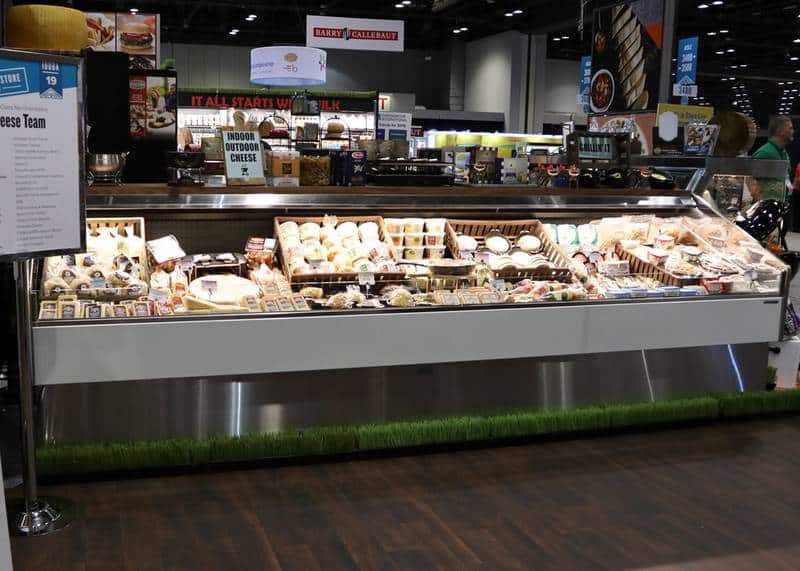

  • DLPC-R-display-case-photo-deli-cheese-2173.jpg.jpg
  • DLPC-R-display-case-photo-deli-cheese-90-ext-wedge-8180.jpg

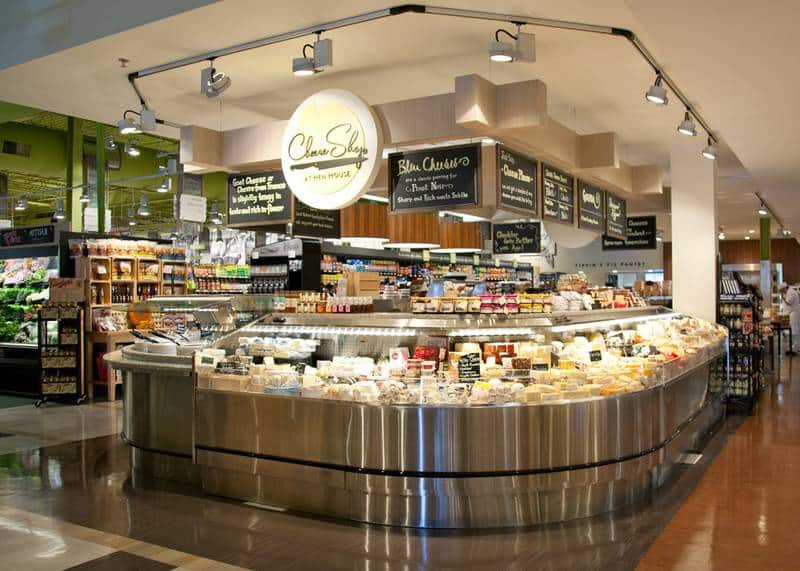

  • DLPC-R-display-case-photo-deli-cheese-90-ext-wedge-6387.jpg

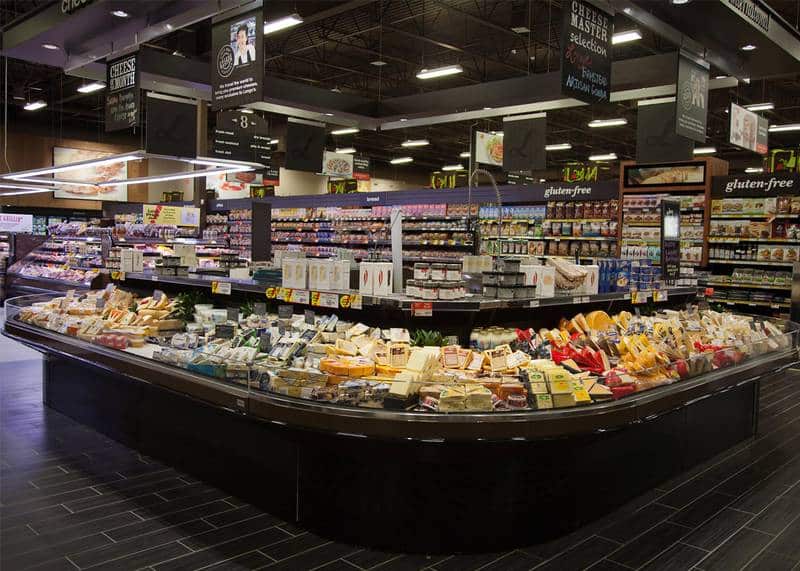

  • DLPC-R-display-case-photo-deli-cheese-90-ext-wedge-0214.jpg

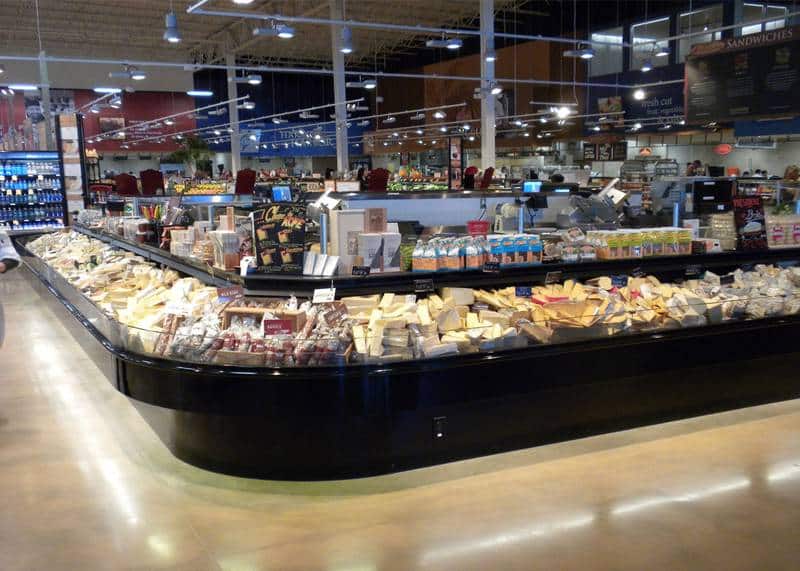

  • DLPC-R-display-case-photo-deli-cheese-90-ext-wedge-0038.jpg
  • DLPC-R-display-case-CAD-drawing-SSD-SMD-profile-rv3.dwg

Installation Manuals

  • DLPC-R-display-case-manual-rv1.pdf

Accessories

  • Standard-Bumper-Color-Chart-Brochure.pdf
  • Standard-Paint-Color-Chart-Brochure-082823-v2.pdf

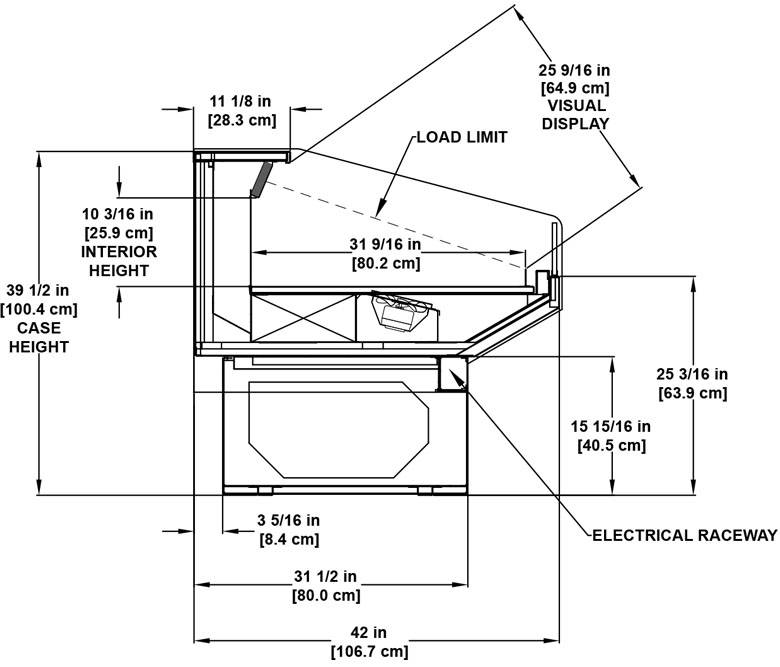

Cross Section

  • DLPC-R-page-profile-rv1.jpg

Sales Literature

  • DLPC-R-display-case-sales-sheet-v1.pdf
  • Deli-cheese-cases-series-sales-sheet.pdf
  • Charcuterie Brochure.pdf
  • Seafood-series-sales-sheet.pdf
  • SMD-profile-family-sales-sheet.pdf

Technical Reference

  • DLPC-R-display-case-tech-reference-sheet-rv7.pdf

Please consult Hillphoenix Engineering Reference Manual for dimensions, plan views and technical specifications. Specifications subject to change without notice. Designed for optimal performance in store environments where temperature and humidity do not exceed 75°F and 55% R.H. Certified to UL 471, ANSI/NSF Standard 2,7,51 and CAN/CSA C22.2.



Self-Service Single-Deck Refrigerated

Hillphoenix DLPC-R Single-Deck, Refrigerated, Self-Service Display. Designed for prepackaged deli, bakery, produce, meat, and seafood applications. Front profile lines up with the SMD, GMD, and SSD service cases as well as the DLPF self-service case to create a continuous departmental look. Available in several case lengths.

Hillphoenix DLPC-R Single-Deck, Refrigerated, Self-Service Display. Designed for prepackaged deli, bakery, produce, meat, and seafood applications. Front profile lines up with the SMD, GMD, and SSD service cases as well as the DLPF self-service case to create a continuous departmental look. Available in several case lengths.

Less


Download OPEN FULL SCREEN
ADD TO DOWNLOAD LIST

Features & Benefits

  • Sled runner base construction.
  • Case dimensions: 39-1/2” H and 42” D.
  • 15-15/16” H stainless steel toekick, front and sides.
  • 60-degree front dieboard.
  • Outside back and 11-1/8” D case top painted to match exterior.
  • Stainless steel exterior trim.
  • 5-1/2” H x 1/2” thick polished, straight die board plex.
  • Painted matte black metal interior and trim.
  • Painted black metal, flat bottom deck with 2” metal product stop.
  • No top light.
  • Energy efficient fans.
  • Solar digital thermometer.
  • Front electrical raceway location.
  • Remote DX refrigeration package.

Available Options

  • Available lengths: 4’, 6’, 8’, 10’, and 12’.
  • 22.5°, 45°, and 90° Interior or exterior wedges.
  • Alternate toekick height: 13-15/16” H.
  • Flat front profile.
  • Bullet leg base with adjustable height toekick.
  • Pedestal base or false pedestal.
  • Exterior finishes exterior grade laminate or stainless steel.
  • Butcher block, solid surface, stainless steel, or stone case top.
  • White or stainless steel case interior.
  • Clearvoyant® LED top light.
  • Perforated step riser (3 tier: base & 2 (24"W x 7.75"D x 1.5"H) or 2 tier: base & 1 (24"W x 15.5"D x 3"H).
  • ISO outlet/CON outlets (specify vertical or horizontal placement on rear).
  • Solid or full-view end panels with mirror-polished, stainless steel interior.
  • Thermal glass divider.
  • Cart bumper mounted on front panel of case.
  • Cart bumper added to end panels.
  • Econofrost night cover with or without cassette.
  • Polycarbonate night cover.
  • Magnetic night shield.
  • Rear electrical raceway.
  • Refrigeration: Remote glycol or CO2 refrigeration packages.

Attributes

  • Alternate Heights: -
  • Case Depth / Footprint: 42"
  • Case Height Standard: 39-1/2"
  • Case Length: 4’, 6’, 8’, 10', and 12
  • Case Temp: Medium-Temp
  • Case Type: Remote, Self-Service, Single-Deck
  • Department: Bakery, Deli
  • Door Type: -
  • Interior Depth: 31-9/16"
  • Interior Height: 10-3/16"
  • Other Models: HS series, OC-NRG, OUM-NRG, , O2UM-NRG and DLPF-R
  • Product Type: Specialty Cases
  • Refrigerated Volume: -
  • Remote / Self-Contained: Remote
  • Retail Types: Food Service, Mass Merchandise, Membership & Warehouse, Supermarket
