CNEZLA
Bunker-style End Cap Display

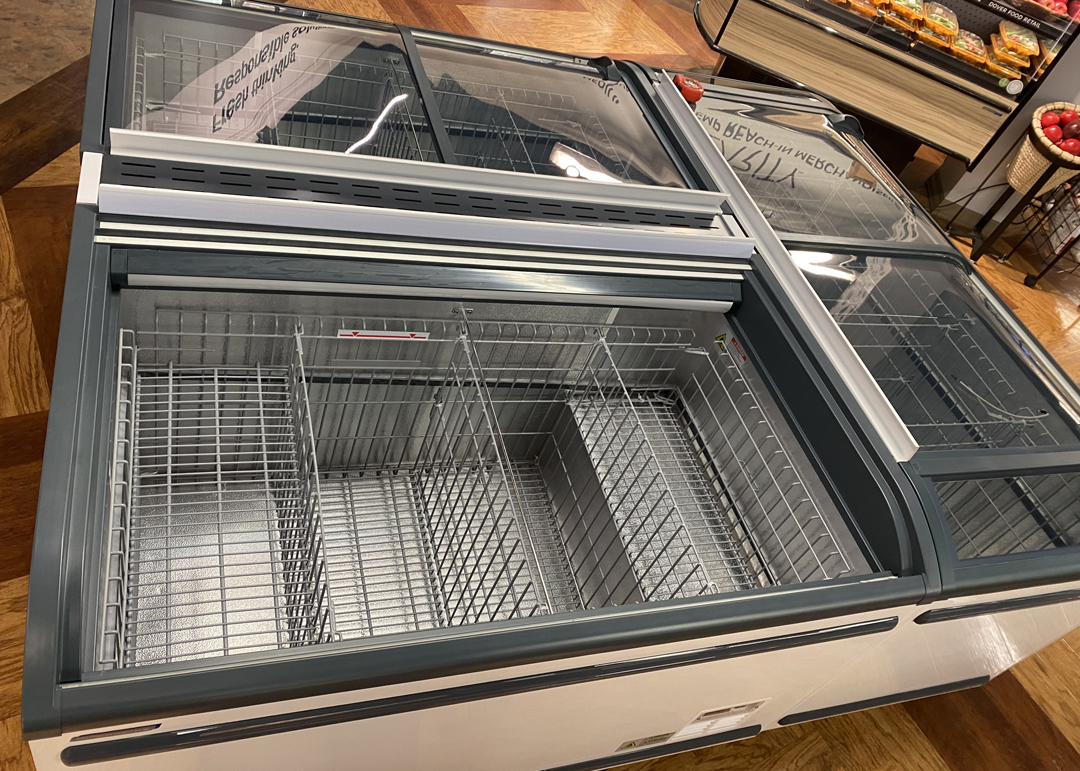

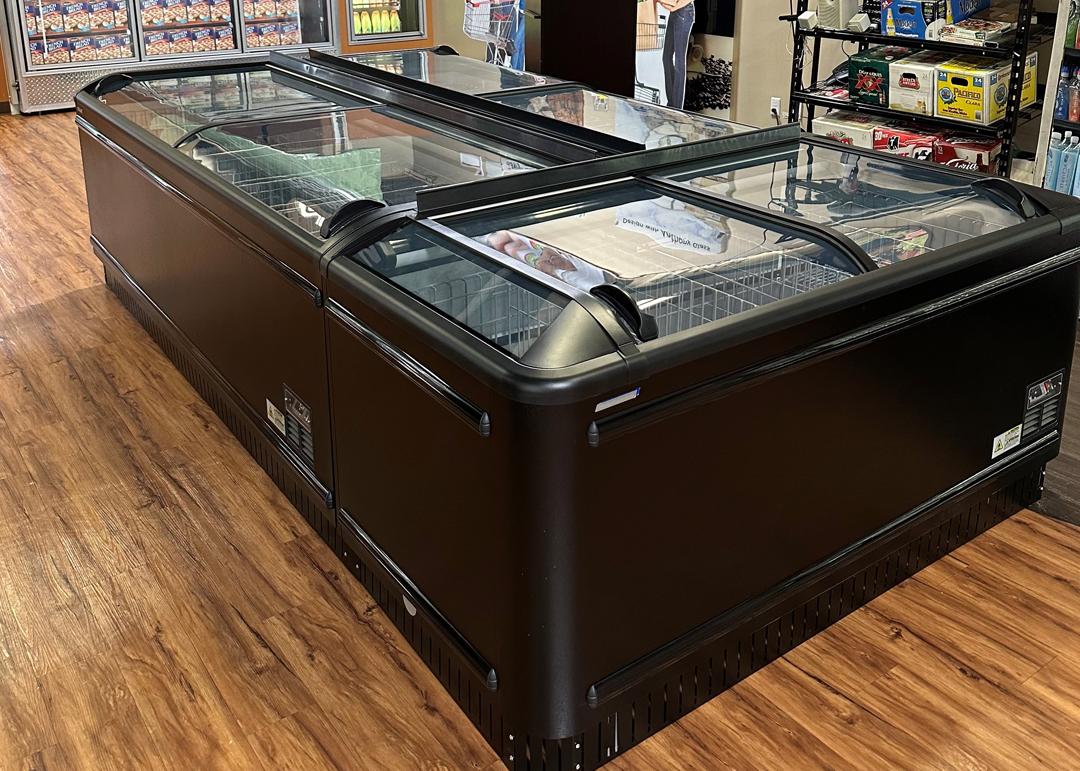

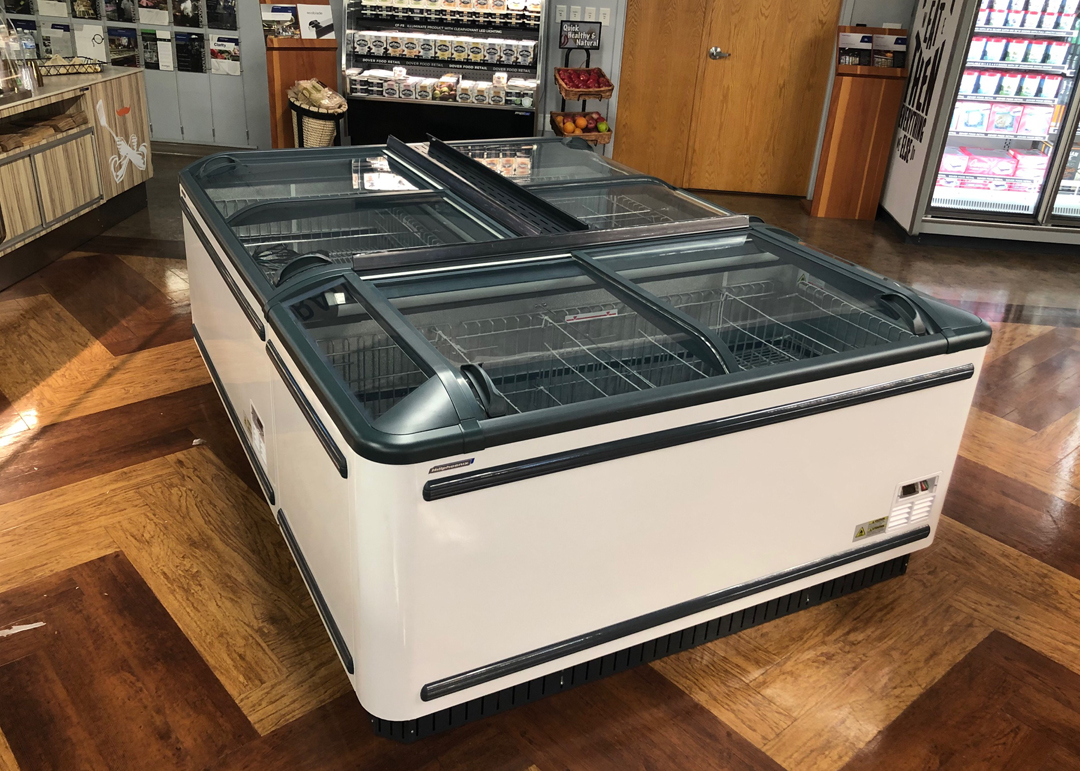

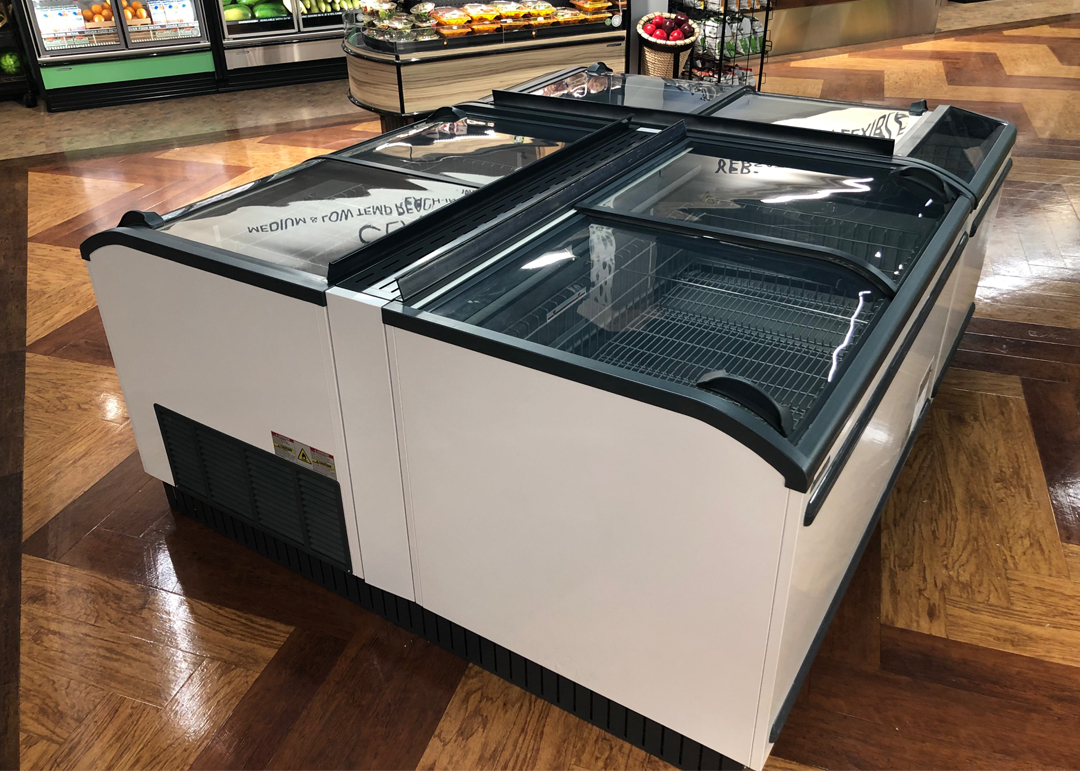

Hillphoenix CNEZLA Self-contained Mobile R-290 Refrigerated Case. Designed as a bunker-style end cap display case with horizontal sliding lids and with R-290 cold wall technology. It's a multi-temperature display for medium temp, low temp, or ice cream temperatures. Available in a 6' case length and can be utilized as a stand-alone case or in an island configuration with the CNZLA to create merchandising flexibility.
Hillphoenix CNEZLA Self-contained Mobile R-290 Refrigerated Case. Designed as a bunker-style end cap display case with horizontal sliding lids and with R-290 cold wall technology. It's a multi-temperature display for medium temp, low temp, or ice cream temperatures. Available in a 6' case length and can be utilized as a stand-alone case or in an island configuration with the CNZLA to create merchandising flexibility.
Please consult Hillphoenix Engineering Reference Manual for dimensions, plan views and technical specifications. Specifications subject to change without notice. Designed for optimal performance in store environments where temperature and humidity do not exceed 75°F and 55% R.H. Certified to UL 471, ANSI/NSF Standard 2,7,51 and CAN/CSA C22.2.
Bunker-style End Cap Display
Hillphoenix CNEZLA Self-contained Mobile R-290 Refrigerated Case. Designed as a bunker-style end cap display case with horizontal sliding lids and with R-290 cold wall technology. It's a multi-temperature display for medium temp, low temp, or ice cream temperatures. Available in a 6' case length and can be utilized as a stand-alone case or in an island configuration with the CNZLA to create merchandising flexibility.
Hillphoenix CNEZLA Self-contained Mobile R-290 Refrigerated Case. Designed as a bunker-style end cap display case with horizontal sliding lids and with R-290 cold wall technology. It's a multi-temperature display for medium temp, low temp, or ice cream temperatures. Available in a 6' case length and can be utilized as a stand-alone case or in an island configuration with the CNZLA to create merchandising flexibility.
Features & Benefits
- Self-contained.
- Propane (R-290) cold wall refrigeration package.

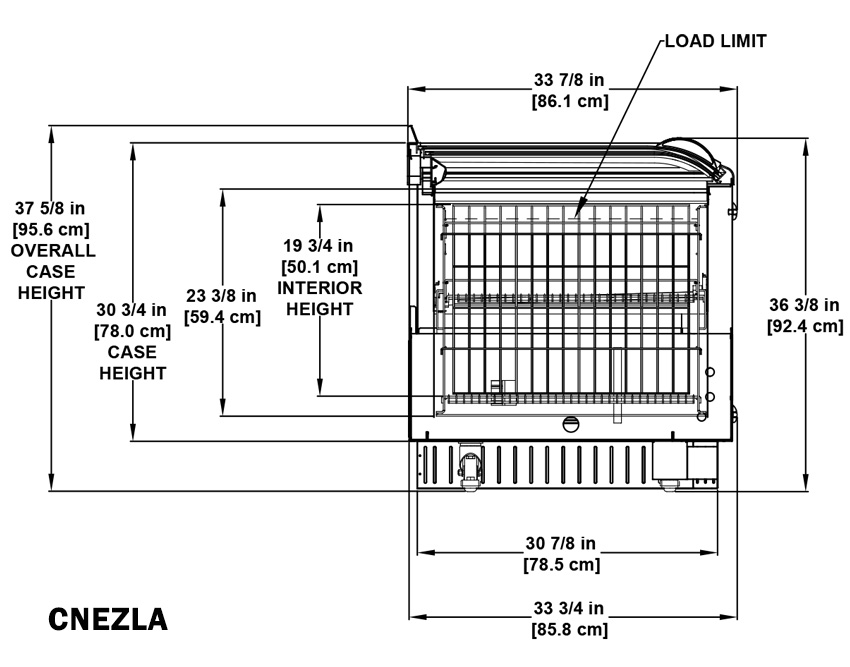

- CNZLA case dimensions: 36-5/8”H and 34-1/6”D.
- CNEZLA end cap case dimensions: 37-1/2”H and 33-7/8”D.
- Painted white metal exterior.
- Horizontal sliding lids with Dark Grey trim.
- Two rows dark gray bumper.
- Dark Grey tag molding mounted to exterior of case.
- Dark Grey vented kick plates and exterior trim.
- Recessed casters with adjustable feet.
- Aluminum interior.•
- Interior Grey wire bin baskets.
- 19-1/2”H stacking load line.
- Multi-temperature capability including medium temp, low temp, and ice cream temp.
- LED interior case lighting.
- Frost resistant surfaces.
- Side to side slider lid movement.
- 6’ Cord and plug.
- Power: 115v, 60Hz, single phase with NEMA 5-15P plug.
Available Options
- CNEZLA end cap case length: 6’
- No miters or wedges available.
- Exterior painted finish: Black
- Trim kit for multi-case island configurations.
- 6’ locking cord and plug NEMA L5-15P
- 50HZ electrical configuration.
Attributes
- Case Depth / Footprint: 33-3/4"
- Case Height: 37-5/8"
- Interior Depth: basket = 25" D
- Case Length: 6'
- Case Temp: Low-Temp, Medium-Temp, Multi-Temp
- Case Type: Single-Deck, Island, Self-Service, Glass Door & Lid, Propane, Self-Contained
- Remote / Self-Contained: Self-Contained
- Product Type: Display Case
Product Videos
CNZLA and CNEZLA How to Change Set Points on Controller
CNZLA and CNEZLA How to Remove and Replace the Bumpers
CNZLA and CNEZLA How to Change the Case Lights
CNZLA and CNEZLA How to Change the Case Lights
