CF
Self-Service Multi-Deck Refrigerated

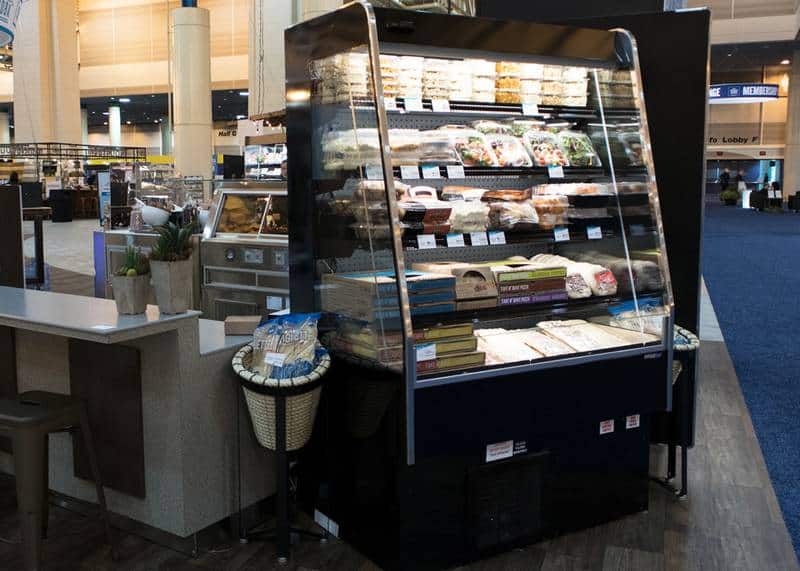

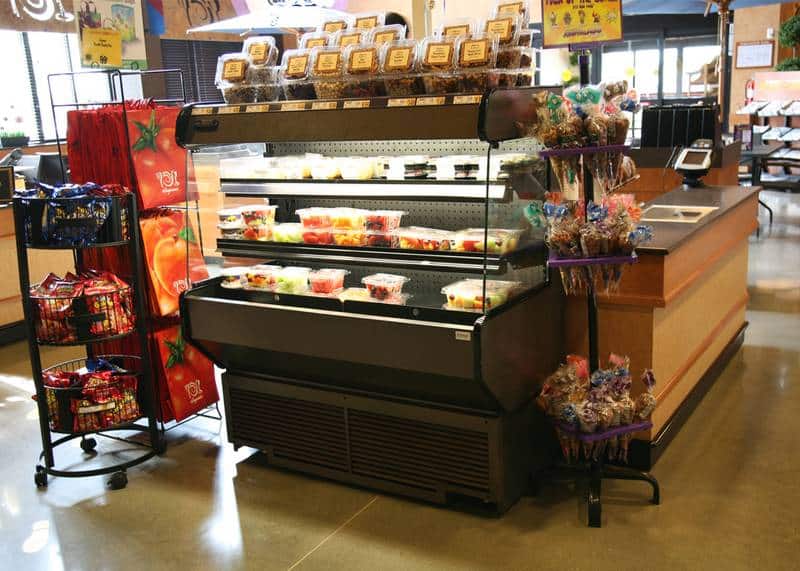

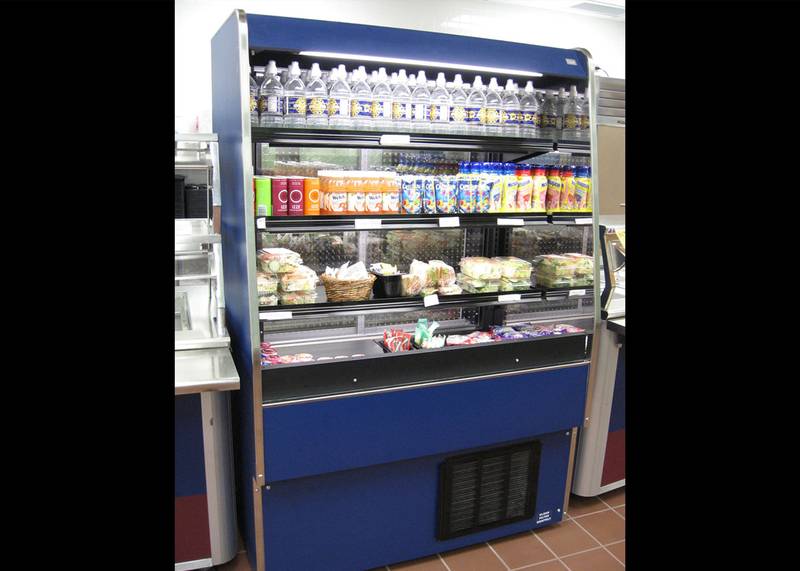

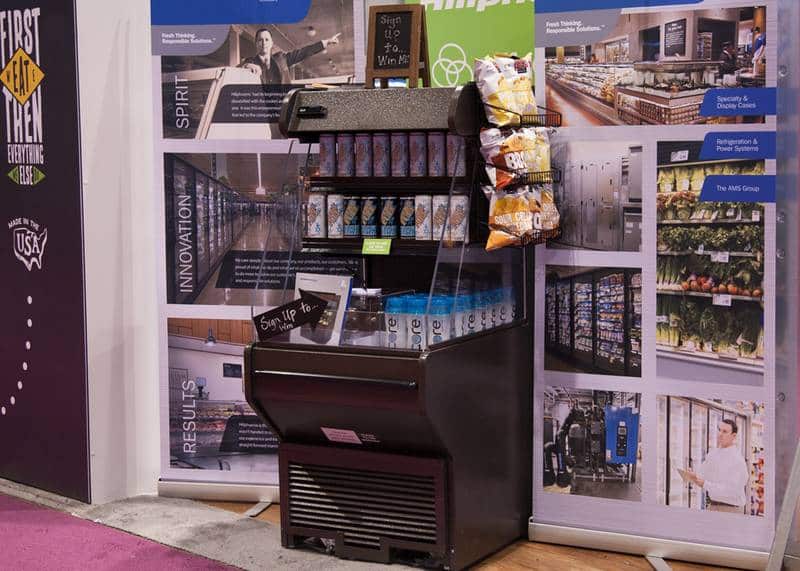

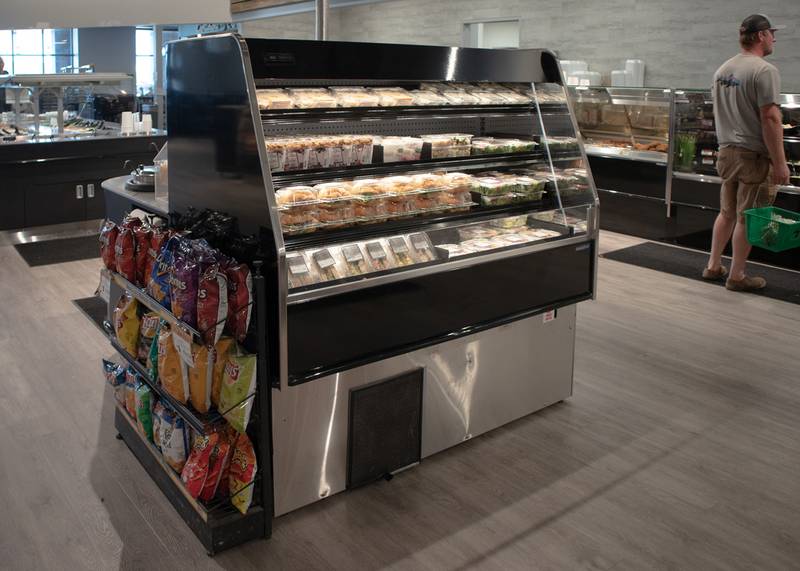

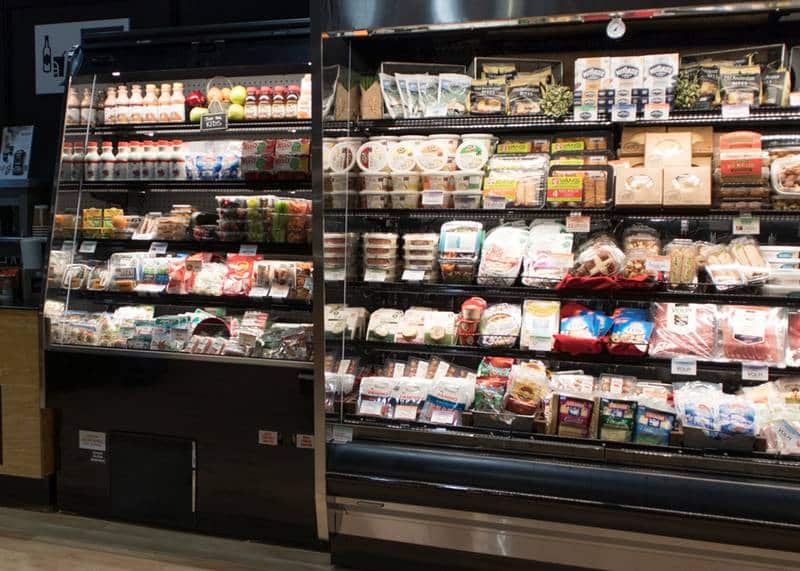

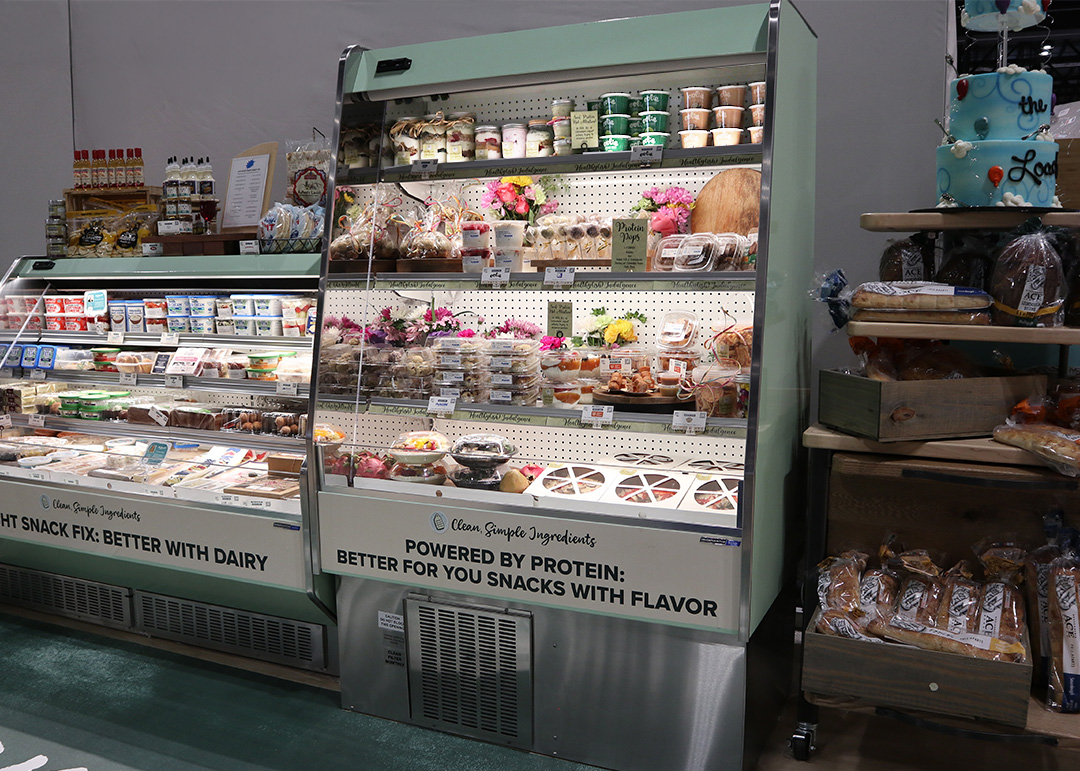

Hillphoenix CF Multi-Deck, Refrigerated, Self-Service Display. Designed for prepackaged bakery, beverage, deli, meat, and produce applications. Standard heights are 57-3/4"H and 78-1/2"H with two depths for maximizing pack-out. Available in several lengths in both remote and self-contained refrigeration. Available in R-290 refrigerant in several case lengths.
Hillphoenix CF Multi-Deck, Refrigerated, Self-Service Display. Designed for prepackaged bakery, beverage, deli, meat, and produce applications. Standard heights are 57-3/4"H and 78-1/2"H with two depths for maximizing pack-out. Available in several lengths in both remote and self-contained refrigeration. Available in R-290 refrigerant in several case lengths.

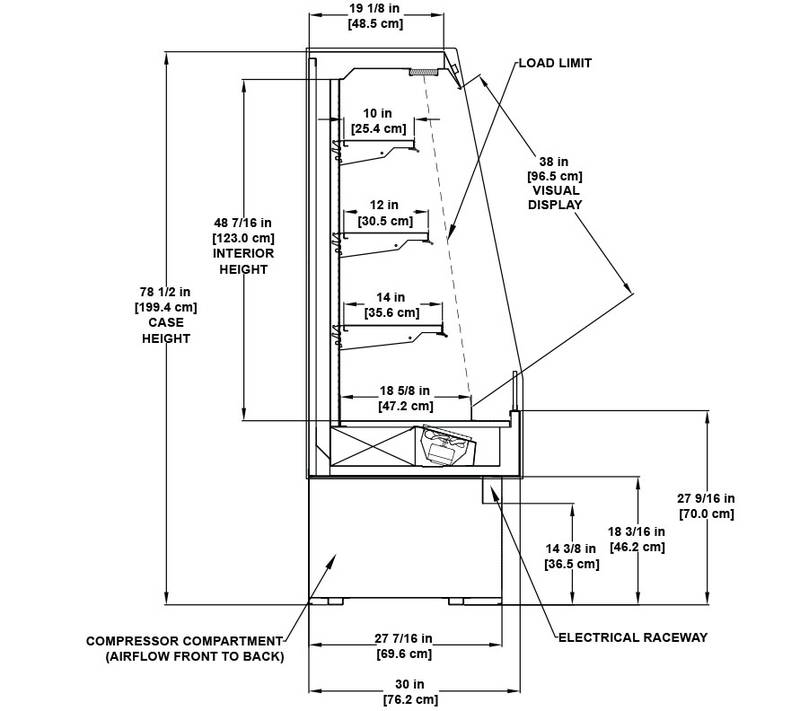

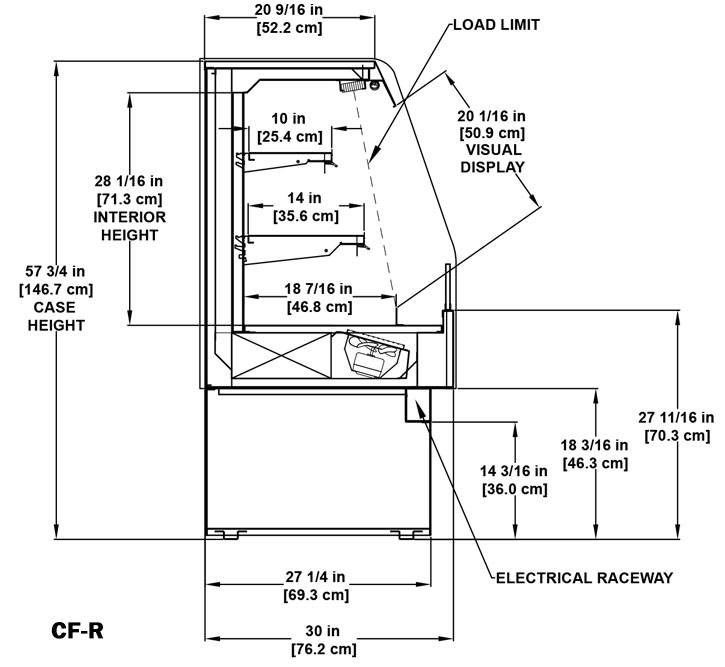

Please consult Hillphoenix Engineering Reference Manual for dimensions, plan views and technical specifications. Specifications subject to change without notice. Designed for optimal performance in store environments where temperature and humidity do not exceed 75°F and 55% R.H. Certified to UL 471, ANSI/NSF Standard 2,7,51 and CAN/CSA C22.2.
Self-Service Multi-Deck Refrigerated
Hillphoenix CF Multi-Deck, Refrigerated, Self-Service Display. Designed for prepackaged bakery, beverage, deli, meat, and produce applications. Standard heights are 57-3/4"H and 78-1/2"H with two depths for maximizing pack-out. Available in several lengths in both remote and self-contained refrigeration. Available in R-290 refrigerant in several case lengths.
Hillphoenix CF Multi-Deck, Refrigerated, Self-Service Display. Designed for prepackaged bakery, beverage, deli, meat, and produce applications. Standard heights are 57-3/4"H and 78-1/2"H with two depths for maximizing pack-out. Available in several lengths in both remote and self-contained refrigeration. Available in R-290 refrigerant in several case lengths.
Features & Benefits
- Sled runner base construction.
- Closed base.
- Flat front profile.
- 18-3/16”H painted metal base, front, and sides.
- Outside back unfinished galvaneal.
- Case top painted to match the exterior.
- Painted metal exterior and trim.
- 5-1/2”H x 1/2” thick polished, straight die board plex.
- Painted metal interior and trim.
- Painted metal shelving: 10” & 14”D shelves in 57-3/4”H case and 10”, 12” & 14”D shelves in 78-1/2”H case.
- Painted metal, fixed, flat bottom deck.
- Left and right solid end panels.
- Energy-efficient fans.
- Solar digital thermometer.
- Front electrical raceway location.

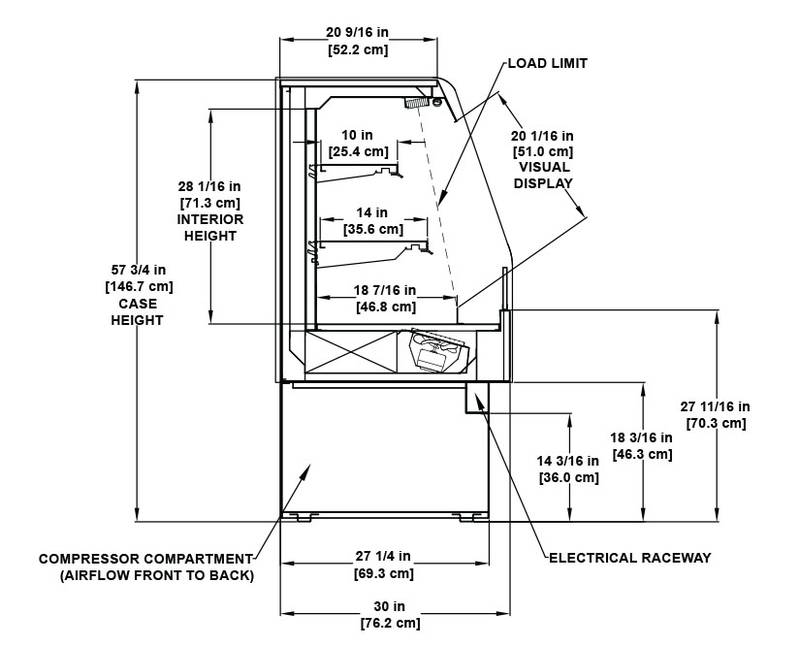

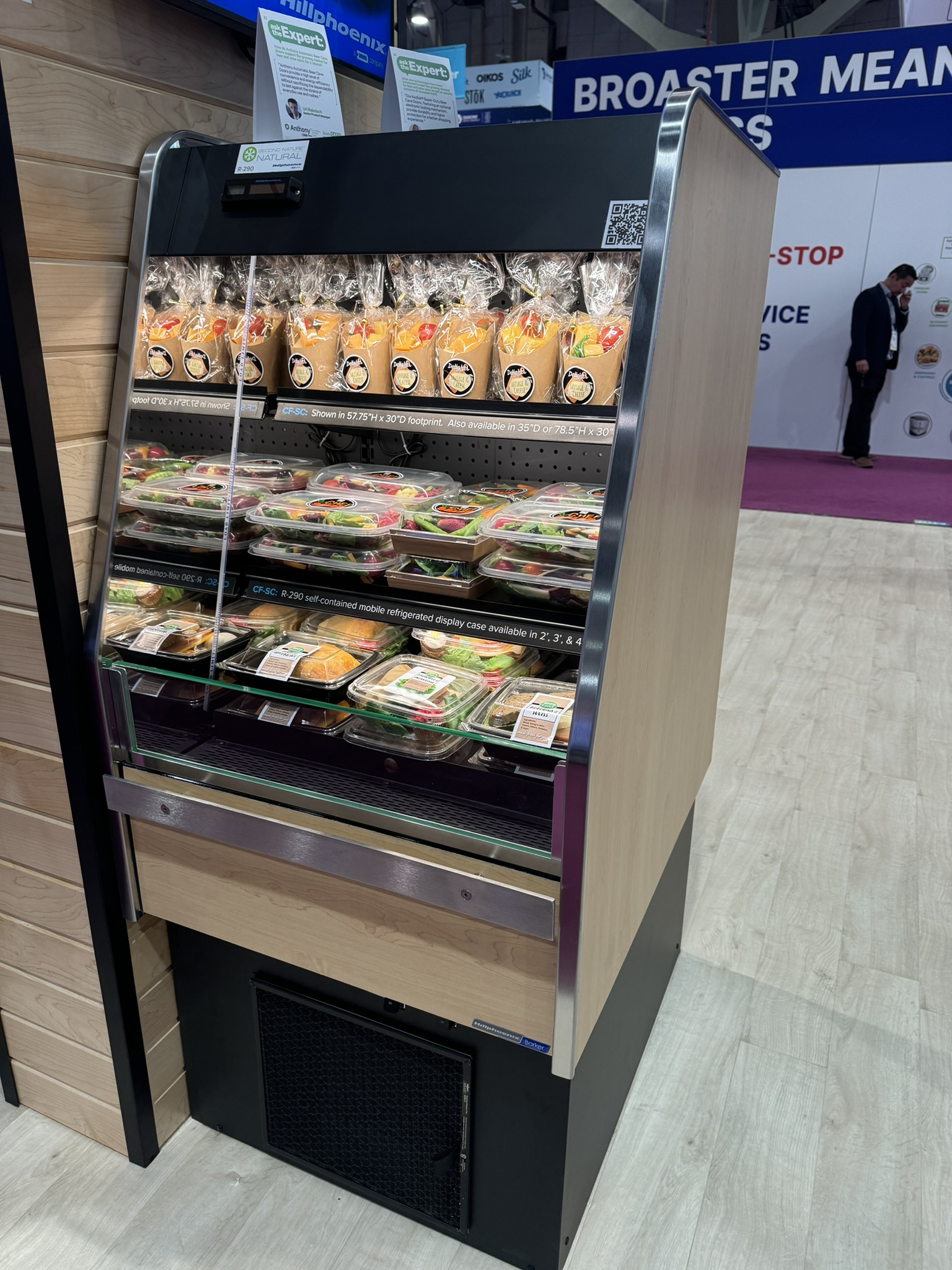

- R-290 refrigeration package.
- R-404a & R-448a on 6’ case lengths only.
- Front-to-back: straight path with rear lower exhaust.
Available Options
- See the sales sheet for case lengths and optional depths.
- Sled runner base construction with leveling pads, and recessed or exposed casters.
- Exterior finishes: exterior grade laminate or stainless steel.
- Exterior back panel: painted metal or stainless.
- Case top: solid surface, butcher block, laminate, poly, or stone finish.
- Interior finishes: stainless steel.
- Clearvoyant® LED top light.
- Separate on/off light switch.
- Shelf finish: Stainless steel or glass.
- Shelf position: flat or angled, lighted, product stops, and price tag molding.

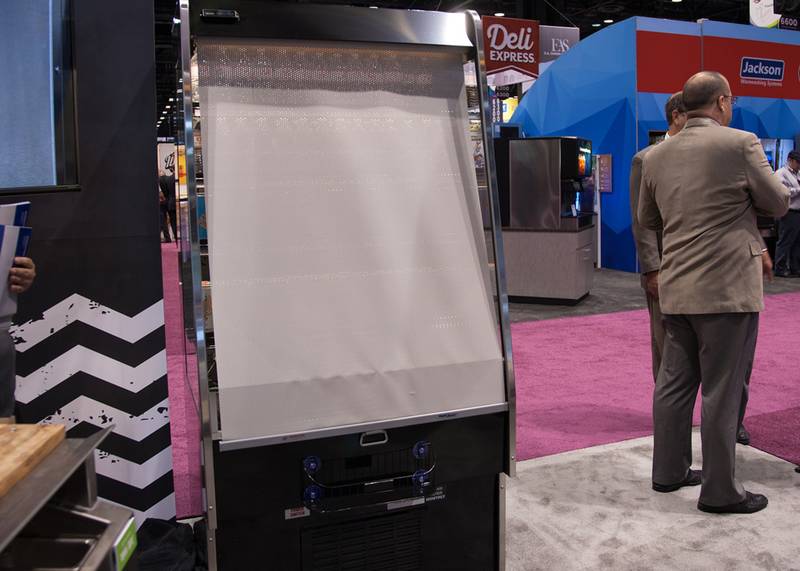

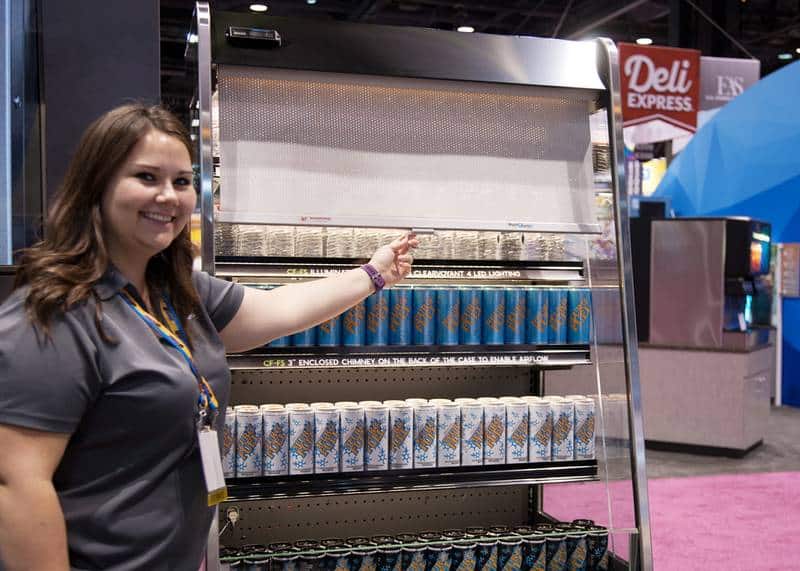

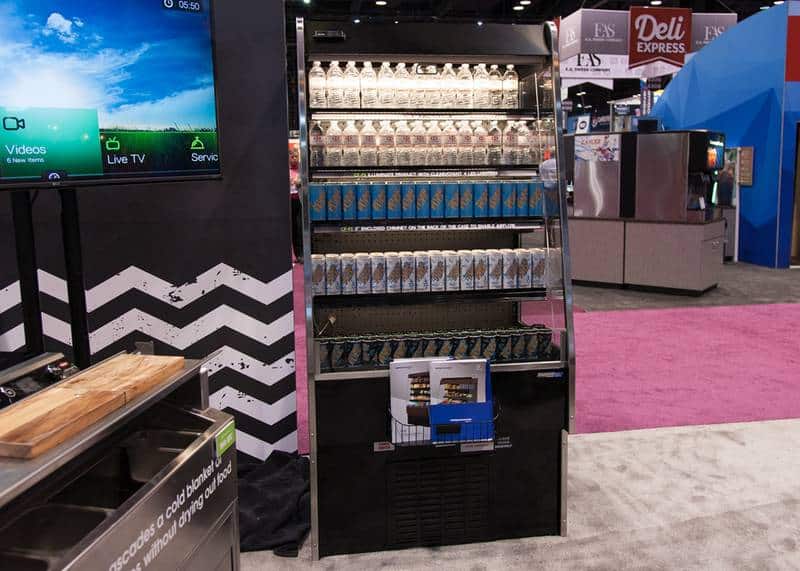

- Night cover: roller shade or polycarbonate panel.

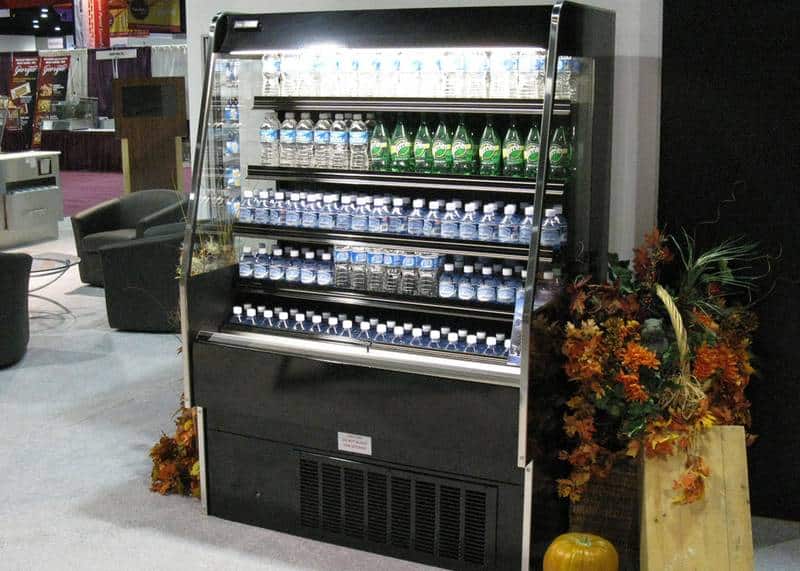

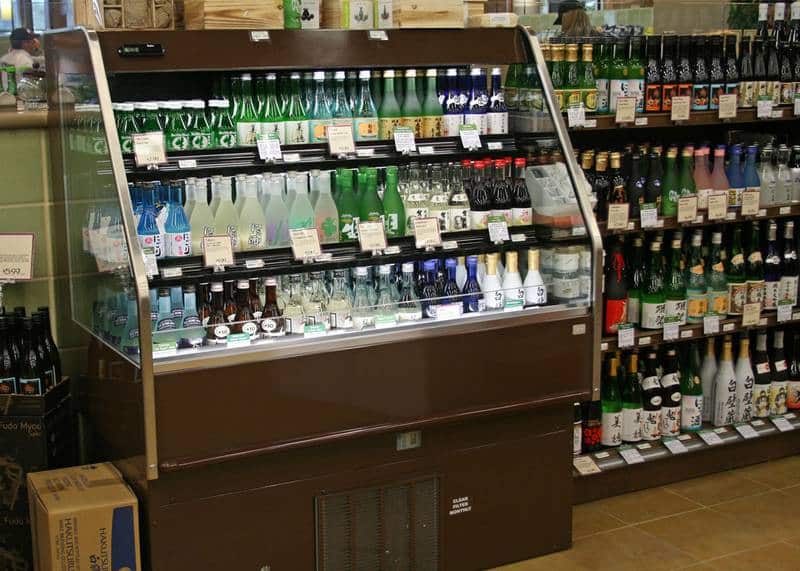

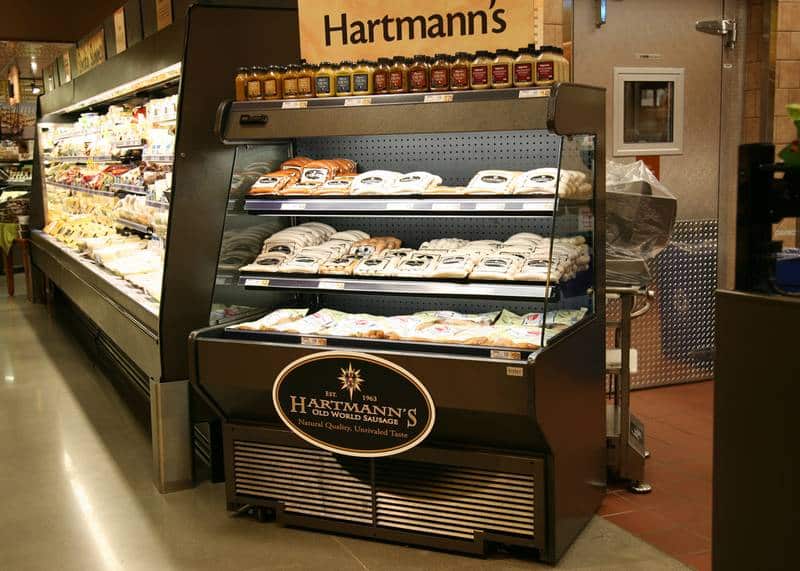

- Full-view, partial-view end panels or thermal divider.
- Cart bumper mounted on the front panel of the case: single or dual row.
- Cart bumper added to end panels.
- 6’ UL cord and plug.
- Rear 2” chimney exhaust front-to-back airflow.
- Back to front airflow exhaust.
- Remote DX, glycol or CO2 refrigeration packages.
Attributes
- Alternate Heights: -
- Case Depth / Footprint: 30"
- Case Height Standard: 57-3/4"
- Case Length: Remote: 4’, 6’, 8’, 10', and 12; Self-contained: 6'; Self-contained R-290: 2' & 4'
- Case Temp: Medium-Temp
- Case Type: Multi-Deck, Remote, Self-Contained, Self-Service
- Department: Bakery, Beverage, Dairy, Deli
- Door Type: -
- Interior Depth: 18-7/16" or 18-5/8"
- Interior Height: 28-1/16" or 48-7/16"
- Other Models: CF-S, 3NDML-NRG, PF, ON3UM-NRG and ON4UM-NRG
- Product Type: Specialty Cases
- Refrigerated Volume: -
- Remote / Self-Contained: Remote and Self-Contained
- Retail Types: Drug Store, Food Service, Mass Merchandise, Membership & Warehouse, Supermarket
- Small Format: Small Format
