BMD-R Deli
Service Multi-Deck Refrigerated

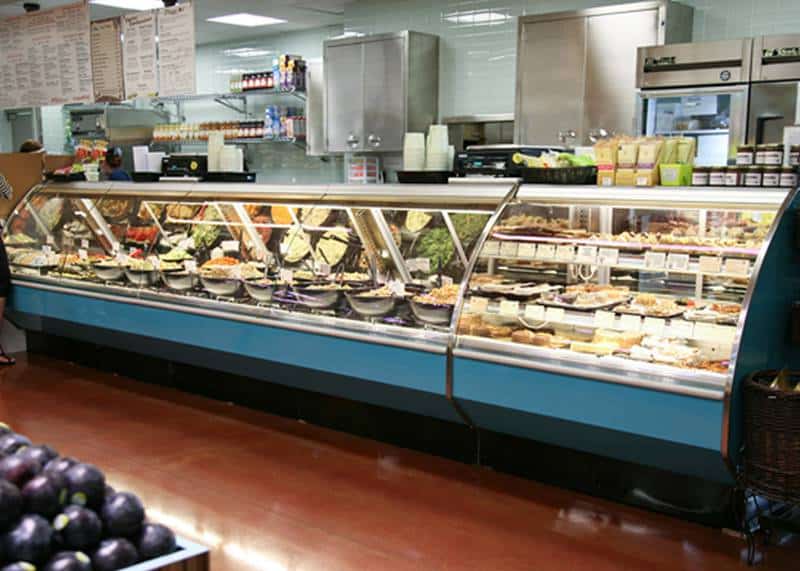

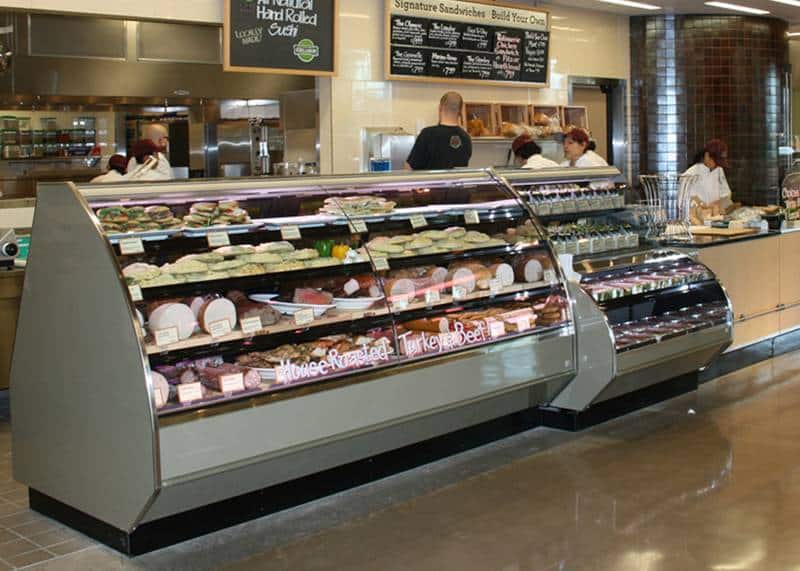

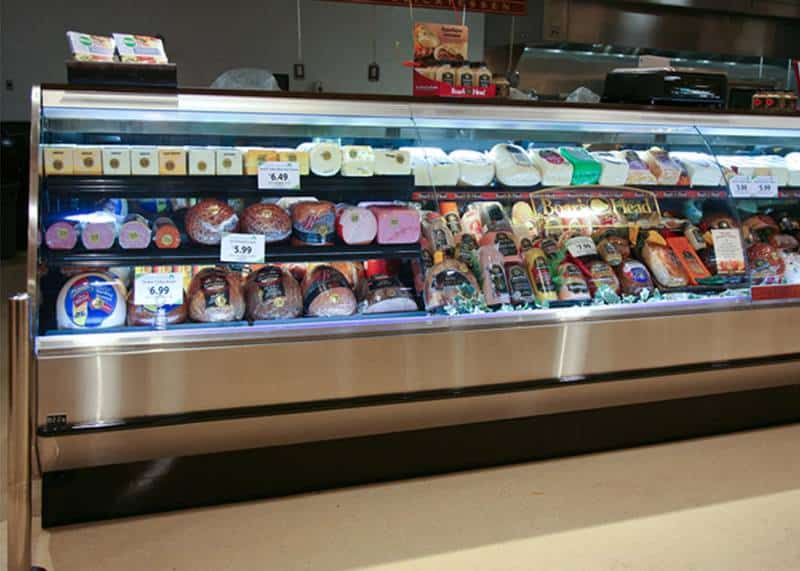

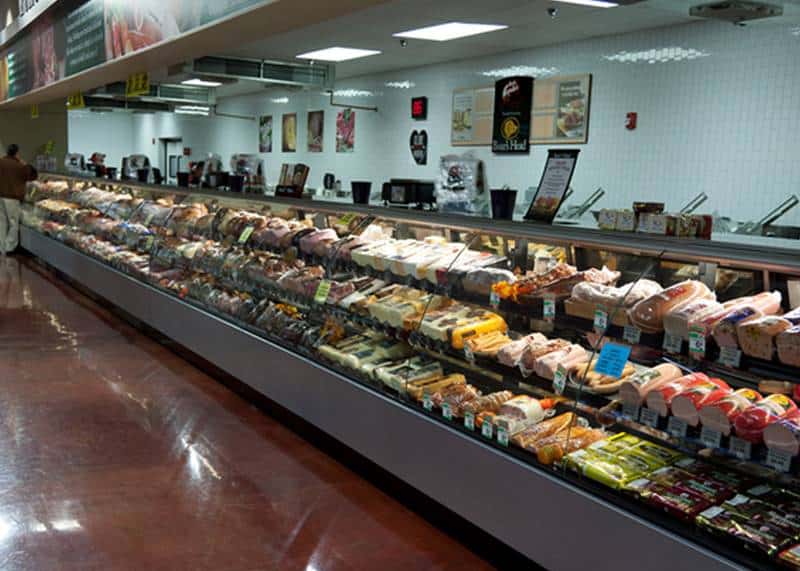

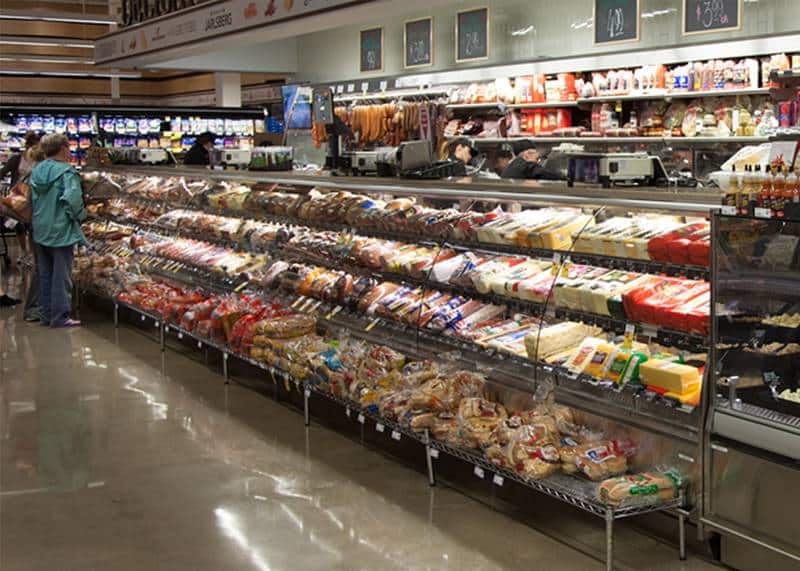

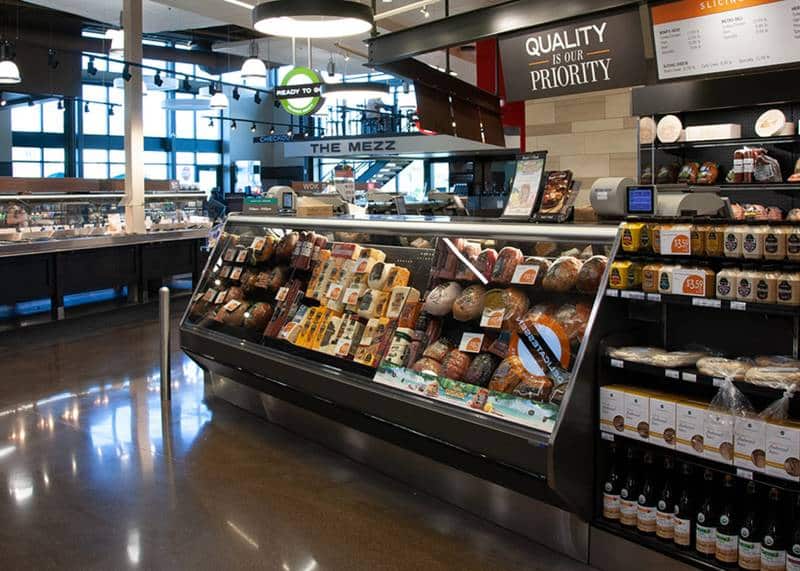

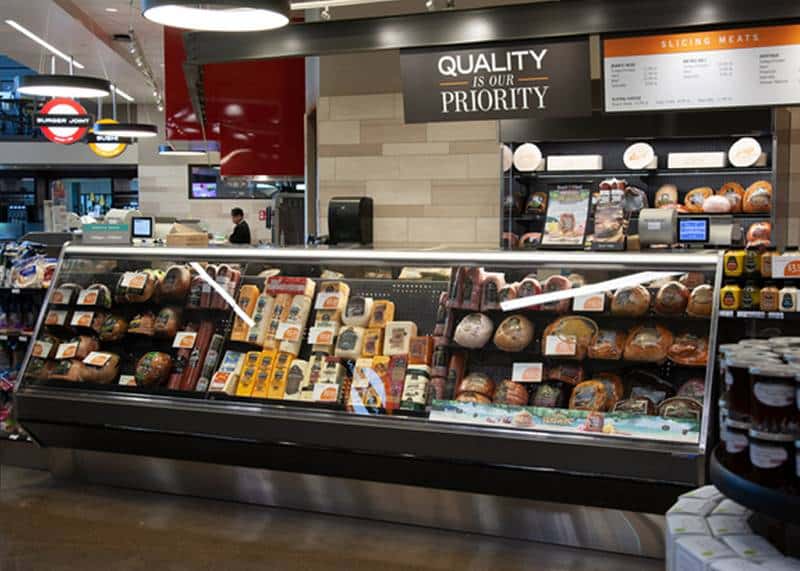

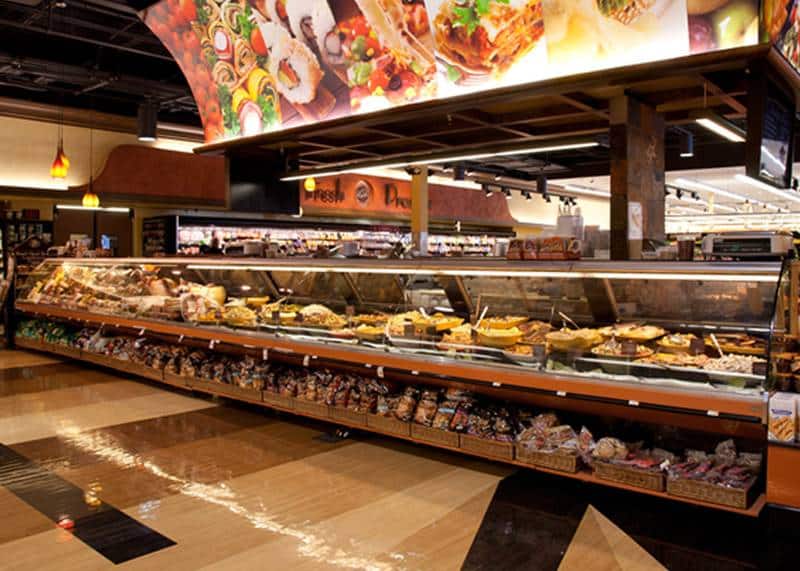

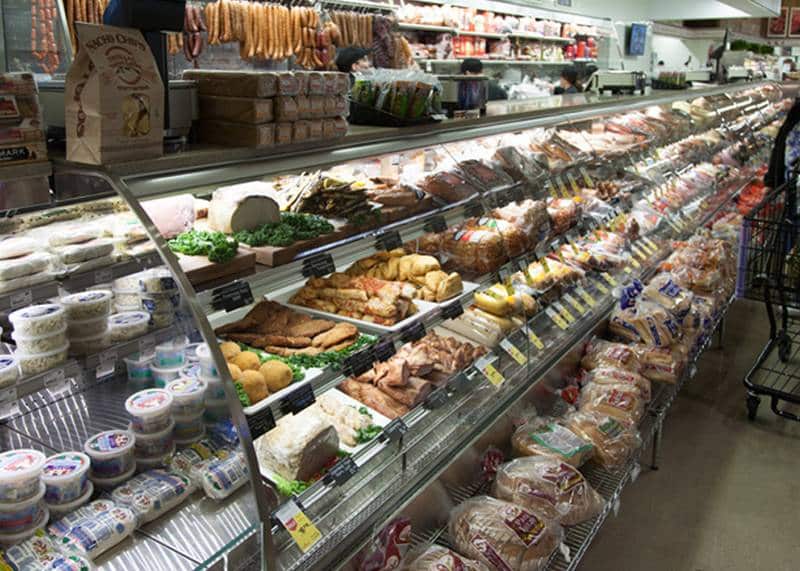

Hillphoenix BMD-R Deli, Multi-Deck, Refrigerated Service Case. Designed for deli applications with up to two rows of shelves for merchandising in the standard 51"H profile. Available in various lengths with flat or curved, lift glass profiles. Front profile lines up with the BMD-R Bakery (remote refrigerated), BMD-D (dry), BMDH (hot), and BMD-RG (remote gravity) for a continuous department look.
Hillphoenix BMD-R Deli, Multi-Deck, Refrigerated Service Case. Designed for deli applications with up to two rows of shelves for merchandising in the standard 51"H profile. Available in various lengths with flat or curved, lift glass profiles. Front profile lines up with the BMD-R Bakery (remote refrigerated), BMD-D (dry), BMDH (hot), and BMD-RG (remote gravity) for a continuous department look.
Please consult Hillphoenix Engineering Reference Manual for dimensions, plan views and technical specifications. Specifications subject to change without notice. Designed for optimal performance in store environments where temperature and humidity do not exceed 75°F and 55% R.H. Certified to UL 471, ANSI/NSF Standard 2,7,51 and CAN/CSA C22.2.
Service Multi-Deck Refrigerated
Hillphoenix BMD-R Deli, Multi-Deck, Refrigerated Service Case. Designed for deli applications with up to two rows of shelves for merchandising in the standard 51"H profile. Available in various lengths with flat or curved, lift glass profiles. Front profile lines up with the BMD-R Bakery (remote refrigerated), BMD-D (dry), BMDH (hot), and BMD-RG (remote gravity) for a continuous department look.
Hillphoenix BMD-R Deli, Multi-Deck, Refrigerated Service Case. Designed for deli applications with up to two rows of shelves for merchandising in the standard 51"H profile. Available in various lengths with flat or curved, lift glass profiles. Front profile lines up with the BMD-R Bakery (remote refrigerated), BMD-D (dry), BMDH (hot), and BMD-RG (remote gravity) for a continuous department look.
Features & Benefits
- Sled runner base construction.
- Standard 51-1/8”H and 44”D .
- 7-13/16”H toekick height.
- 45 degree front dieboard.
- Painted metal exterior.
- Stainless steel base trim, front, sides, & rear.
- Stainless steel exterior trim.
- Stainless steel outside back and case top.
- Reflective rear load doors with black frames.
- Single-pane, regular-glare, flat lift front glass.
- Painted matte black metal interior and trim.
- Black painted metal flat bottom merchandising deck.
- Clearvoyant® LED dual top lighting.
- Energy efficient fans.
- Solar digital thermometer.
- Rear electrical raceway location.
- Remote DX refrigeration package.
Available Options
- Available lengths: 4’, 6’, 8’, 10’ and 12’.
- Case heights available: 48” and 54”.
- Interior or exterior miters up to 22.5° available.
- Alternate 6-5/16”H toekick height.

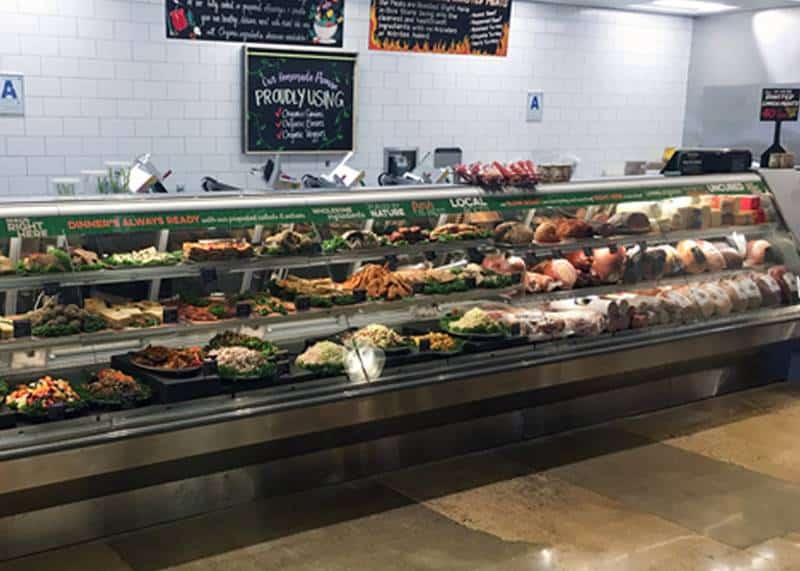

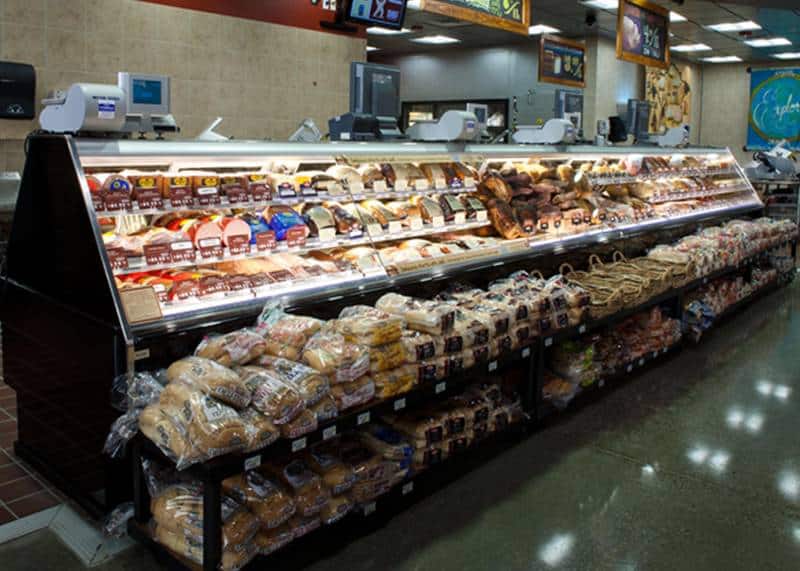

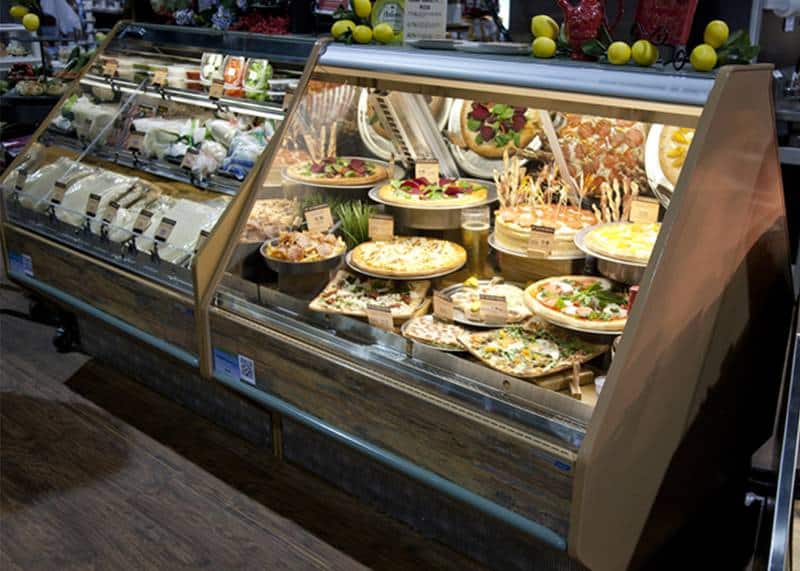

- Flat front profile.
- Bullet leg base with adjustable height toekick.
- Pedestal base or false pedestal base.
- Exterior finishes: exterior grade laminate or stainless steel.
- Interior finishes: painted white or stainless steel.
- Solid surface or stone case top.
- Non-glare flat lift front glass.
- Front glass masking.

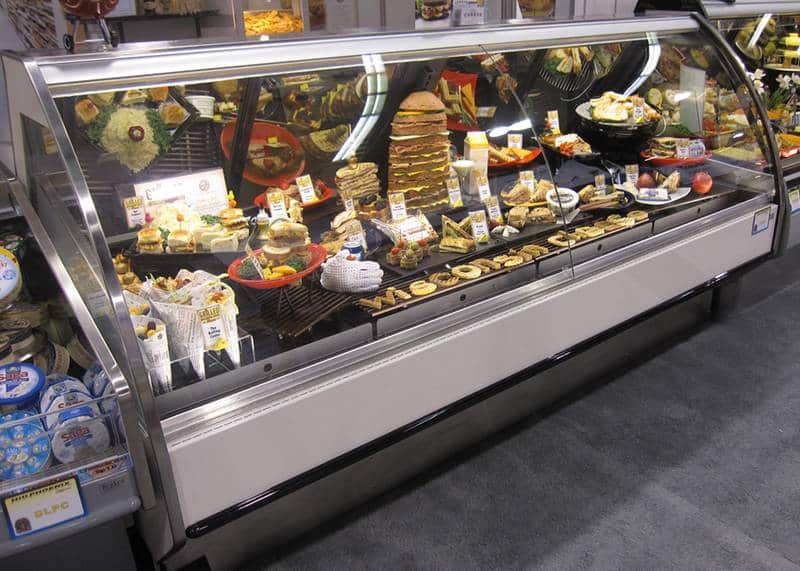

- Curved lift front glass: specify regular glare or non-glare.
- (1) row (1) 12” metal shelving on 48”H case.
- (2) rows (1) 10” and (1) 14” metal shelving on 51”H case.
- (3) rows (1) 8”, (1) 14”, and (1) 16” shelving on 54”H case.
- Shelf type: glass, painted metal, or stainless steel.
- Shelf options: lighted, product stops, and price tag molding
- Integrated case top scale stand or adjustable scale stand.
- Rear flip-up work boards (fixed or flip-up) in poly, stainless steel, or solid surface.
- Paper cutters.
- ISO outlet/CON outlets (specify vertical or horizontal placement on rear).
- Clear rear load doors.
- Gray rear load door frames.
- Solid or full-view end panels with mirror-polished, stainless steel interior.
- Thermal divider.
- Cart bumper mounted on front panel of case.
- Cart bumper added to end panels.
- Front electrical raceway.
- Remote glycol or CO2 refrigeration packages.

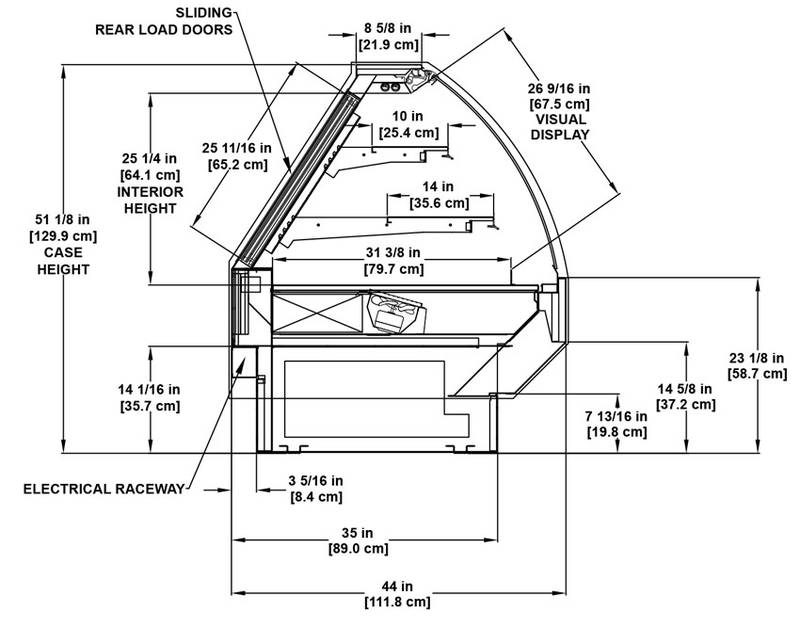

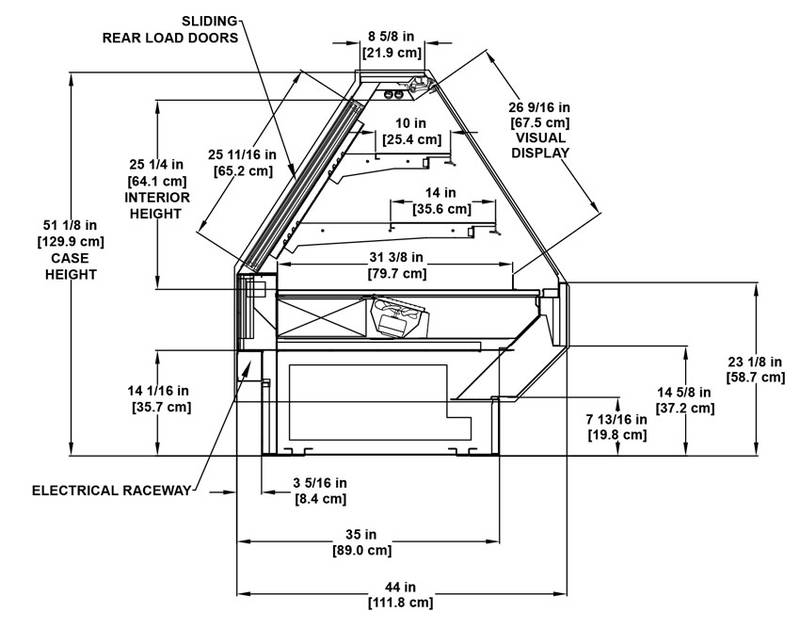

Attributes
- Alternate Heights: 48-1/8" or 54-1/8"
- Case Depth / Footprint: 44"
- Case Height Standard: 51-1/8"
- Case Length: 4’, 6’, 8’, 10', and 12
- Case Temp: Medium-Temp
- Case Type: Multi-Deck, Rear-Load, Remote, Service
- Department: Deli
- Door Type: -
- Interior Depth: 31-3/8"
- Interior Height: 25-1/4"
- Other Models: BMDH, BMD-RG, SMD-R, GMD-R, S2SB-R, SSA-R and SSF-R
- Product Type: Specialty Cases
- Refrigerated Volume: -
- Remote / Self-Contained: Remote
- Retail Types: Food Service, Mass Merchandise, Membership & Warehouse, Supermarket
