BMD-R Bakery
Service Multi-Deck Refrigerated

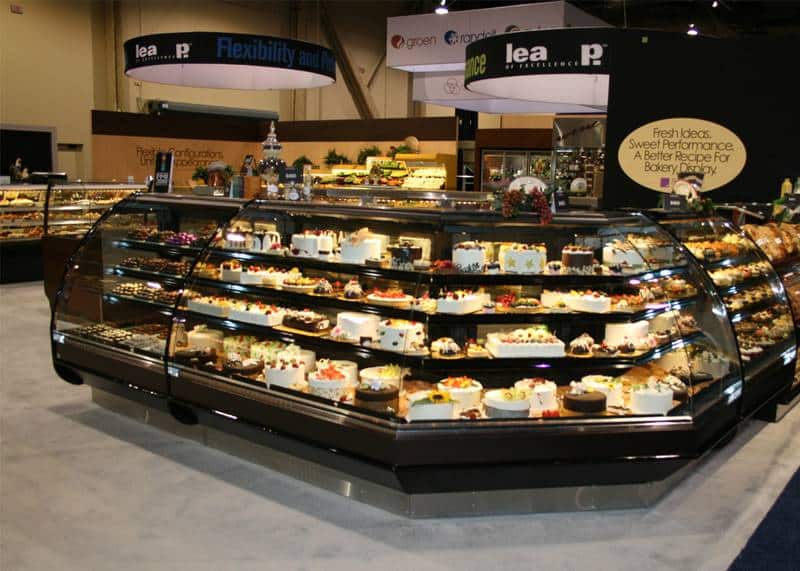

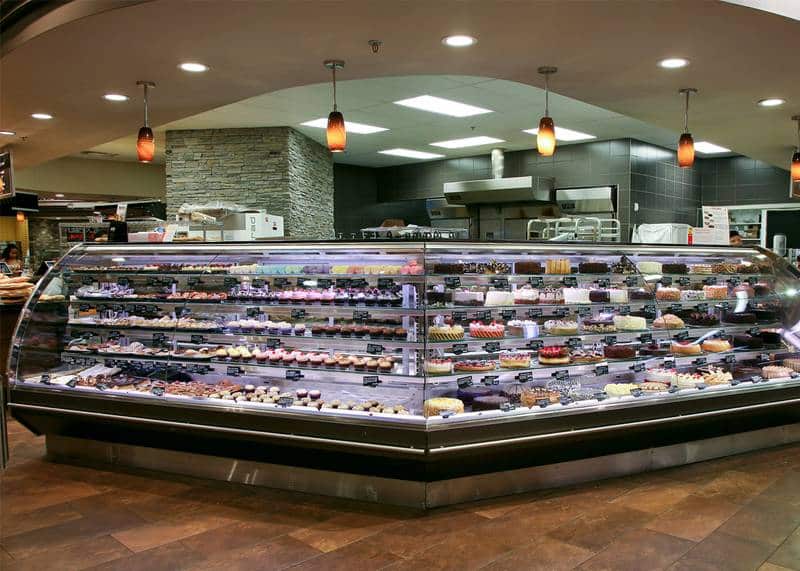

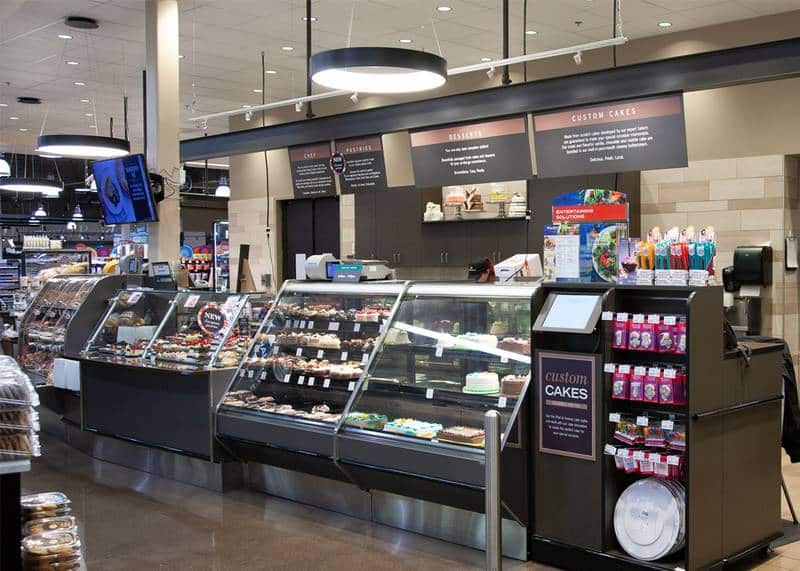

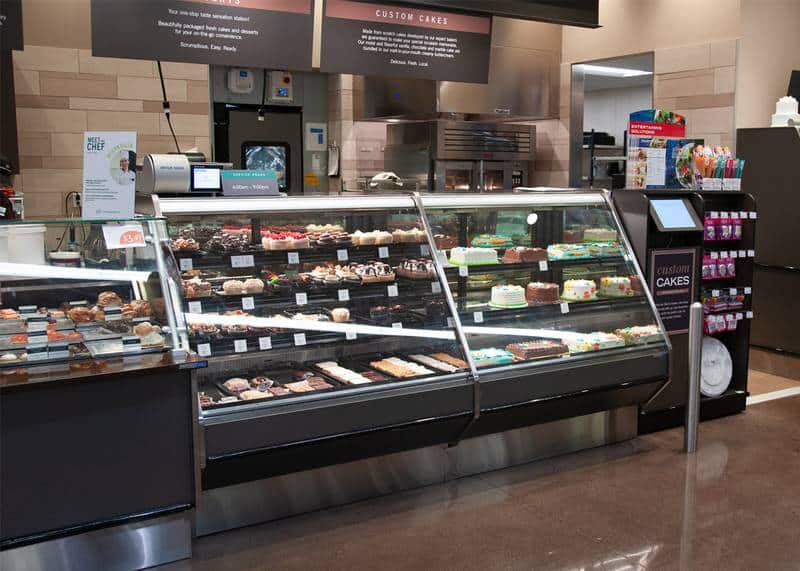

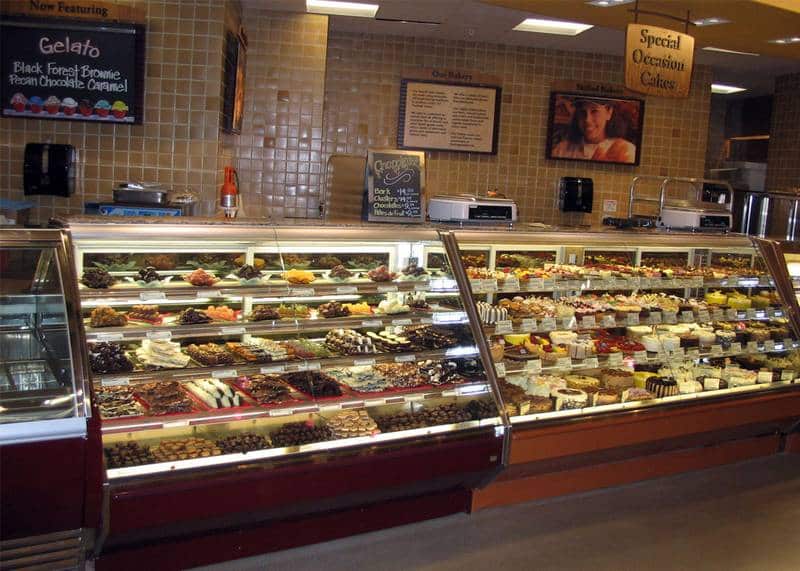

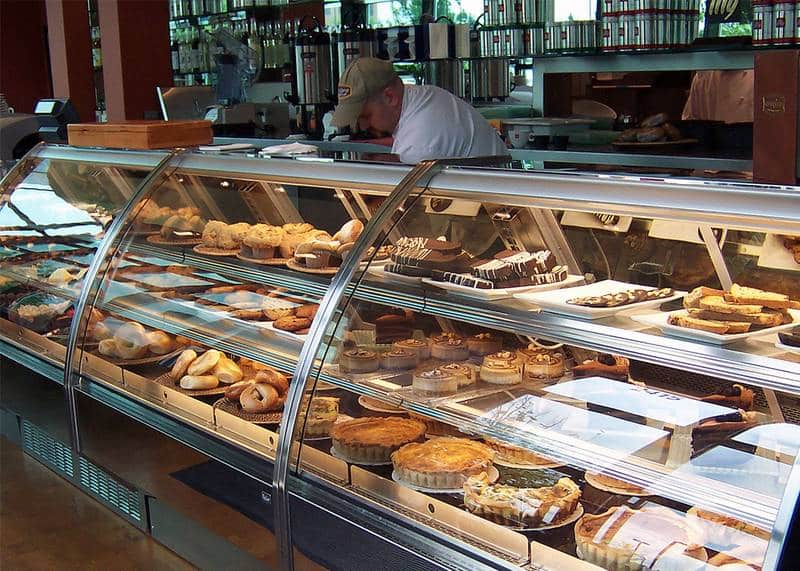

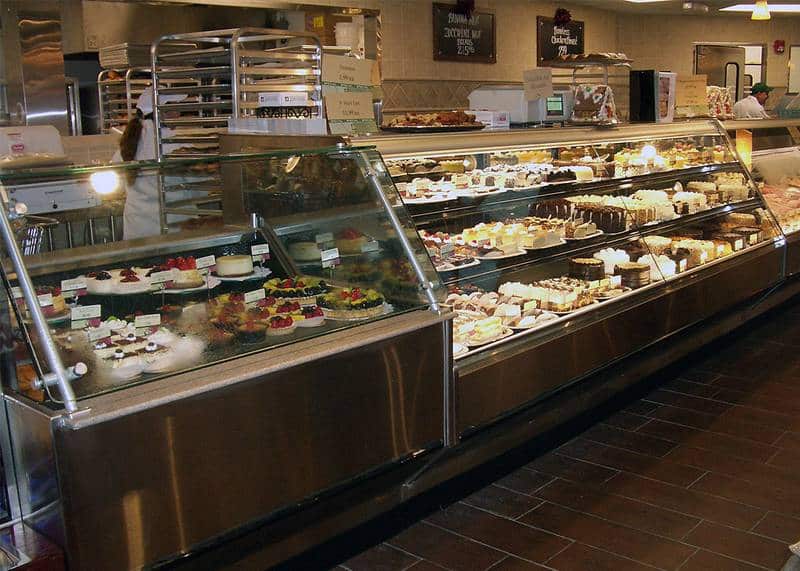

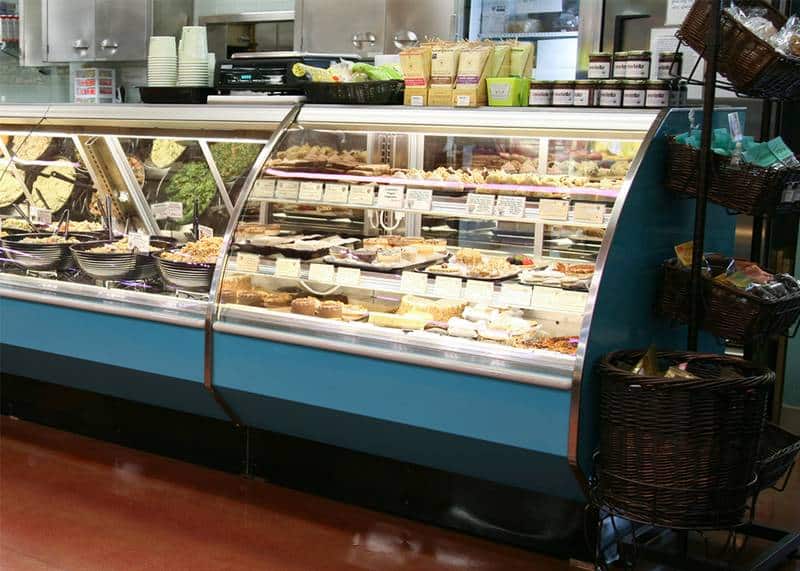

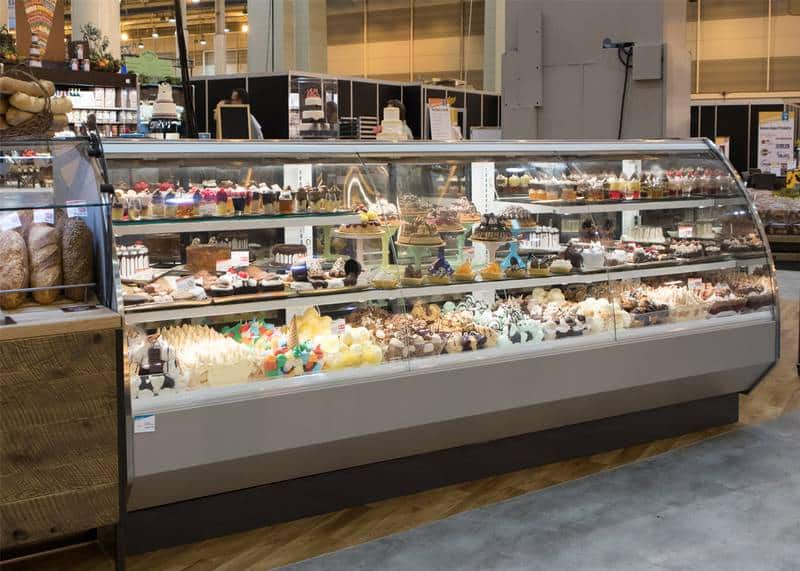

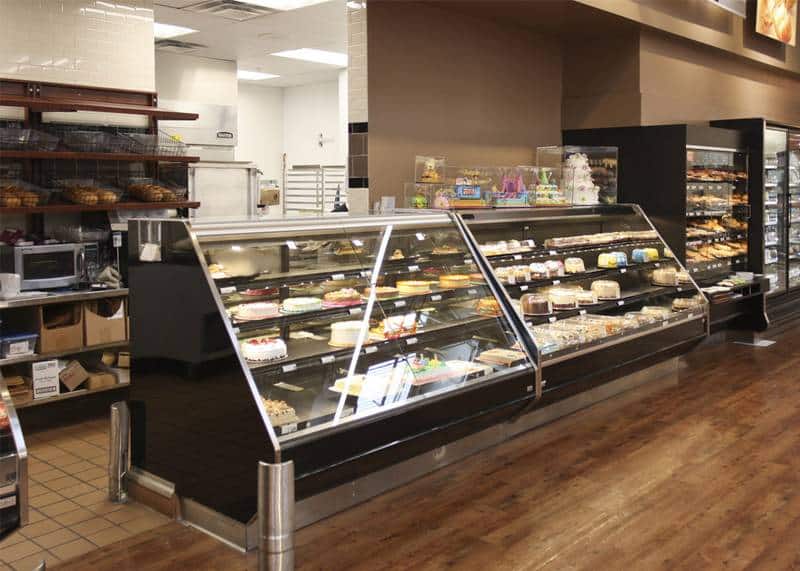

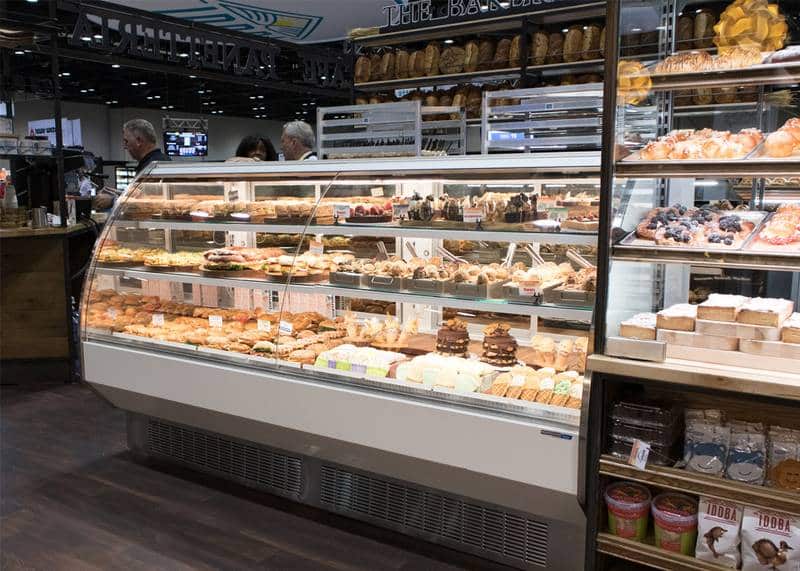

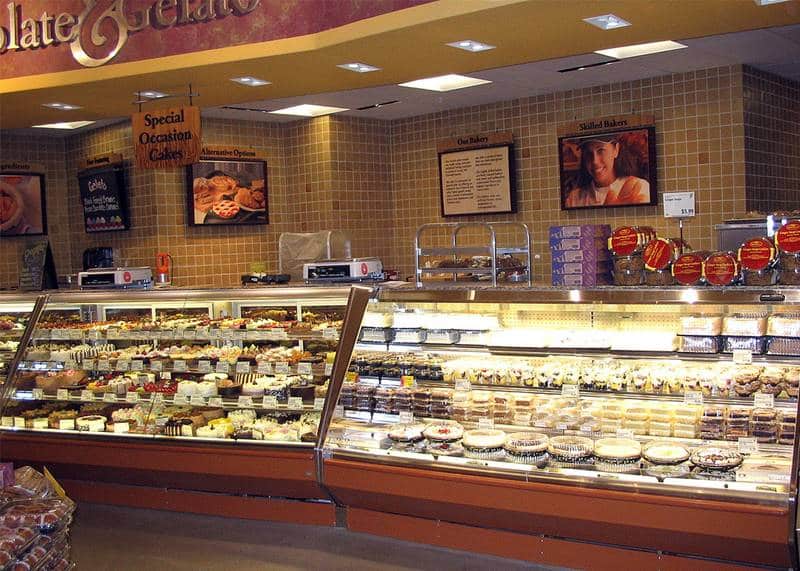

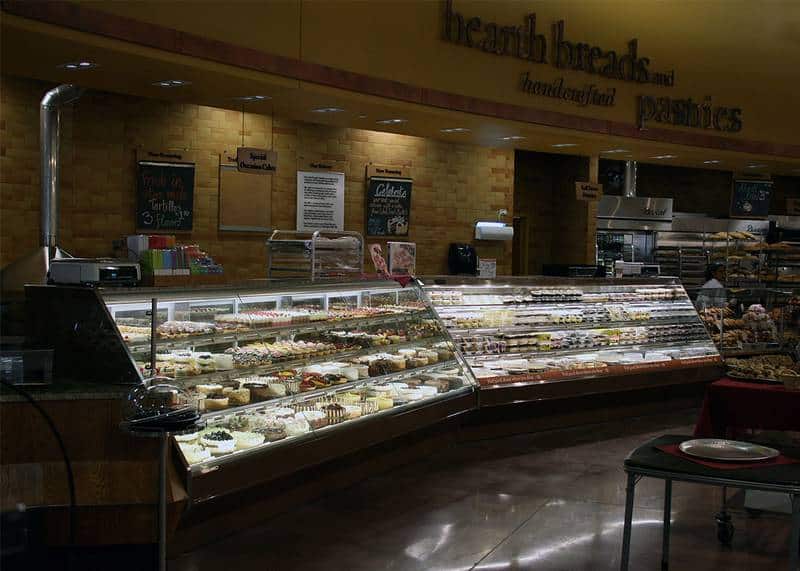

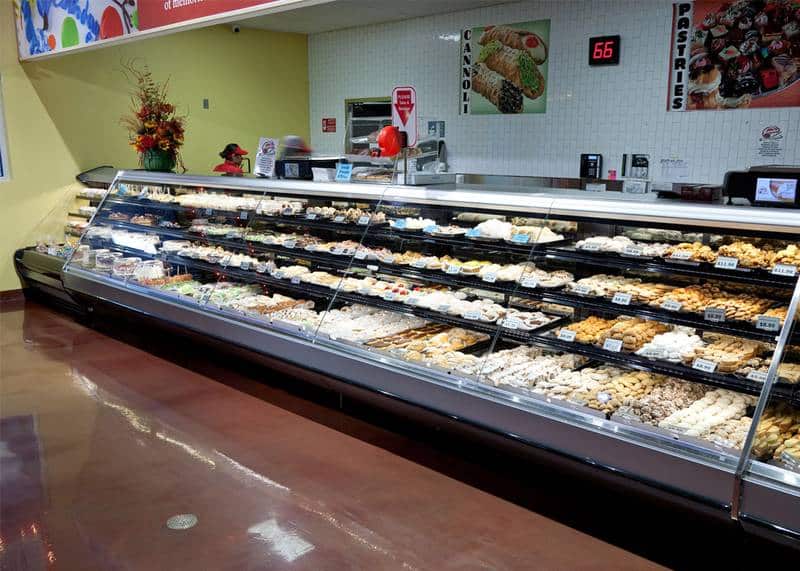

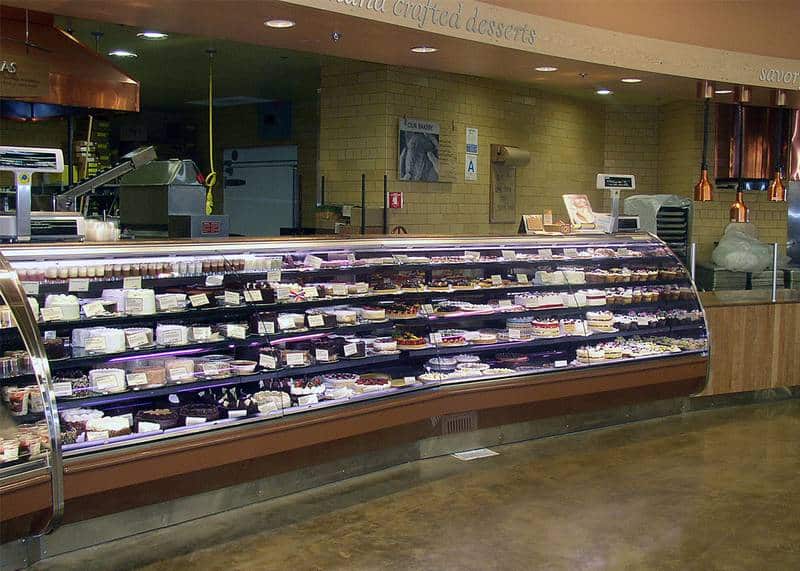

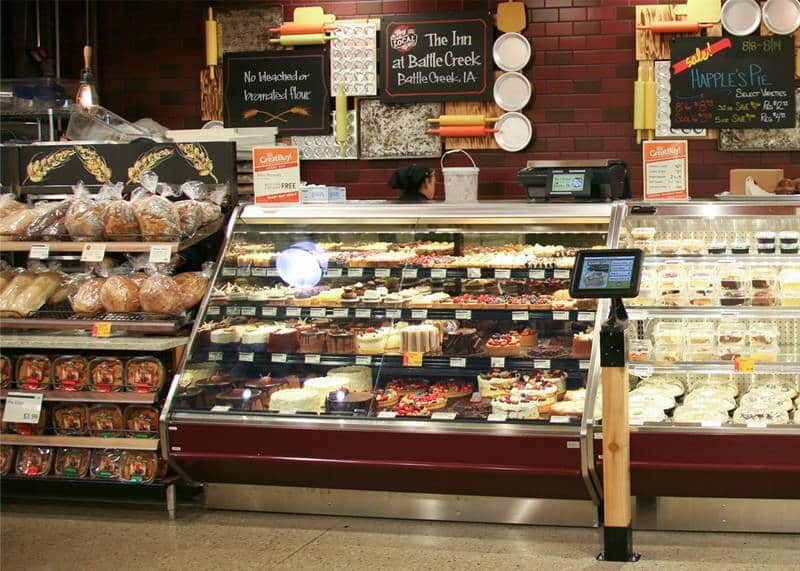

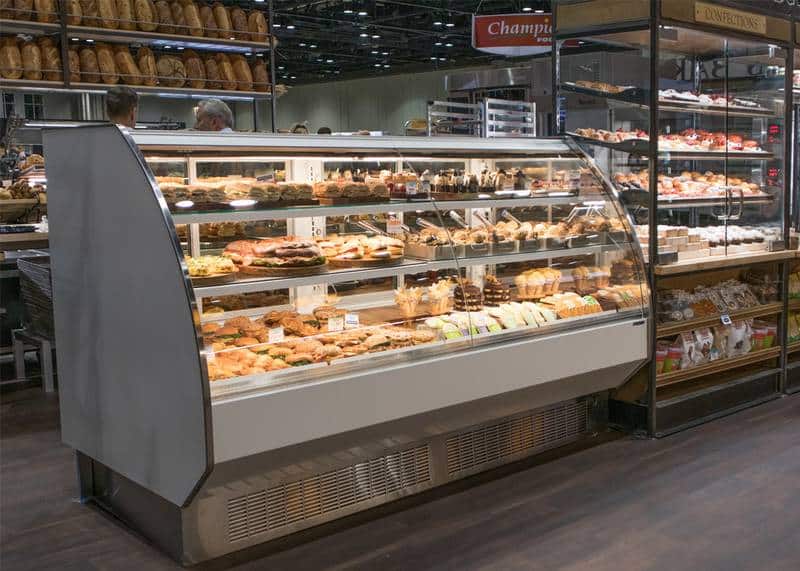

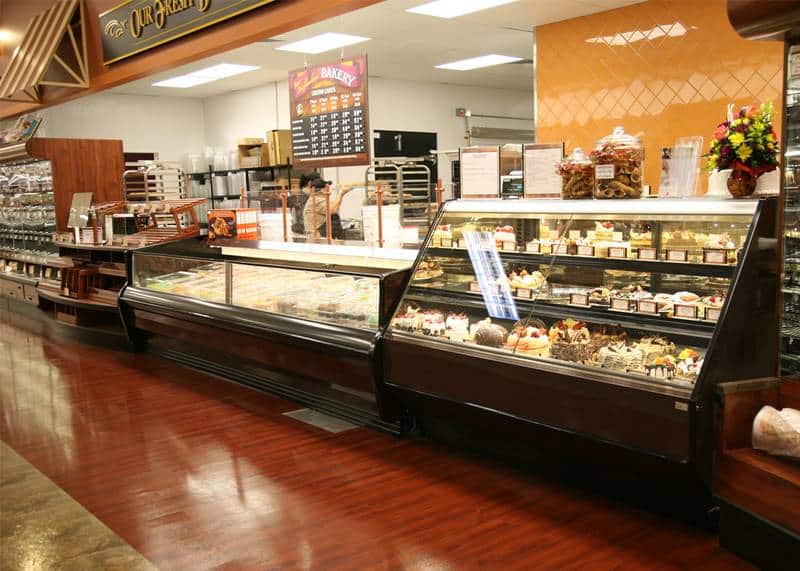

Hillphoenix BMD-R Bakery, Multi-Deck, Refrigerated Service Case. Designed for bakery applications with vertical, rear access for merchandising cakes and specialty bakery items. Available in various lengths with flat or curved, lift glass profiles. The front profile lines up with the BMD-R Deli, BMD-D, BMDH, and BMD-RG service cases and the PF and PT self-service cases for a continuous look.
Hillphoenix BMD-R Bakery, Multi-Deck, Refrigerated Service Case. Designed for bakery applications with vertical, rear access for merchandising cakes and specialty bakery items. Available in various lengths with flat or curved, lift glass profiles. The front profile lines up with the BMD-R Deli, BMD-D, BMDH, and BMD-RG service cases and the PF and PT self-service cases for a continuous look.

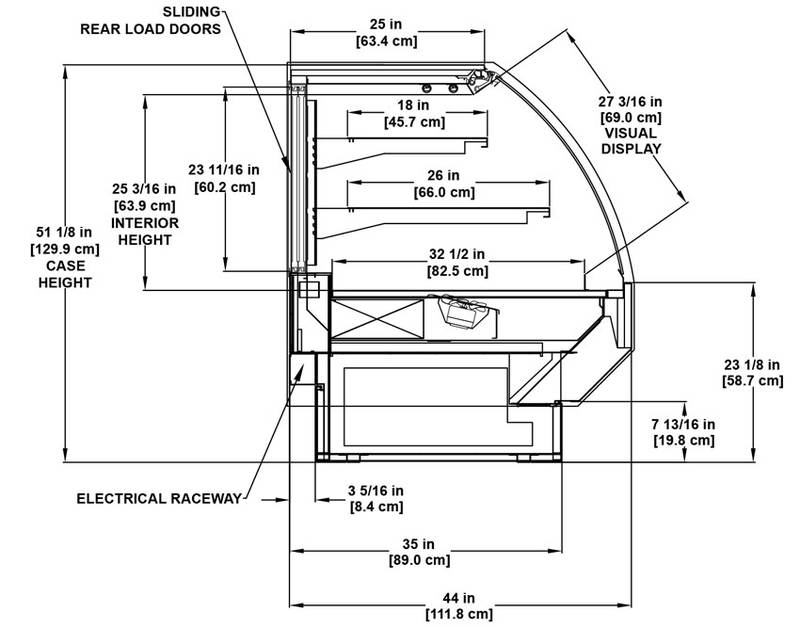

Please consult Hillphoenix Engineering Reference Manual for dimensions, plan views and technical specifications. Specifications subject to change without notice. Designed for optimal performance in store environments where temperature and humidity do not exceed 75°F and 55% R.H. Certified to UL 471, ANSI/NSF Standard 2,7,51 and CAN/CSA C22.2.
Service Multi-Deck Refrigerated
Hillphoenix BMD-R Bakery, Multi-Deck, Refrigerated Service Case. Designed for bakery applications with vertical, rear access for merchandising cakes and specialty bakery items. Available in various lengths with flat or curved, lift glass profiles. The front profile lines up with the BMD-R Deli, BMD-D, BMDH, and BMD-RG service cases and the PF and PT self-service cases for a continuous look.
Hillphoenix BMD-R Bakery, Multi-Deck, Refrigerated Service Case. Designed for bakery applications with vertical, rear access for merchandising cakes and specialty bakery items. Available in various lengths with flat or curved, lift glass profiles. The front profile lines up with the BMD-R Deli, BMD-D, BMDH, and BMD-RG service cases and the PF and PT self-service cases for a continuous look.
Features & Benefits
- Sled runner base construction.
- Straight back case design.

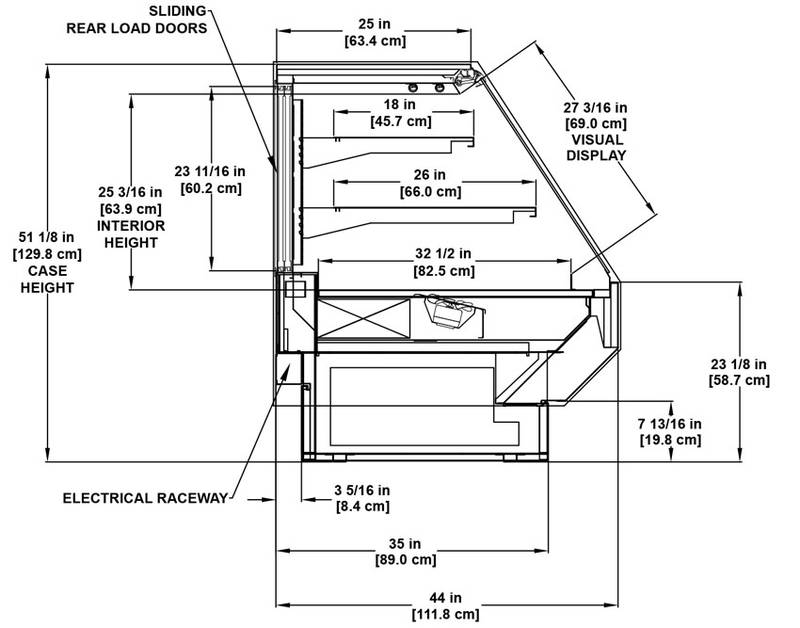

- Standard 51-1/8”H and 44”D.
- Standard 7-13/16” toekick.
- 45 degree front dieboard.
- Painted metal exterior.
- Stainless steel exterior trim.
- Stainless steel front, side, and rear base trim.
- Outside back and case top painted to match exterior.
- Reflective rear load doors with black frames.

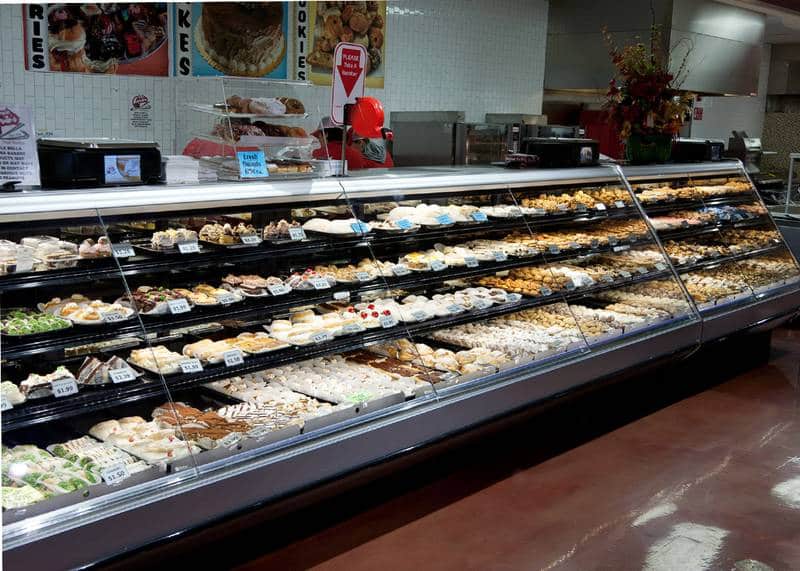

- Single-pane, flat regular-glare lift front glass.
- Black painted metal interior and trim.
- Clearvoyant® LED dual top lighting.
- Rear electrical raceway.
- Solar digital thermometer.
- Shelving: 18” and 26” fixed flat, adjustable glass shelving.
- Energy efficient fans.
- Remote DX refrigeration package.
Available Options
- Case heights available: 48” and 54”.
- Available lengths: 4’, 6’, 8’, 10', and 12’.
- Alternate toekick height include: 6-5/16”H.
- Bullet leg base with adjustable height toekick.
- Glass or solid laminated interior or mirror polished end panels.
- Exterior standard grade laminate.
- Interior or exterior stainless steel finish.
- Interior white or other custom color finish.
- Glass, white wire, or black or white painted metal shelving.
- Clearvoyant® LED undershelf lighting.
- Painted base and end panel trim.
- Stainless steel outside back finish.
- Swing rear load doors.
- Flat or curved non-glare glass or curved regular glare.
- Stainless steel, laminate, solid surface, or stone case top.
- Integrated case top integrated scale stand.
- Adjustable scale stand.
- Dedicated ISO per scale stand with optional pull wire(s).
- Wire or stainless steel shelving.
- Paper cutter (serrated or non-serrated)
- Rear fixed or flip up work boards.
- Cart bumper.
- Front electrical raceway.
- Remote glycol or CO2 refrigeration packages.
Attributes
- Alternate Heights: 48-1/8" or 54-1/8"
- Case Depth / Footprint: 44"
- Case Height Standard: 51-1/8"
- Case Length: 4’, 6’, 8’, 10', and 12
- Case Temp: Medium-Temp
- Case Type: Multi-Deck, Rear-Load, Remote, Service
- Department: Bakery
- Door Type: -
- Interior Depth: 31-3/8"
- Interior Height: 24-15/16"
- Other Models: Bakery - cakes, pastries, pies, donuts, rolls lines up with the BMD-D. ALSO consider the BLF series and SMD-R Bakery
- Product Type: Specialty Cases
- Refrigerated Volume: -
- Remote / Self-Contained: Remote
- Retail Types: Food Service, Mass Merchandise, Membership & Warehouse, Supermarket
Related Products
BMD-D
Hillphoenix BMD-D Multi-Deck, Dry Service Case. Designed for deli or bakery applications with up to two rows of shelves for…
SMD-R-Bakery
Hillphoenix SMD-R Bakery Multi-Deck, Refrigerated Display. Designed for bakery application with curved lift-up front glass and an option for flat…

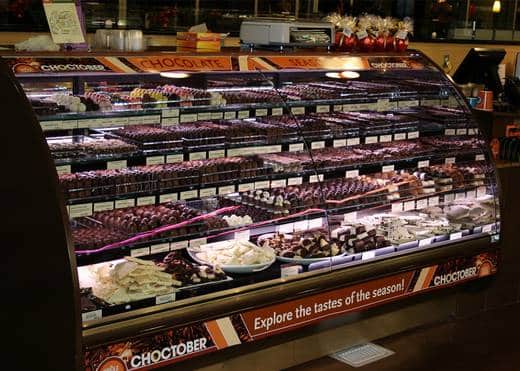

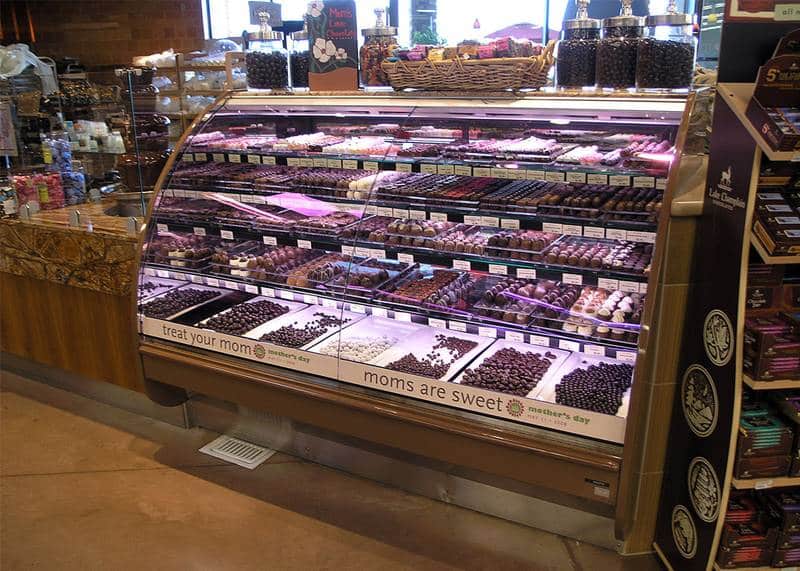

SMD-R-Candy
